Herb extractor and evaporator
Application:
This herb extractor is suitable for extracting component from herbs (leaves, root, flower or seed)like licorice, stevia, senna and so on and other botanical.It also can realize the solvent recovery and the essential oil collection and it is especially suitable for hospital, pharmaceutical factory, scientific research etc.

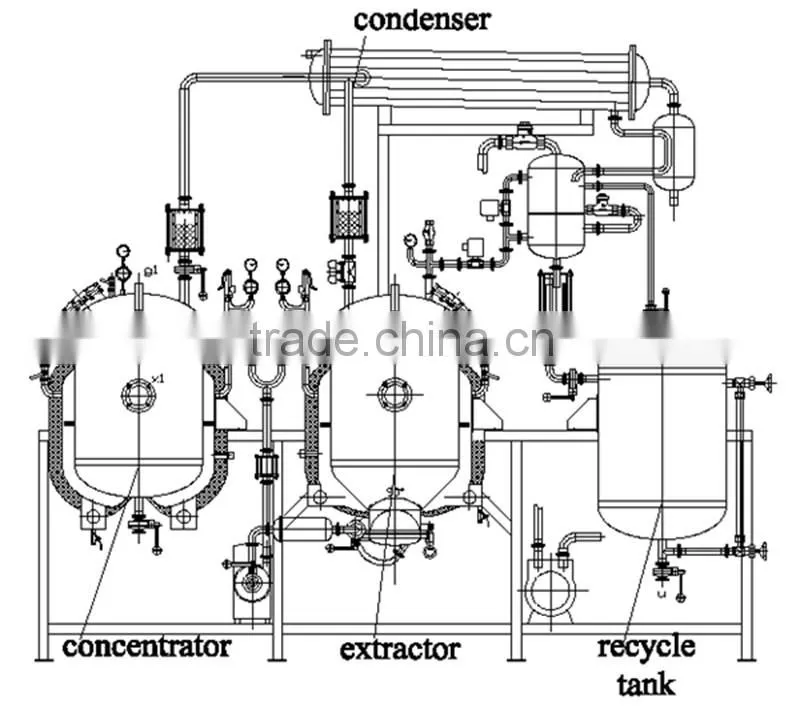

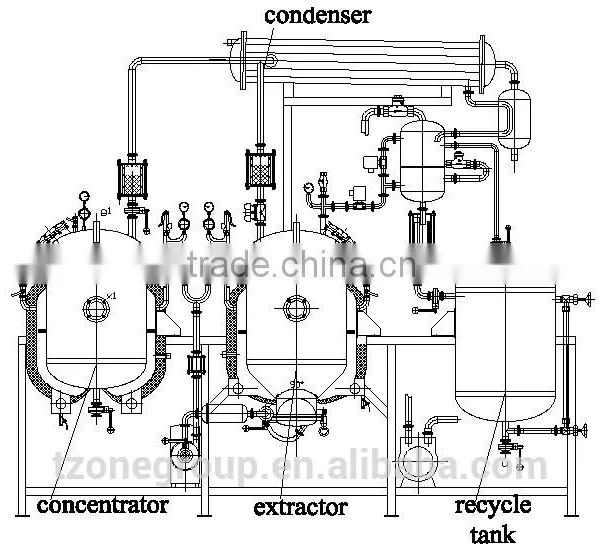

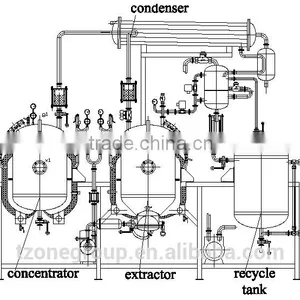

Structure Drawing:

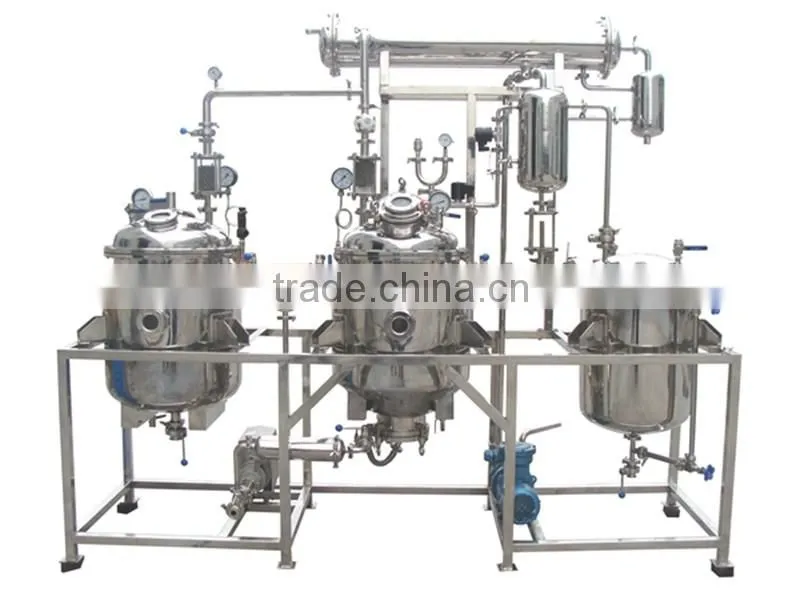

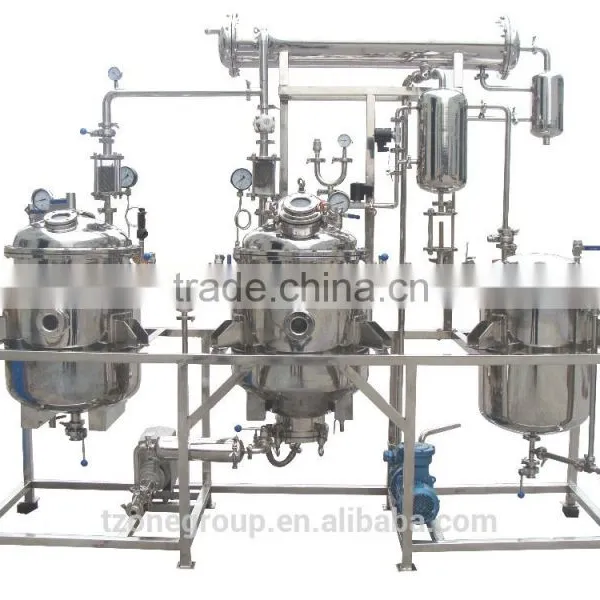

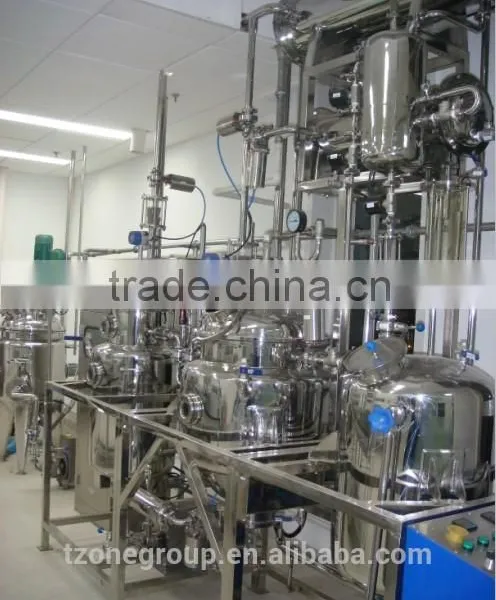

Structure: this herb extractor and concentrator include extractor, concentrator, receiver, condenser, cooler, pipes, valves, meters, water-oil separator, filter, vacuum pump, transfer pump, and so on.
Principle: first you put the herb (leaves, root, flower or seed )into extractor, add water or other solvent( like alcohol) into extractor. Then heat the extractor, the component from herb will dissolved into water or solvent, after extraction, then pump the extracted liquid into the concentrator, evaporate the water or solvent( like alcohol) which will be cooled by condenser and flow to receiver , the solvent can be used again next time. the component in concentrator will became into cream or liquid which you need.
Character: It is new type equipment at present, this equipment is specially suitable for medium pharmaceutical factory or small pharmaceutical factory, hospital, academe and so on. It is specially used for producing small quality but high quality herb.
2 it can be heat by steam or electric, if the customer have not steam boiler, they can heat the machine by electric.
3 save time: the extracting and concentration can be operated at the same time, so it save much time, before the concentration should be operated after extraction.
4 save energy: the steam from concentrator can heat the extractor directly so we can save 50% steam, so one year you can save money from steam which can buy one machine again.
5 the extraction or concentration can be operated under vacuum, if the herb is sensitive to high temperature, so it can be operated under vacuum, so the herb can not be burned by high temperature, second the solvent can be evaporating under lower temperature if the machine is working under vacuum, so it will save time and energy too.
6 all the machine have not dead corner, so it is good to clean and it is according GMP standard.
7 all surface of the machine is mirror polished, so it is looks very beautiful.
8 the temperature can be adjusted, you can adjust the temperature according to your requirement, for example you want to heat the machine 100degree, you just set the temperature 100degree, the heating can be stop when the temperature is 100degree, if it is lower 96degree, it can be heating again.
Parameter:
Model Items |
TD-20 |
TD-50 |
TD-100 |
TD-200 |
TD-300 |
TD-500 |
Extractor (L) |
20 |
50 |
100 |
200 |
300 |
500 |
evaporator(L) |
20 |
50 |
100 |
200 |
300 |
500 |
Working pressure in jacket |
<0.1Mpa |
|||||
Working pressure in pot(Mpa) |
Usual pressure or Negative pressure |
|||||
Extract Temperature(℃) |
40-100 |
|||||
Heat Medium |
Steam / Hot water/hot oil |
|||||
Vacuum pump model |
SK-0.4 |
2X-2.2KW |
2X-2.2KW |
2X-3KW |
2X-3KW |
2X-4KW |
Electric power(kw) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
0.55 |
Temperature scope |
0-200℃ |
|||||
Total electric power(kw) |
6+6 |
12+12 |
15+15 |
18+18 |
24+36 |
36+48 |
Material |
Stainless steel |
|||||
How much liter of this machine do you need?we have 50L 100L 200L 300L 500L 1000L .......10000L and so on
What way do you heat the machine? By electric or steam?
What is your raw material? Is it leaves, stem, Flower or root?
What last product do you want to get? Liquid? Cream or powder?
What material of the machine do you need? Stainless steel 304 or stainless steel 316, both are GMP requirement
When do you need this machine?
we design the machine according to your reuirement
we manufacture according to the drawing
we test the machine according to quality system
we pack the machine and load the machine according to international requirement
we service customer quickly
we train the customer to operate the machine until the operator can do
