DTWZ-D Vacuum Extraction And Evaporation Equipment
Application:
This herb extractor is suitable for extracting component from herbs (leaves, root, flower or seed)like licorice, stevia, senna and so on and other botanical.It also can realize the solvent recovery and the essential oil collection and it is especially suitable for hospital, pharmaceutical factory, scientific research etc.
Structure:
This herb extractor and evaporator include heater, evaporator, filter, recycle tank, extractor, condenser, cooler, pipes, valves, meters, water-oil separator, filter, vacuum pump, transfer pump and control box and so on.

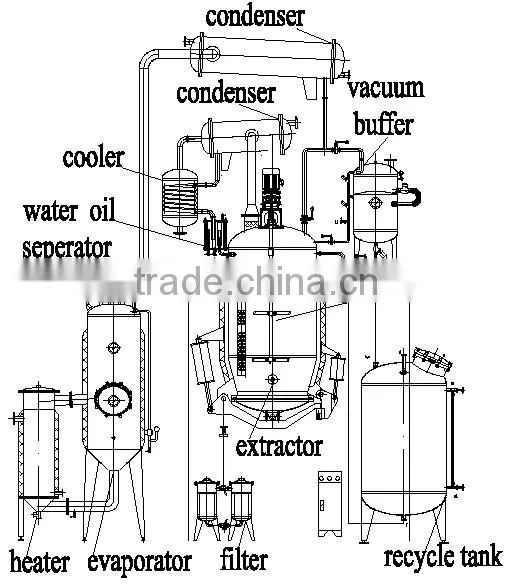

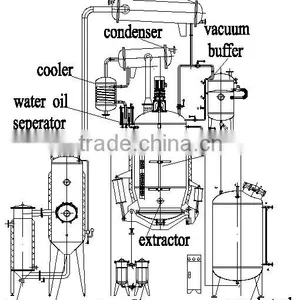

Structure Drawing:
Parameter:
Model |
DTWZ-D-1 |
DTWZ-D-2 |
DTWZ-D-3 |
DTWZ-D-6 |
DTWZ-D-10 |
Pressure in tank (Mpa) |
<0.1 |
||||
Pressure in jacket (Mpa) |
<0.25 |
||||
Diameter of manhole (MM) |
400 |
400 |
400 |
450 |
550 |
Heat area m² |
6 |
10 |
12 |
30 |
50 |
Condenser area m² |
10 |
20 |
30 |
60 |
120 |
Volume m3 |
1 |
2 |
3 |
6 |
10 |
|
Evaporate capacity kg/h |
300 |
700 |
1000 |
2000 |
3000 |
Principle:
First you put the herb (leaves, root, flower or seed )into extractor, add water or other solvent( like alcohol) into extractor. Then heat the extractor, the component from herb will dissolved into water or solvent, after extraction, then pump the extracted liquid into the evaporator, evaporate the water or solvent( like alcohol) which will be cooled by condenser and flow to recycle tank , the solvent can be used again next time. the component in evaporator will became into cream or liquid which you need.
Character:
1.It is new type equipment at present, this equipment is specially suitable for medium pharmaceutical factory or big pharmaceutical factory, hospital, academe and so on.
2.Save time: the extracting and concentration can be operated at the same time, so it save much time, before the concentration should be operated after extraction.
3.Save energy: the steam from evaporator can heat the extractor directly so we can save 30% steam, so one year you can save money from steam which can buy one machine again.
4.The extraction or concentration can be operated under vacuum, if the herb is sensitive to high temperature, so it can be operated under vacuum, so the herb can not be burned by high temperature, second the solvent can be evaporating under lower temperature if the machine is working under vacuum, so it will save time and energy too.
5. All the machine have not dead corner, so it is good to clean and it is according GMP standard.
6. All surface of the machine is mirror polished, so it is looks very beautiful.
7.The temperature can be adjusted, you can adjust the temperature according to your requirement, for example you want to heat the machine 100degree, you just set the temperature 100degree, the heating can be stop when the temperature is 100degree, if it is lower 96degree, it can be heating again.
Order requirement:
1.How much liter of this machine do you need? We have 1000, 2000L,3000L,6000L, 10000L and so on.
2 .What is your raw material? Is it leaves, stem, Flower or root?
3. What last product do you want to get? Liquid? Cream or powder?
4. What material of the machine do you need? Stainless steel 304 or stainless steel 316, both are GMP requirement.
5 .When do you need this machine?
User demands analysis
Engineering design
Product manufacturing
Automatic control integration
Certification service
Engineers are available to go abroad to help installation
All the products before delivery should be tested by assemble & debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack.
The foot margin of equipment fixed tightly to make the machine can experience loading & uploading, the upward mark will be posted on the wooden case.
Our company is professional to manufacture and export pharmaceutical machine, food machine. Machines include:
Pharmaceutical machine:
Tablet press machine, blister packing machine, capsule filling machine, capsule / tablet counting production line, soft capsule making machine, mixing machine.
Liquid filling machine:
Vial filling machine, ampoule filing machine, wrapping machine, tube filling and sealing machine.
Food machine:
Jam, butter, chocolate packing machine, food tablet press machine and so on.
Export:
Machines have exported to South America, Europe, South-east Asia, and so on.
Welcome to contact with us.
