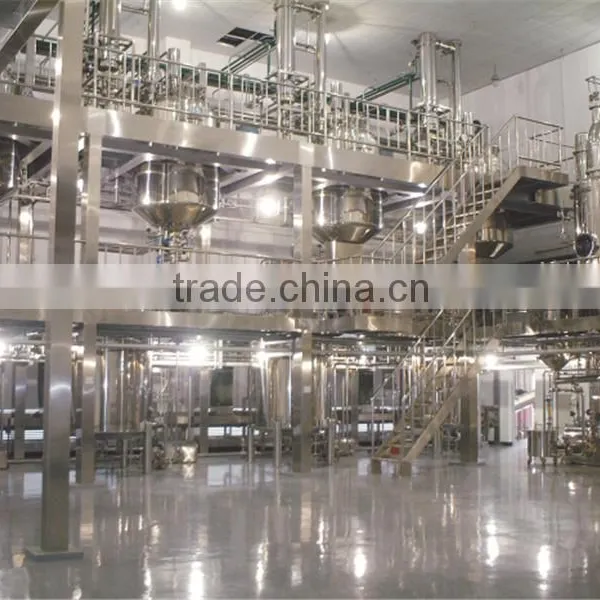

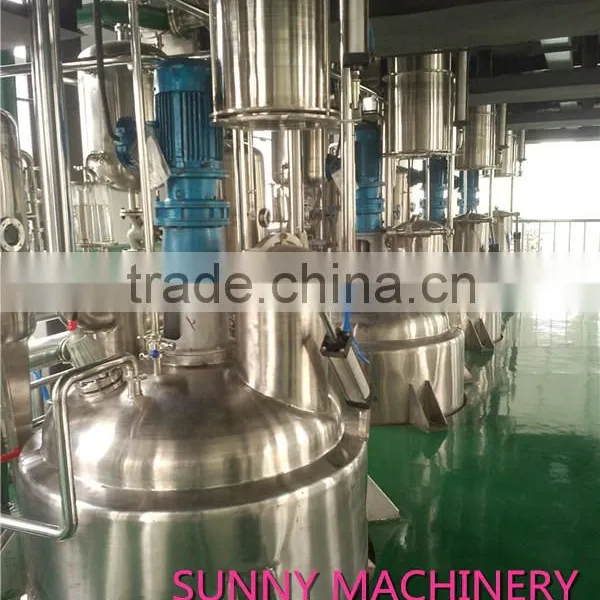

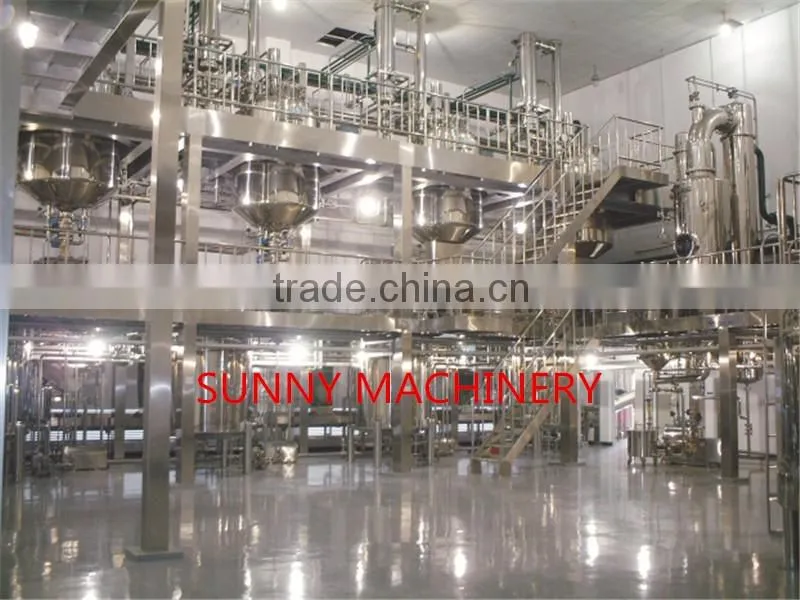

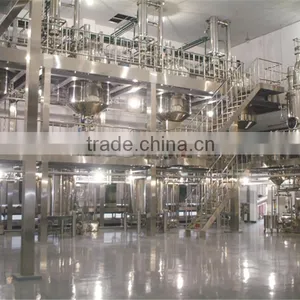

solvent herb extraction project for carotene and seaweed
- 100 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- seamless softgel capsule machine for the beads and aroma mini ball production
- Latest AI Algorithm High Efficiency Visual Inspection Machine Equipment for Glass and PET Plastic Bottles Preforms
- Advanced High Efficiency AI Visual Quality Analyzer for Grains and Nuts Classification Grading machine
- Factory Price High Efficiency AI Visual Inspection Machine for Caps Defects Detection
- High Precision Automatic AI Vision Defect Inspection Machine for Plastic PET PP PE Bottles
- Automatic High Speed AI Visual Inspection Machine for Defects Food and Beverage Package
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | SUNNY | Model Number: | LINE |
Application: | Liquid | Type: | Extractor | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Application:
This herb extractor is suitable for extracting component from herbs (leaves, root, flower or seed)like licorice, stevia, senna and so on and other botanical.It also can realize the solvent recovery and the essential oil collection and it is especially suitable for hospital, pharmaceutical factory, scientific research etc.
Raw material
Structure: this herb extractor and evaporator include heater, evaporator, filter, recycle tank, extractor, condenser, cooler, pipes, valves, meters, water-oil separator, filter, vacuum pump, transfer pump and control box and so on.
Principle: first you put the herb (leaves, root, flower or seed )into extractor, add water or other solvent( like alcohol) into extractor. Then heat the extractor, the component from herb will dissolved into water or solvent, after extraction, then pump the extracted liquid into the evaporator, evaporate the water or solvent( like alcohol) which will be cooled by condenser and flow to recycle tank , the solvent can be used again next time. the component in evaporator will became into cream or liquid which you need.
Character: It is new type equipment at present, this equipment is specially suitable for medium pharmaceutical factory or big pharmaceutical factory, hospital, academe and so on.
2 save time: the extracting and concentration can be operated at the same time, so it save much time, before the concentration should be operated after extraction.
3 save energy: the steam from evaporator can heat the extractor directly so we can save 30% steam, so one year you can save money from steam which can buy one machine again.
4 the extraction or concentration can be operated under vacuum, if the herb is sensitive to high temperature, so it can be operated under vacuum, so the herb can not be burned by high temperature, second the solvent can be evaporating under lower temperature if the machine is working under vacuum, so it will save time and energy too.
5 all the machine have not dead corner, so it is good to clean and it is according GMP standard.
6 all surface of the machine is mirror polished, so it is looks very beautiful.
7 the temperature can be adjusted, you can adjust the temperature according to your requirement, for example you want to heat the machine 100degree, you just set the temperature 100degree, the heating can be stop when the temperature is 100degree, if it is lower 96degree, it can be heating again.
Parameter
Model | DTWZ-D-1 | DTWZ-D-2 | DTWZ-D-3 | DTWZ-D-6 | DTWZ-D-10 |
Pressure in tank (Mpa) | <0.1 | ||||
Pressure in jacket (Mpa) | <0.25 | ||||
Diameter of manhole (MM) |
400 |
400 |
400 |
450 |
550 |
Heat area | 6 | 10 | 12 | 30 | 50 |
Condenser area | 10 | 20 | 30 | 60 | 120 |
Volume | 1 | 2 | 3 | 6 | 10 |
Evaporate capacity | 300 | 700 | 1000 | 2000 | 3000 |
what is your raw mateial
what solvent do you extract the machine
what the volume of the machine do you need
when do you plant to buy this machine
we design the line for you
engineer is availabe to install the machine and test the machine for you
