Power Factor Correction of Induction Motor
US$ 2,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
Zhongsheng
Model Number:
SMPC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Phase Advancer for Induction MotorUS$ 5,000 - 5,000MOQ: 1 Set -
Liquid Resistance Starter for Slip Ring MotorNegotiableMOQ: 1 Set
-
Liquid Resistance Soft Starter for Squirrrel Cage Induction MotorNegotiableMOQ: 1 Set
-
Solid State Soft Starter for Asynchronous Squirrel-cage MotorNegotiableMOQ: 1 Set
-
Slip Ring Motor StarterNegotiableMOQ: 1 Set
Place of Origin
Hubei, China
Brand Name
Zhongsheng
Model Number
SMPC
Product Description
| Product name | SMPC series power factor correction of induction motor | |||

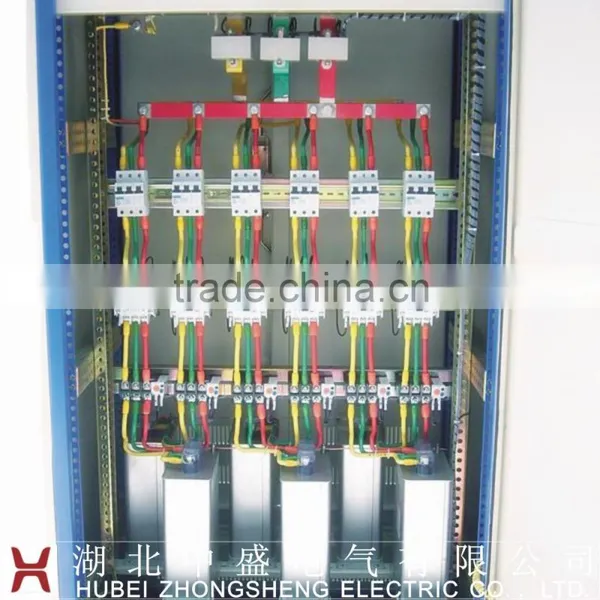

| Working principle | SMPC series power factor correction of induction motor is an individual motor compensation unit, which is recommended where the motor power (kVA) is large with respect to the declared power of the installation. The unit is installed at or near motor, and supply the reactive or magnetizing current required to operate it. | |||
| Model no. | Rated capacity (Kvar) | Size (mm) | ||
| Width | Depth | Height | ||
| SMPC-100/X | 100 | 1000 | 1200 | 2300 / 2650 |
| SMPC-150/X | 150 | 1000 | 1200 | 2300 / 2650 |
| SMPC-200/X | 200 | 1000 | 1200 | 2300 / 2650 |
| SMPC-250/X | 250 | 1200 | 1200 | 2300 / 2650 |
| SMPC-300/X | 300 | 1200 | 1200 | 2300 / 2650 |
| SMPC-350/X | 350 | 1200 | 1200 | 2300 / 2650 |
| SMPC-400/X | 400 | 1200 | 1500 | 2300 / 2650 |
| SMPC-450/X | 450 | 1200 | 1500 | 2300 / 2650 |
| SMPC-500/X | 500 | 1200 | 1500 | 2300 / 2650 |
| Notice | X: rated voltage | |||
| Features | 1. High quality discharge devices are installed inside the unit, and residual voltage can be reduced to 50V in 5 minutes when the unit is separated from power system. | |||
| 2. With short circuit protection to ensure the safe operation of the unit. | ||||
| 3. Simple and reliable structure. Easy installation and maintenance. | ||||
| Service condition | 1. Ambient temperature: -10℃ ~ +40℃. | |||
| 2. Relative humidity: Less than 85%, non-condensation. | ||||
| 3. Altitude: Less than 1000m. (more than 1000m should be with special design.) | ||||
| 4. Installation site: Indoor service. Vertical inclination shall be less than 5 degree. No fire hazard, explossion risk, conductive dust, corrosive gas and strong vibration exist. | ||||
| Ordering Instructions | Please providing following information when you place the order: | |||
| 1. Harmonics will affect the performance of the unit. If the electrical system has harmonics, please give us the details of harmonic frequencies. | ||||
| 2. Confirm natural power factor and target power factor. | ||||
| 3. Any special requirements, such as outdoor installation, please consult with our company. | ||||
| 4. This power factor correction is working with switchgear, if you don't have switchgear, you can order the unit together with switchgear from us. | ||||
| 5. If you want to improve the starting performance of your induction motor, you can order soft starter from us. | ||||
