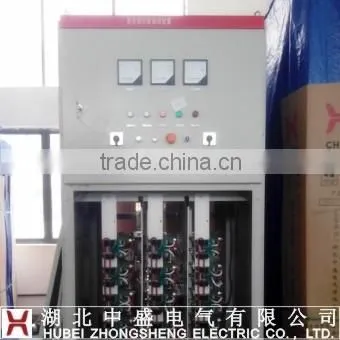

Solid State Soft Starter for Asynchronous Squirrel-cage Motor
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
zhongsheng
Model Number:
SGQ
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Wuhan Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Slip Ring Motor StarterNegotiableMOQ: 1 Set -
SCF Series Electronic Motor Frequency Converter Speed ControllerNegotiableMOQ: 1 Set
-
SCF Intelligent Dc/ac Power Frequency InverterNegotiableMOQ: 1 Set
-
China Manufacture Solid Soft Starter 55kw to 15000kw Under 10kvNegotiableMOQ: 1 Set
-
SYQ Three Phase AC 0.38kv~10kv Slip Ring Motor Liquid Soft StarterNegotiableMOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
zhongsheng
Model Number
SGQ
Product Description
| Product Name | Solid state soft starter for asynchronous squirrel-cage motor | |||
| Voltage: 10KV | ||||
| Model No. | Motor Power (KW) | Dimensions in mm | ||
| Width | Depth | Height | ||
| SGQH-500/10 | less than 500KW | 1000 | 1500 | 2300 |
| SGQH-1000/10 | less than 1000KW | 1000 | 1500 | 2300 |
| SGQH-1500/10 | less than 1500KW | 1000 | 1500 | 2300 |
| SGQH-2000/10 | less than 2000KW | 1000 | 1500 | 2300 |
| SGQH-3000/10 | less than 3000KW | 1400 | 1600 | 2300 |
| SGQH-4000/10 | less than 4000KW | 1400 | 1600 | 2300 |
| SGQH-5000/10 | less than 5000KW | 1400 | 1600 | 2300 |
| SGQH-6000/10 | less than 6000KW | 1400 | 1600 | 2300 |
| SGQH-7000/10 | less than 7000KW | 1600 | 1600 | 2300 |
| SGQH-8000/10 | less than 8000KW | 1600 | 1600 | 2300 |
| SGQH-9000/10 | less than 9000KW | 1600 | 1600 | 2300 |
| SGQH-10000/10 | less than 10000KW | 1600 | 1600 | 2300 |
| SGQH-X/10 | more than 10000KW | Special designed according to technical requirements. | ||
| Voltage: 6KV | ||||
| Model No. | Motor Power (KW) | Dimensions in mm | ||
| Width | Depth | Height | ||
| SGQH-500/6 | less than 500KW | 1000 | 1500 | 2300 |
| SGQH-1000/6 | less than 1000KW | 1000 | 1500 | 2300 |
| SGQH-1500/6 | less than 1500KW | 1400 | 1500 | 2300 |
| SGQH-2000/6 | less than 2000KW | 1400 | 1500 | 2300 |
| SGQH-3000/6 | less than 3000KW | 1400 | 1600 | 2300 |
| SGQH-4000/6 | less than 4000KW | 1600 | 1600 | 2300 |
| SGQH-5000/6 | less than 5000KW | 1600 | 1600 | 2300 |
| Voltage: 0.4KV | ||||
| Model No. | Motor Power (KW) | Dimensions in mm | ||
| Width | Depth | Height | ||
| SGQL-X/0.4 | 55KV - 315KV | 600 | 600 | 1800 |
| SGQL-Y/0.4 | 400KV - 630KV | 800 | 800 | 2000 |
| Description | ||||
| Solid state soft starter is used for power ratings up to 10MW and voltage up to 10KV asynchronous squirrel-cage motor. | ||||
| Features | ||||
| 1. Starting time: 0-100 seconds, can be programmed. | ||||
| 2. Starting voltage: 20%- 70% of rated voltage, can be programmed. | ||||
| 3. Starting current: according to the motor power, can be programmed. | ||||
| Service condition | ||||
| 1. Ambient temperature: -10℃ ~ +40℃. | ||||
| 2. Relative humidity: no more than 85%, non condensing. | ||||
| 3. Altitude: low voltage no more than 2000m, and high voltage no more than 1000m. | ||||
| 4. Installation site: Vertical inclination shall be no more than 5 degree. No fire hazard, explosion risk, conductive dust, corrosive gas and strong vibration exist. | ||||
| Application | ||||
| The solid state soft starter has been specifically designed for controlling starting of asynchronous squirrel-cage motors in arduous applications in a variety of industries such as metallurgy, oil, chemical, water conservancy, coal, automobile, etc. | ||||
| Ordering instructions | ||||
| Please providing following information when you place the order: | ||||
| 1. The motor specification, rated power, rated voltage, rated current etc. | ||||
| 2. Features of the equipment driven by the motor. | ||||
| 3. And special requirement, please consult with our company. | ||||

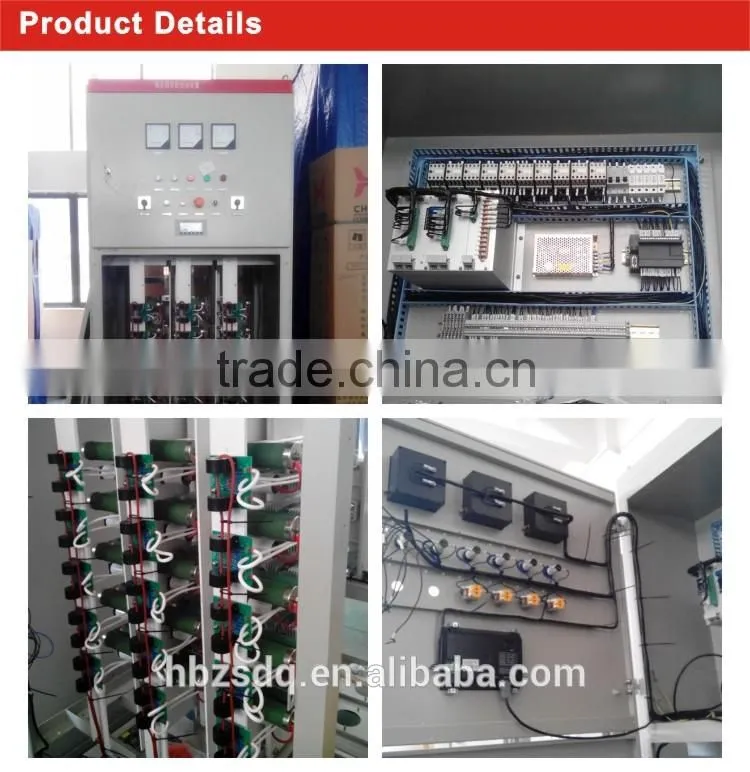

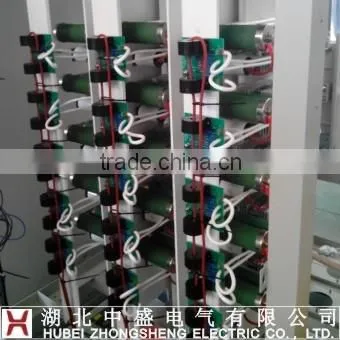

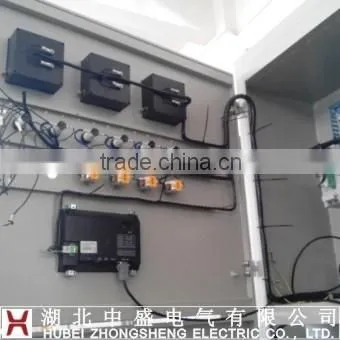

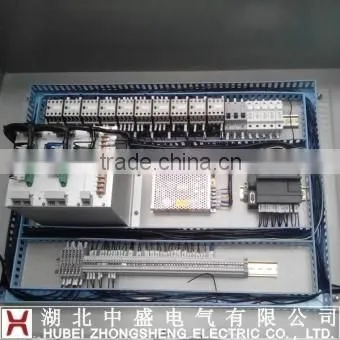

Picture of product
