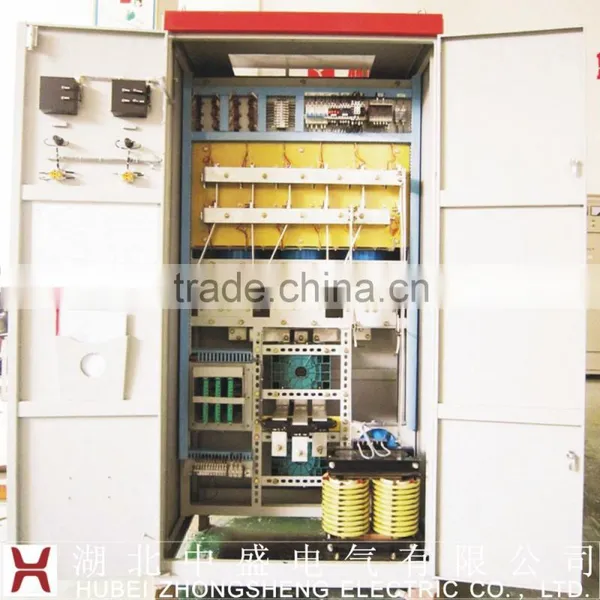

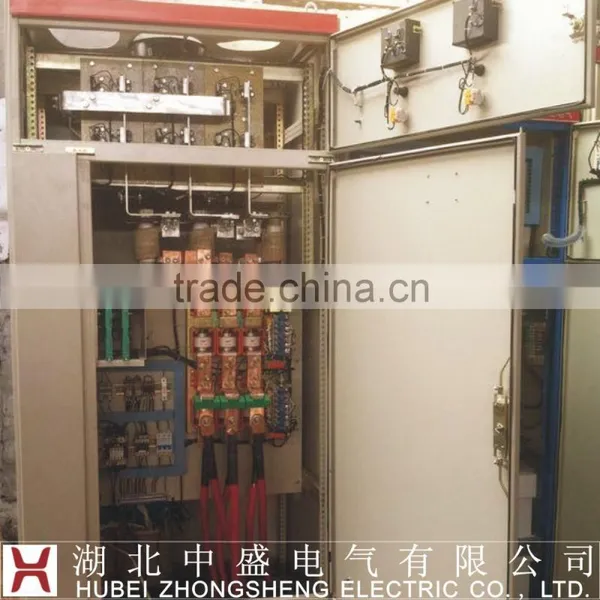

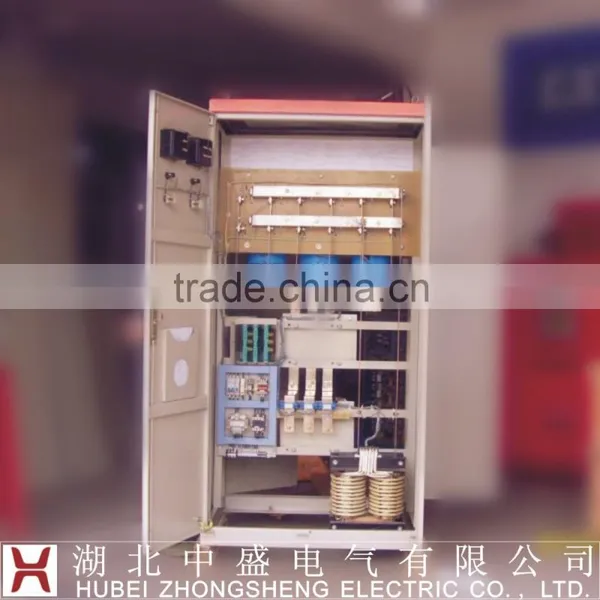

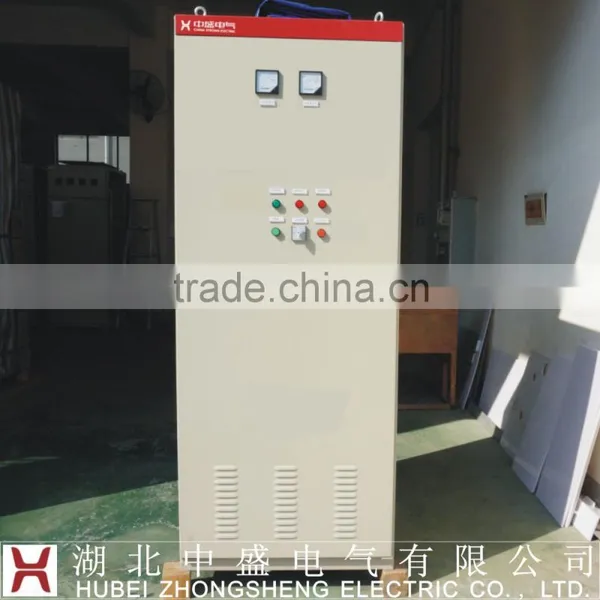

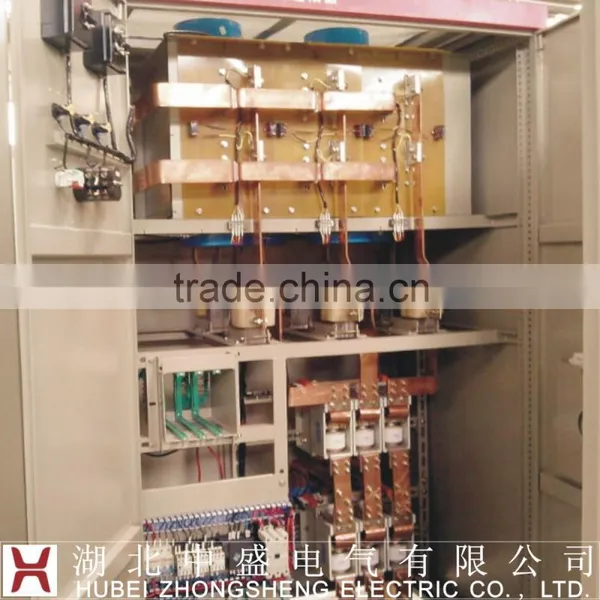

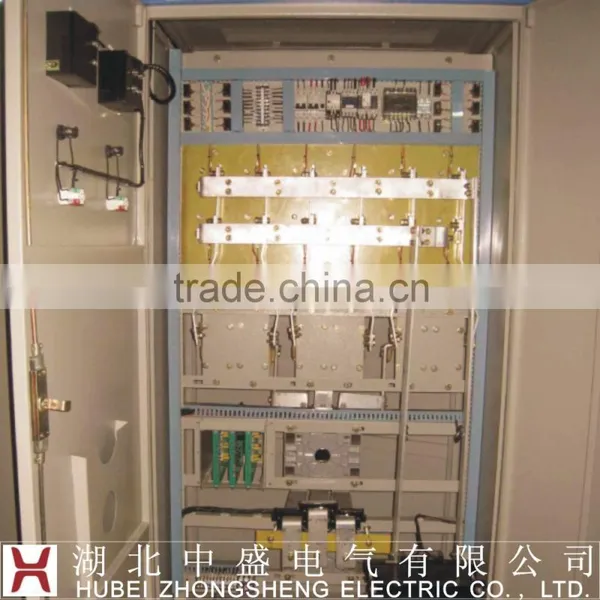

Phase Advancer for Induction Motor
US$ 5,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
Zhongsheng
Model Number:
SMS
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Liquid Resistance Starter for Slip Ring MotorNegotiableMOQ: 1 Set -
Liquid Resistance Soft Starter for Squirrrel Cage Induction MotorNegotiableMOQ: 1 Set
-
Solid State Soft Starter for Asynchronous Squirrel-cage MotorNegotiableMOQ: 1 Set
-
Slip Ring Motor StarterNegotiableMOQ: 1 Set
-
SCF Series Electronic Motor Frequency Converter Speed ControllerNegotiableMOQ: 1 Set
Place of Origin
Hubei, China
Brand Name
Zhongsheng
Model Number
SMS
Product Description
| Product name | SMS series phase advancer for induction motor | ||||
| Working principle | SMS series phase advancer for induction motor is a high-tech device for improving the power factor of medium and large slip ring motor. The low power factor of a slip ring motor is due to the fact that its stator winding draws more current for excitation which lags the supply voltage. The device is connected in the rotor circuit of the motor to provide exciting ampere turns at slip frequency, then the stator winding will be relieved of exciting current and the power factor of the motor can be improved. | ||||
| Applied motor | Three phase AC slip ring motor | ||||
| Stator voltage: 0.38KV to 11KV | |||||
| Model no. | Applied motor | Size | |||
| Rotor current (A) | Rated power (KW) | Width | Depth | Height | |
| SMSX-400 | ≤ 400 | 75 ~ 800 | 900 | 800 | 2000 |
| SMSX-500 | ≤ 500 | 220 ~ 1000 | 900 | 800 | 2000 |
| SMSX-600 | ≤ 600 | 315 ~ 1250 | 900 | 800 | 2000 |
| SMSX-800 | ≤ 800 | 630 ~ 1600 | 1200 | 900 | 2200 |
| SMSX-1000 | ≤ 1000 | 1000 ~ 2000 | 1200 | 900 | 2200 |
| SMSX-1200 | ≤ 1200 | 1600 ~ 2500 | 1200 | 900 | 2200 |
| SMSX-1500 | ≤ 1500 | 2000 ~ 3500 | 1400 | 1100 | 2200 |
| SMSX-Y | > 1500 | Special designed according to technical requirements. | |||
| Notice | X: 1=Nonjustable; 2=Adjustable | ||||
| Y: Rotor current (A) | |||||
| Features | 1. Improve power factor of motor and power network, the power factor of motor stator side can be improved up more than 0.9. | ||||
| 2. High compensation efficiency: When motor is rated loaded, the stator current is decreased by 10% ~ 20%. When motor is no-load, the stator current is decreased by more than 60%. | |||||
| 3. Lower power consumption and temperature increase: Motor torque is the same, but current is decreased. The lower the load rate, the better the energy saving effect. | |||||
| 4. Great protection function, even the device failed to start up, it doesn't effect the motor's normal performance. | |||||
| Service condition | 1. Ambient temperature: -10℃ ~ +40℃. | ||||
| 2. Relative humidity: Less than 85%, non-condensation. | |||||
| 3. Altitude: Less than 2000m. (more than 2000m should be with special design.) | |||||
| 4. Installation site: Indoor service. Vertical inclination shall be less than 5 degree. No fire hazard, explossion risk, conductive dust, corrosive gas and strong vibration exist. | |||||
| Ordering instructions | Please providing following information when you place the order: | ||||
| 1. Give us the motor specification: rated power, rotor voltage, rotor current,stator voltage, stator current, etc. | |||||
| 2. Features of the equipment driven by the motor, such as fan, pump, compressor, elevator, crusher, ball mill, etc. | |||||
| 3. Any special requirements, such as outdoor installation, please consult with our company. | |||||
| 4. This phase advancer is working with switchgear, if you don't have switchgear, you can order the phase advancer together with switchgear from us. | |||||
| 5. If you want to improve the starting performance of your slip ring motor, you can order soft starter from us. | |||||
