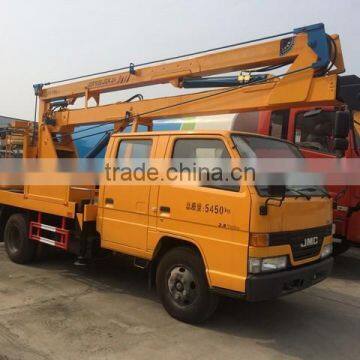

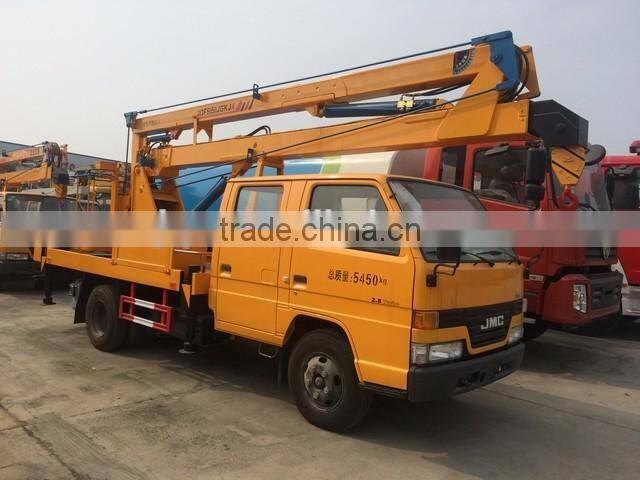

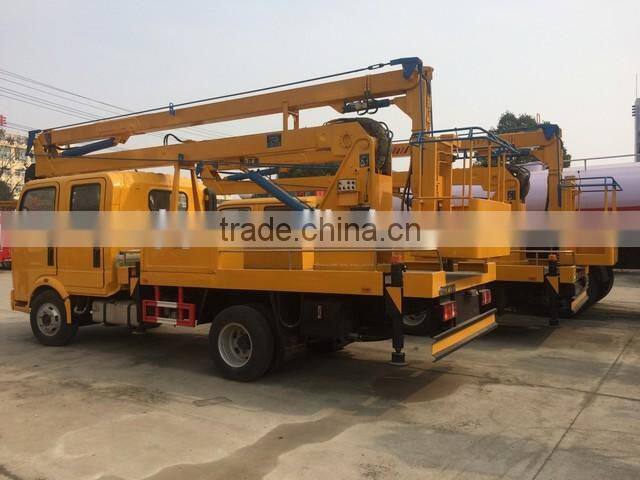

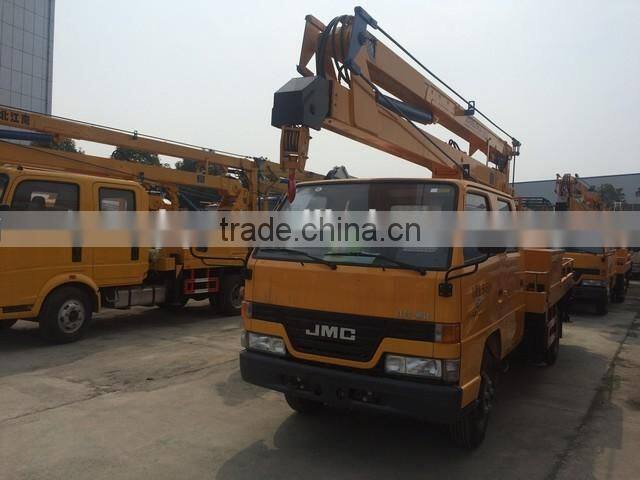

brand new 16m high altitude working truck,aerial operation vehicle
Our company is a professional AERIAL WORK PLATFORM TRUCK manufacturer for 10 years.
We can provide aerial work platform truck from 8m to 24m.
Any questions,contact me without hesitation on 135-9782-6887.
Product functional features
1.Choose International well-known chassis like Dongfeng,Howo,Auman,JMC,JAC,etc.
2.Operating height 8m-24m with hydraulic lifter
3.Euro 4 emission standard
4.Choose import exchange direction valve so that it can be smooth and steady when it exchange
direction.Overload protection, safe self-locking cylinder,the system set up overload valve,hydraulic
exceed value,automatically uninstall.

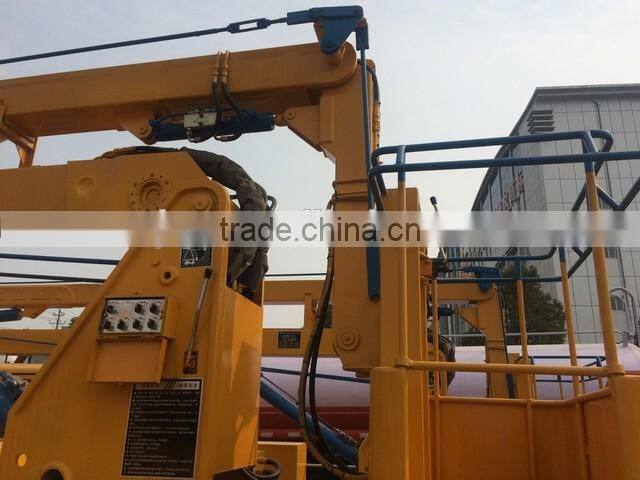

5.Both upper and lower exchange platform can be operated.
6.Arm shaft compact,flexible and large operating range.
7.Supporter shelf and arm interlock,safe and reliable,to prevent miss operation.

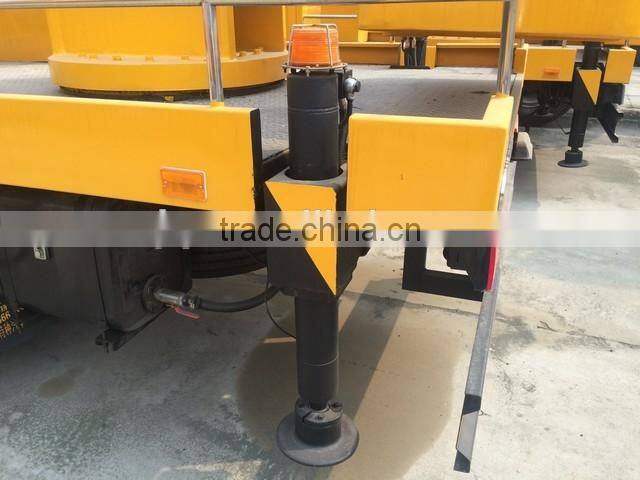

8.H type shelf which has large span and good stability.It can be stretch out and draw back both
independence and interaction.The legs are shown for job profile, light alarm signal is issued.
9.Operation platform automatic leveling,external rod forced balance.
10.1.5 tons litfing hook(stretch out and draw back range 800-1000mm)
11.Current rate speed controlled system, manual transmission,smooth and stable operation and
the current controlled system can be installed both onearth as wireless remote control system.
Product description
| Vehicle main technical information: | ||
| Product Name | JMC 16m high altitude working truck | |
| Product Model | JDF5060JGKJ4 | |
| Overall size(L*W*H) | 7600×1990×2995mm | |
| Gross weight | 5505kgs | |
| Rated capacity | / | |
| Curb weight | 5180kgs | |
| Approaching/Departure Angle | 27/14(°) | |
| Front/Rear suspension | 1015/1885mm | |
| Max.speed | 95km/h | |
| Chassis Parameters: | ||
| Chassis Brand | JMC | |
| Chassis model | JX1060TSG24 | |
| Drive type | 4*2 | |
| Fuel Type | Diesel | |
| Tire Specification | 7.00R16LT | |
| Tire No. | 6 | |
| Wheelbase | 3360mm | |
| Alex No. | 2 | |
| Leaf Spring No. | 7/5+5 | |
| Front trend | 1385mm | |
| Rear trend | 1425mm | |
| Passengers in cab | 3 | |
| Axle loading | 1830/4005 | |
| Engine Parameters: | ||
| Manufacturer | Jiangling Automobile Co.,Ltd. | |
| Model | JX493ZLQ4 | |
| Horse Power | 109HP | |
| Displacement/Power | 2771ml/80kw | |
| Emission standard | Euro 4 | |
Special function
| Special function | ||
| Max.operating height | 16m | |

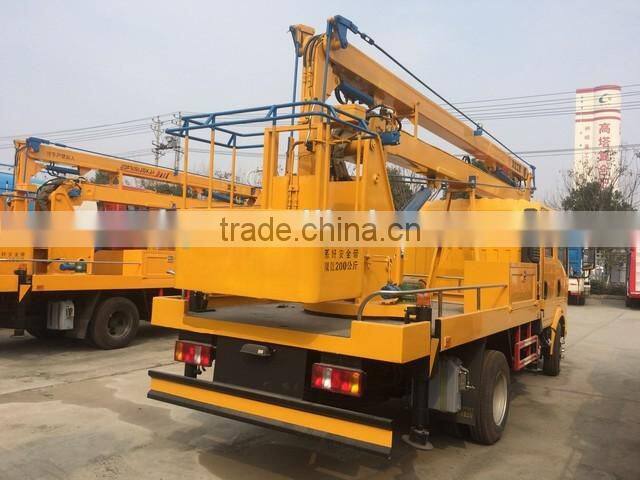

| Rated loading of working bucket | 200kgs | |
| Max.operating range | 7m | |
| Rotary angle | 360° | |

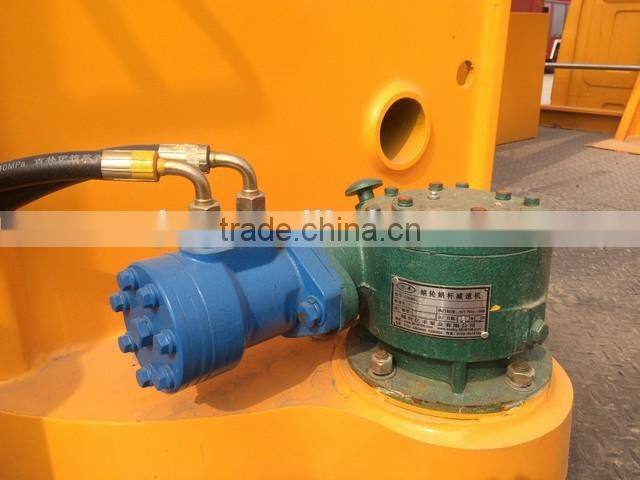

| Rotary speed | ≤180°/min | |
| Extendable speed | 0.15-0.20m/s | |
| Rated lifting weight | 1500kgs | |

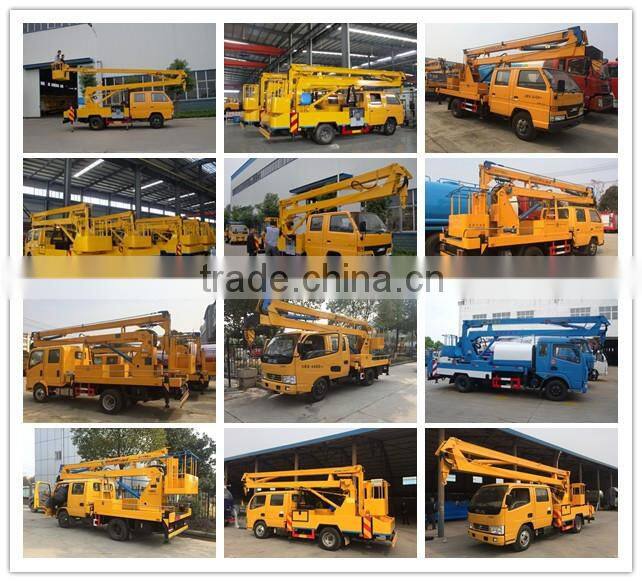

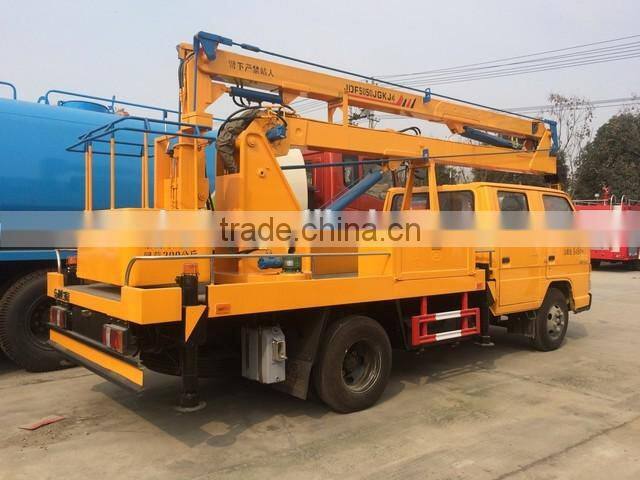

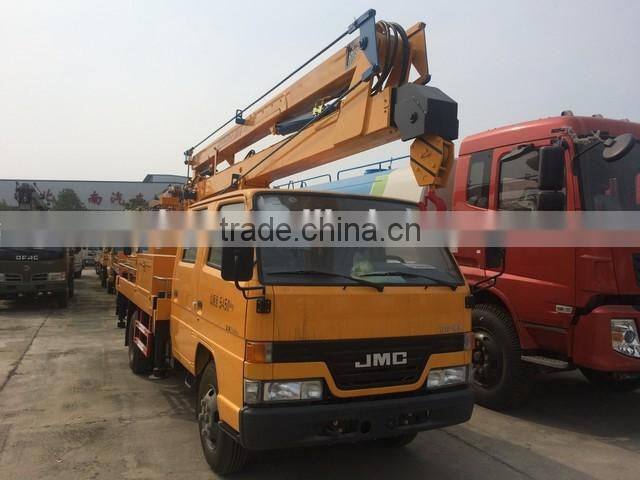

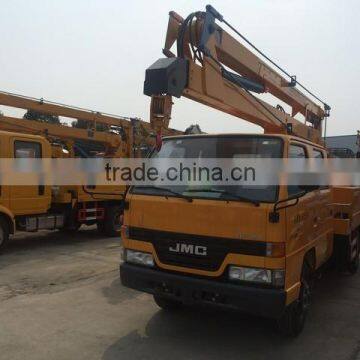

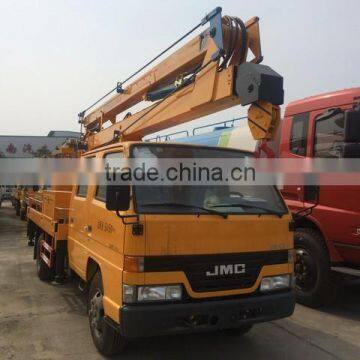

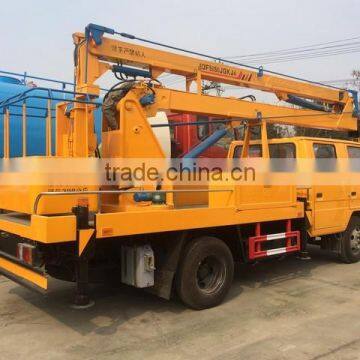

Product pictures
Similar Products:
Production equipment
WHY CHOOSE US?
- Experience
- 10 years experience of production,sales,research and development in the field of special trucks.
- Specialization
- OEM&ODM is available,we can produce according to your demand, the material,the size, the color and the logo is optional for you.
- Good Quality
- has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system and passed the ISO9001-2008 and the 3C (China Compulsory Certification),with SGS,BV certifcate as well.
- Chassis supply
- we have a very good long term cooperation relationship with chassis manufacturer,such as DONGFENG,FOTON,SINOTRUCK,SHACMAN,IVECO,FAW,HINO,CAMC,NORTH-BENZ,etc.
- Production supply capacity
- Company Scale: More than 3000 employees with 1000 acres factory, total asset 2 billion.
- We manufacture the truck as soon as possible once your order confirmed. And for the stock, we can delivery it immediately.
- Our services
- 1. we can send our technician to arrive the customer's country to provide the service and also we can train customer‘s workers for free.
-
2. free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
3. One year free cost warranty.
4. Spare parts forever. When you need spare parts, we can send them to you immediately.
Hubei Changjie Special Automobile Co., Ltd. , is a professional manufacturer of special automobiles for 10 years. Our company has independent export authority, and has a lot of overseas clients.
Our leading products include more than 8 series and 100 types of trucks such as water trucks, tank trucks, garbage trucks, fecal suction trucks, sewage suction trucks, dump trucks, van trucks, semi-trailers, wrecker trucks, trucks with cranes, high-altitude operation trucks, training trucks, bulk cement trucks, chemical liquid trucks, fire engines, truck fittings, cement mixers and tractors. At the same time, we deal with wholesale chassis.
Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, we have obtained ISO9001 and CCC certificates (China Compulsory Certification).
Our survival is based on the quality.Credit standing is the guarantee of our success. We will endeavor to treat customers honestly, managing flexibly, guaranteeing high quality but low price, and keeping high efficiency. We promise that all the products that are adapted and sold by us can get one-year services and maintenance for the life.
