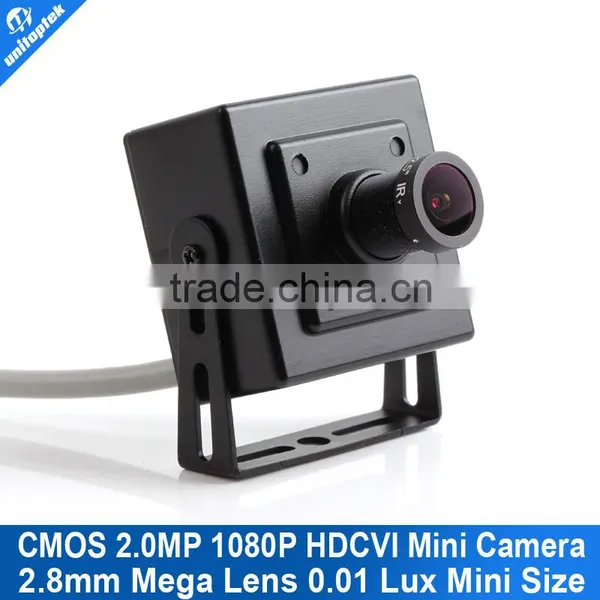

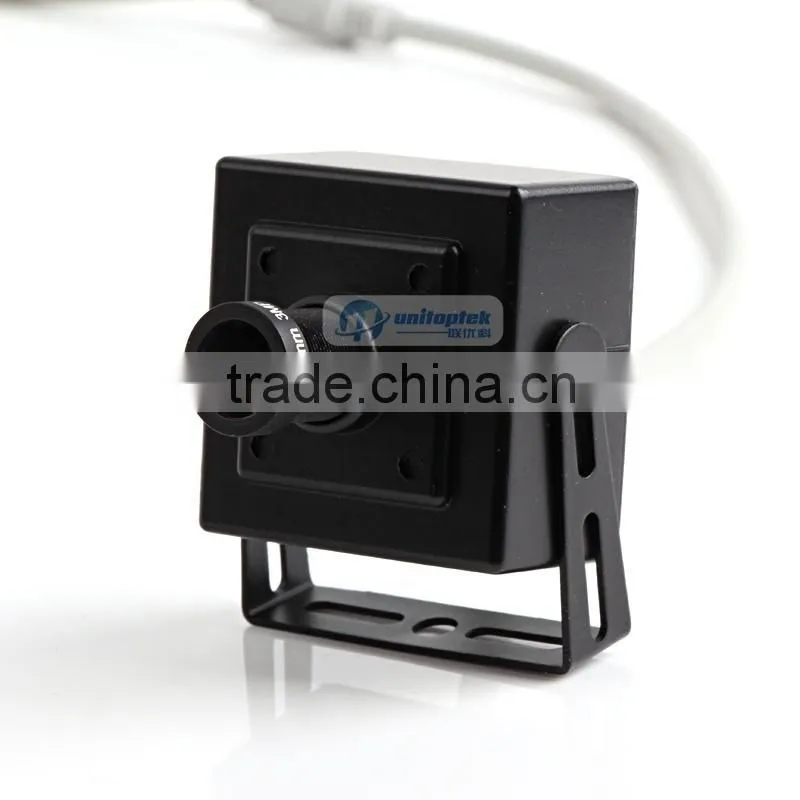

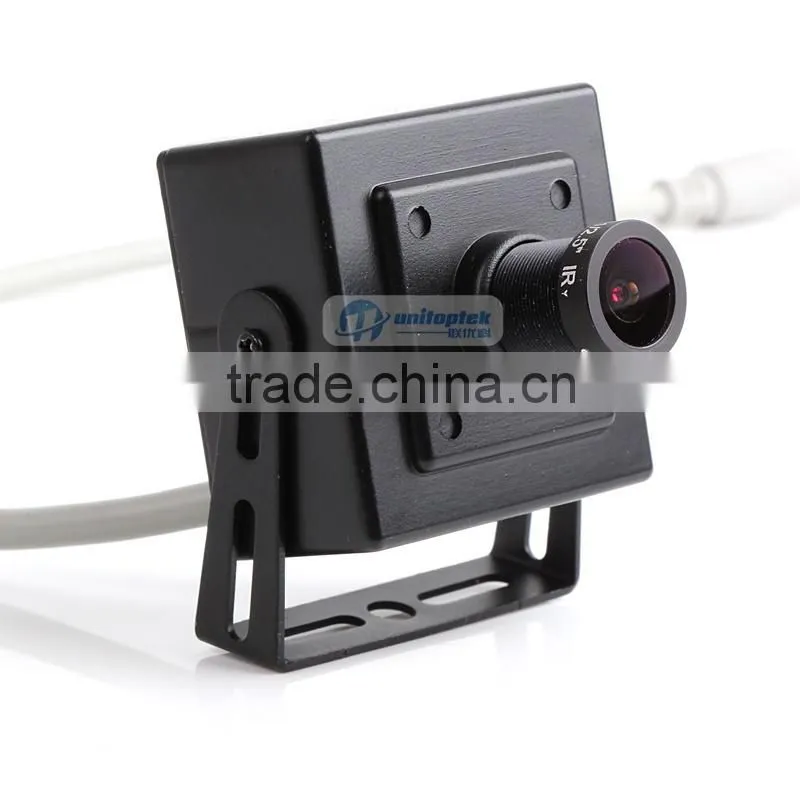

Dahua Solution 2.0MP HD CVI Camera Mini Size HD CVI Camera 1080P Pinhole For CVR DVR
What is HDCVI ?
HDCVI ( High Definition Composite Video Interface ) is an over-coaxial-cable analog HD video trasmission standard which developed in-house. The technology renders two HD video formats 1920H ( 1920 x 1080 ) and 1280H ( 1280 x 720 ) by progressive scanning
Technical Highlights
1.HD Video Format
2.Analog Modulations
3.Transmission over Coaxial Cable
4.Auto Compensation and Long range transmission
5.Composite Video, audio , PTZ Data Signals
6.Two-way data Transmission
Benefits of HDCVI
1.Upgraded to analog HD seamlessly with Low-cost and simple installation value-added solution. Go after the conventional analog system topology and give a full consideration to users’ operation habit.
2.Megapixel & uncompressed image quality 1920H (1920 x 1080) & 1280H (1280 x 720)
3.Long range & non-latency reliable video transmission without additions of relay devices.
4.Strong anti-interference capability & solid interface protection. Free of high-frequent electromagnetic radiation; constant signal transmission and display without problems as frame drop and lock loss occurred.
5.An open analog HD transmission system established and evolved industry chain developed to sustainably improve the technical standard.
FEATURES:
1.2.0 Mega Pixel Sensor
2.HD 1080P Video Output 2.0MP 1920x1080
3.Adopt HDCVI Technology0.01 Lux
4.2.8mm 2.0 mega pixels Lens
5.DC 12V
Spec Sheet | |
Model ( MPN ) |
CVI-MC29101080 |
Lens |
2.8mm 2.0 Mega Pixels Lens |
Operating Temperature |
-10 ~ +50 RH95% Max |
System Control |
NTSC/PAL |
Effective Pixels |
2.0MP. 1920x1080 |
Scanning Area |
Progressive Scan |
Sync. System |
Internal |
Video Output |
HD CVI ( BNC ) |
Min. Illumination |
0.01Lux |
Resolutions |
1080P |
Electronic Shutter Speed |
1/30s`1/60,000s |
White Balance |
Auto |
Gain Control |
Auto |
Day & Night |
Auto ( ICR ) / Color / B&W |
S/N Ratio |
>50dB |
Power |
DC12V+-10%, 700mA |
Storage Temperature / Humidity |
-20 ~ +60 RH95% Max |
Why Choose HDCVI (High Definition Composite Video Interface)?
1.HDCVI is a solution for megapixel high definition applications, featuring non-latent long-distance transmission at a lower cost. The technology offers two specifications: 1080p (1920×1080) and 720p (1280×720).
2.HDCVI is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.With no new cabling or IP hassle required, HDCVI is one option for upgrading existing systems from standard definition to high definition, offering longer transmission via coaxial cable and lower total cost.
3.Transmitting data over 500m over a coaxial cable can be realized, depending on the cable selected. Cable 75-3 and 75-5 are recommended for transmissions within 500m, cable 75-5 and above for over 500m. Connectors and welding process also affect the transmission distance.
4.HDCVI composites video, audio, and control signals together and then transmits them over one coaxial cable, simplifying installation.
|
HD-CVI |
HD-SDI |
CVBS |
IP CAMERA |
Resolution Pixel |
1MP/2MP (720P/1080P) |
1MP/2MP (720P/1080P) |
Max 552,960pixel |
Unlimited |
Image Quality |
HD,Real-time,Lossless Compression |
HD,Real-time, Lossless Compression |
Standard,Real-time,Lossless Compression |
HD,lossy Compression |
Coaxial Control |
Support |
Extra Device |
Extra Device |
Support |
Coaxial Audio |
Support |
Support |
Not Support |
Support |
Transmission Delay |
No delay |
No delay |
No delay |
Network latency |
Transmission Medium |
SYV75-3 Coaxial Line |
More than SYV75-5 Coaxial Line |
SYV75-3 Coaxial Line |
Cat5 Ethernet Cable |
Transmission Distance |
1-500M |
1-100M |
1-500M |
1-100M |
Construction Deployment |
Easy Operate |
Easy Operate |
Easy Operate |
Complex |
Anti-interference |
Strong |
Weak |
Strong |
Stronger |
Transmission Reliability |
High |
Low |
High |
Low |
Total Cost |
Cheap |
Expensive |
Cheap |
Reasonable |
Tips:
*HDCVI can work with normal analog cctv coaxial cable and up to 500m distance,,easy to upgrade your existing standard definition system to HD 720P/1080P.
*HDCVI Camera work with CVR(HDCVI Recorder),We have 4ch/8ch/16ch models in sale,contact us if you need
1x HDCVI 1080P Camera
1xScrew Bag
