Help CenterBullet Outdoor Waterproof 4X Optical Zoom 2.8-12mm Lens IR Range 30M Night Vision1.0MP HD-AHD PTZ Camera
Related Products
-
1/3" Cmos 2.0MP PIR Motion Detection TVI Camera With 3.6mm Lens OSD MenuUS$ 32 - 39MOQ: 1 Piece -
720p 360 Degree View Angle 1.39mm Lens Panorama Fisheye HDTVI CameraUS$ 36 - 42MOQ: 1 Piece
-
1.3 Mega Pixel HD 720P Fisheye 360 Degree View Angle 1/3" CMOS 1.56mm Panorama Dome TVI CameraUS$ 35 - 39MOQ: 1 Piece
-
2.8mm Lens Mini Size 2MP 1080P HDCVI CCTV Camera With Balck ColorUS$ 23.35 - 29MOQ: 1 Piece
-
CCTV DVR 8 Channel With Hi3531 AHD DVR 720P Real Time 8Ch Playback DVR Recorder Max to 4TBUS$ 74.17 - 89.02MOQ: 1 Piece
Bullet Outdoor Waterproof 4X Optical Zoom 2.8-12mm Lens IR Range 30M Night vision1.0MP HD-AHD PTZ Camera
Main features:

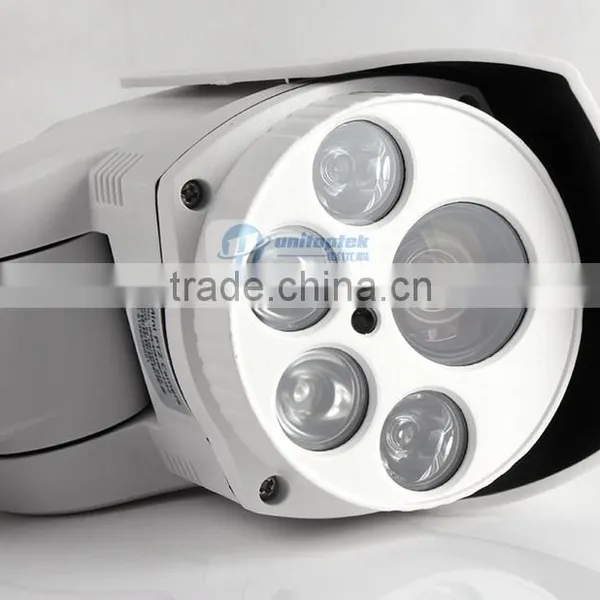

1: The Highly power array LEDs with IR range up to 30meters
2: Built-in digital HD module,the image can up to 720p.
3 Built-in camera :4x optical zoom(manual).
4: Ambarella A5S compression program,SONY HD Senor.
5: OSD menu in Chinese and English system.
6:The working consumption of Infrared lamp can be set separately by menu,related with the optical zoom.
7:Illumination value of installation environment can be defected.
8:Intelligent temperature control design, can display real-time inside temperature of the dome camera.
9: Infrared light control software, suitable for various occasions
10: Automatic defrost and defog function( manual operation)
11: IP66/ level 2 lightning protection,4000V prevent thunderbolt surges design.
Feature:
½.8" Sony Exmor CMOS Sensor
4x optical zoom(Manual)
IR Range:30m
IP66 Rating

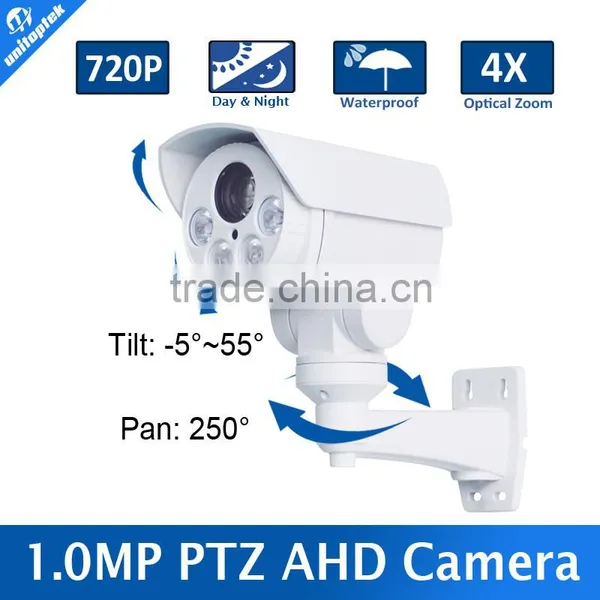

Rotation:Pan: 250° continuous rotation; Tilt: -5°~55° auto flip
Support Coaxial or RS485 Control
Technical parameters:
Model |
AHD-SCB405AH-C13 |
Product name |
2015 New Model Hot Sell AHD 1.0MP 4X Zoom Waterproof Bullet PTZ Camera |
Sensor |
1/3" Sony Exmor CMOS Sensor |
Effective pixels |
720P(1280X 720) |
Focus lenght |
2.8-12 mm Manual |
Day/night mode |
Automatic /multicolour /monochrome |
Focus mode |
Automatic/ manual |
Noise-signal ratio |
2D/3D-DNR |
Back light compensation |
Off/on |
White Balance |
Automatic/ manual |
Electronic shutter |
1/25s ~ 1/100000s |
Gain control |
Automatic/ manual |
Min illumination |
0lux (IR ON) |
Wide dynamic range |
Support |
Infrared lamp:
Infrared lamp |
|
IR View Distance |
4 high power array LEDs with IR |
IR lamp control |
30 meters |
IR lamp consumption |
Automatic /manual / camera |
Bullet IP Camera :
Pan speed |
Pan speed:0.5°~12°/s,speed is settable;pan preset speed:20°/s |
Tilt speed |
Tilt speed:0.5°~10°/s ,speed is settable;Tilt preset speed:20°/s |
Rotation |
Pan: 250° continuous rotation; Tilt: -5°~55° auto flip |
Preset |
256 presets ( Chinese title) |
Auto Scan |
8 groups, settable boundaries and scan speed |
Auto Cruise |
8 groups, each with 32 presets with settable time interval |
Pattern Tour |
4 groups, each with 500 instructions |
Video analysis |
Support |
Auto tracking |
Not Support |
OSD menu |
OSD menu with Chinese and English |
Heat dispersion structure |
Out Cool Air Circulation to Sink the Heat Technology |
Supply voltage |
DC12V±10% 1.5A |
Levels of protection |
IP66/ level 2 lightning protection,4000V prevent thunderbolt surges design |
Working temperature |
-35-+55 |
Working humidity |
<90%,No condensation |
Consumption |
18W Max |
Weight |
0.92 Kg |
Accessory |
Wall-mount bracket DC12V power, |
1 x ptz ahd Camera with Bracket
1 x User manual & CD
1 x Screws
Notes: This model is suitable DC12, 2A power adapter, but not included
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
