Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > HD 1080P 2.0MP CCTV AHD Camera Mini Bullet AHD Camera With 6mm Lens 0.0001 Low Lux Star Light Colorful Nightvision Waterproof Quality Choice

HD 1080P 2.0MP CCTV AHD Camera Mini Bullet AHD Camera With 6mm Lens 0.0001 Low Lux Star Light Colorful Nightvision Waterproof Quality Choice

Name: HD 1080P 2.0MP CCTV AHD Camera Mini Bullet AHD Camera With 6mm Lens 0.0001 Low Lux Star Light Colorful Nightvision Waterproof Quality Choice
Brand: UNITOPTEK
SKU: 123501295
Availability: InStock

HD 1080P 2.0MP CCTV AHD Camera Mini Bullet AHD Camera With 6mm Lens 0.0001 Low Lux Star Light Colorful Nightvision Waterproof Quality Choice thumbnail-1

HD 1080P 2.0MP CCTV AHD Camera Mini Bullet AHD Camera With 6mm Lens 0.0001 Low Lux Star Light Colorful Nightvision Waterproof Quality Choice photo-1

US$ 21 - 29.98 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

UNITOPTEK

Model Number:

UTK- AHDMS3091080

Contact Supplier Request Quote Chat Now

Shenzhen Unitoptek Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name UNITOPTEK

Model Number UTK- AHDMS3091080

Type Analog Camera

Style Bullet Camera

Sensor Other, CMOS, CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

HD 1080P 2.0MP CCTV AHD Camera Mini Bullet AHD Camera With 6mm Lens 0.0001 Low Lux Star Light Colorful Nightvision Waterproof

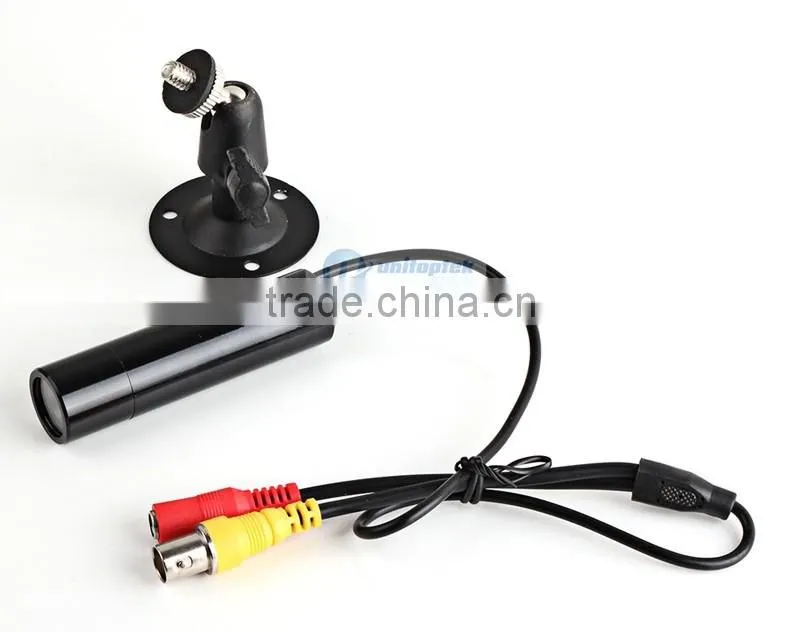

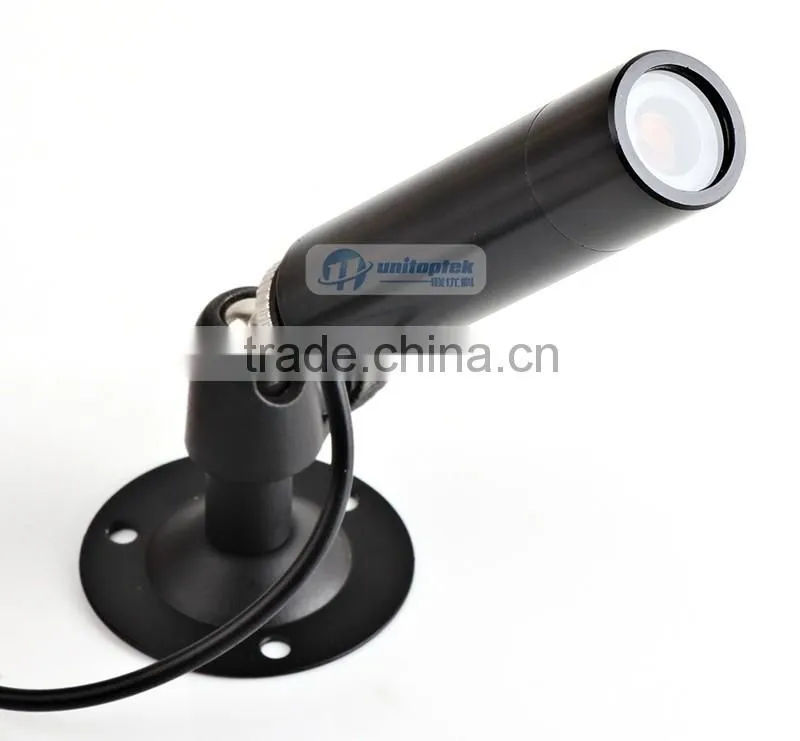

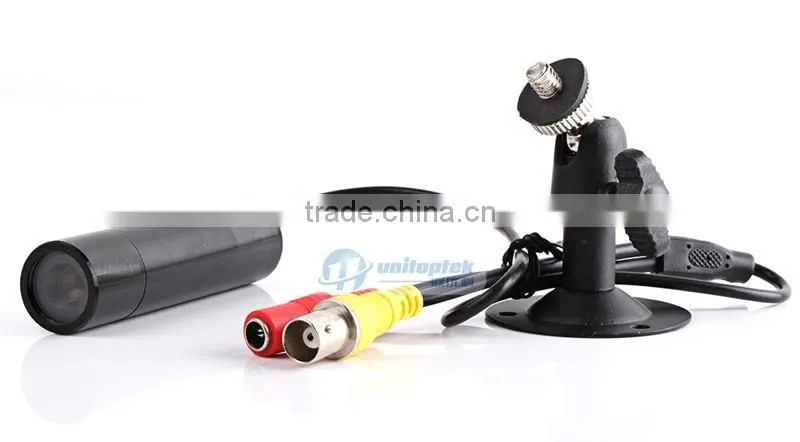

Detailed Images

Product Description

Why AHD(Analog High Definition)?

1.Transmit video signal, audio signal and dual-way data communication signal over one coaxial cable.

2.HD video transmission without video quality loss & delay

3.Extremely long transmission distance(500m)

4.The same connection structure as original analogue system without cable (Coax / UTP) changing

5.High video quality on AHD 1080P/720P

AHD is short for Analog High Definition

Coaxial transmission, super long range, more than 500 meters by 75-3(HD-SDI can only reach less than 100 meters)

Advantages of Our HD AHD camera(Solution: 1/3" IMX322+NVP2441H)

1. Good compatibility

Support AHD output and CVBS output, can work with 1080P AHD DVR (Real 1080P output) and 960H DVR(can ONLY reach 960H resolution)

2. Convenience

Transmission via Coaxial cable, no need to change wires if changed from Analog cameras

3. Clear vision but Good prices

1080P, resolutoin up to 1920(H) x 1080(V), more than 2000TVL

Prices lower than HD-SDI and CVI

Features Of the Camera:

Image Sensor:1/3" SONY IMX322+NVP2441H CMOS
DSP: IMX322+NVP2441H
Horizontal Resolution :2.0 Mega Pixel 1080P

Effective Pixel:PAL : 1920*1080@25fps; NTSC : 1920*1080@30fps

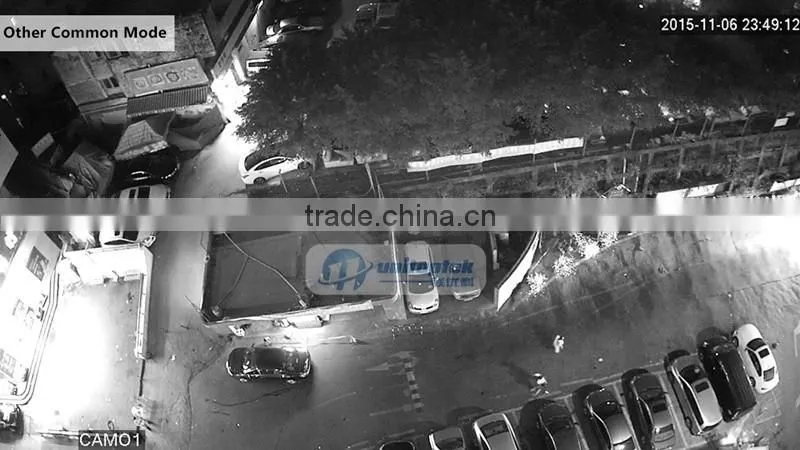

Min. Illumination :StarLight 0.0001 Lux (F1.2)
Signal System: NTSC/PAL
Lens: Standard 6mm
Camera Type: Indoor/Outdoor
Power Supply: DC12V/75MA

Specification Of the Camera:

Model	AHD-3091080
Image Sensor	1/3" SONY IMX322+NVP2441H CMOS
DSP	IMX322+NVP2441H
Horizontal Resolution	2.0 Mega Pixel 1080P
Effective Pixel	PAL : 19201080@25fps NTSC : 19201080@30fps
Min. Illumination	StarLight 0.0001 Lux (F1.2)
Signal System	NTSC/PAL
Electronic Shutter	PAL:1/50~1/100000s;NTSC:1/60~1/100000s
Max Transmission Distance	Common 75-3 lines can be up to 500m
Lens size	6mm
S/N Ratio	More than 46dB
Gamma	0.45/1.0
Exposure	Auto
OSD	N/A
White Balance	Auto White Balance
Backlight	OFF/ON/BLC/ HLC
Pic Adjust	Mirror/Brightness/Contrast/Sharpness/Hue/Gain
ATR	ON/OFF
Motion Det	OFF/ON(Detect sense/ Area Sel)
Privacy Masking	OFF/ON (4 Zone)
Day/Nigh	True Day and Night (Auto/ Day / Night / Ext. D&N)
2D-NR	OFF/ON (0-15/16 level)
Camera ID	OFF/ON
Sync. System	Internal
Audio Output	Optional
Video Output	1 Vp-p / 75 Ohms
Working Conditions	-20~60Degree/0-93% Humidity
Power Supply	DC12V/75MA

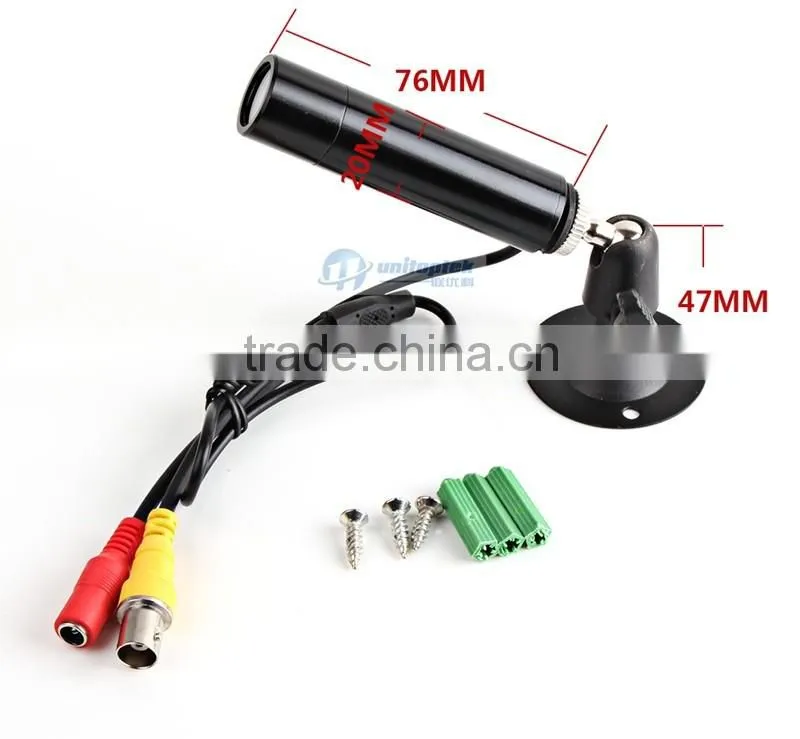

Size	77*20mm
