Product Details
Place of Origin: | Guangdong, China | Brand Name: | UNITOPTEK | Model Number: | AHD-MS3071080 |
Type: | Other, starlight ahd camera | Style: | Dome Camera | Sensor: | Other, CMOS, CMOS |
Technology: | Infrared | Special Features: | Waterproof / Weatherproof |
Product Description

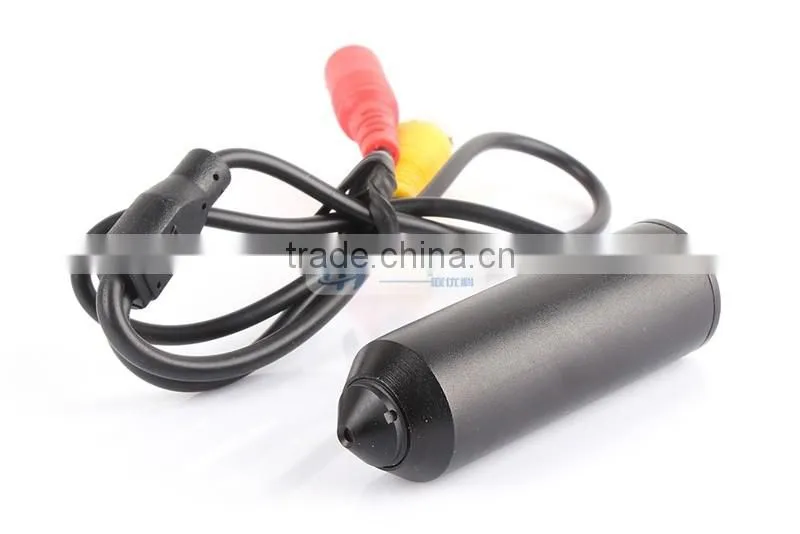

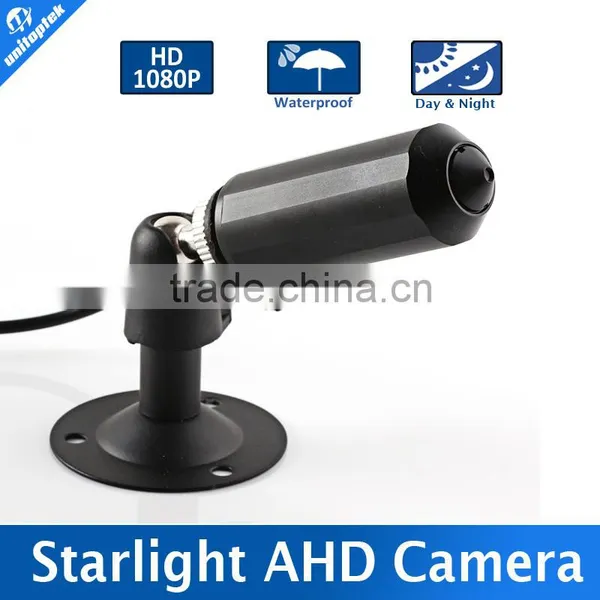

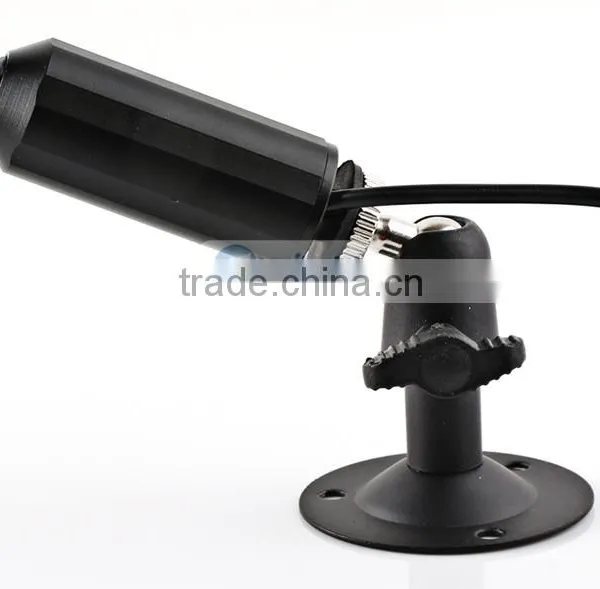

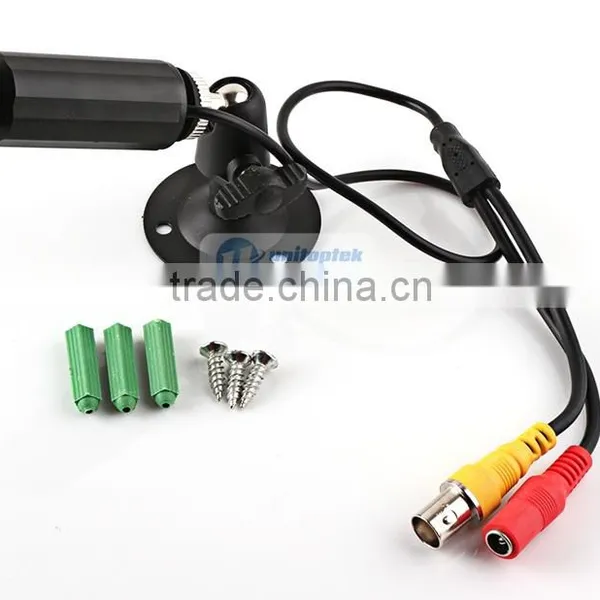

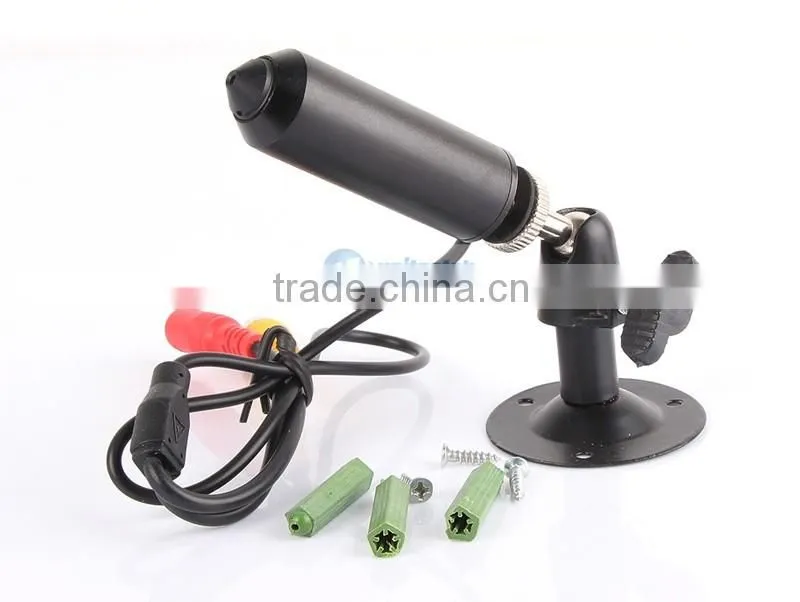

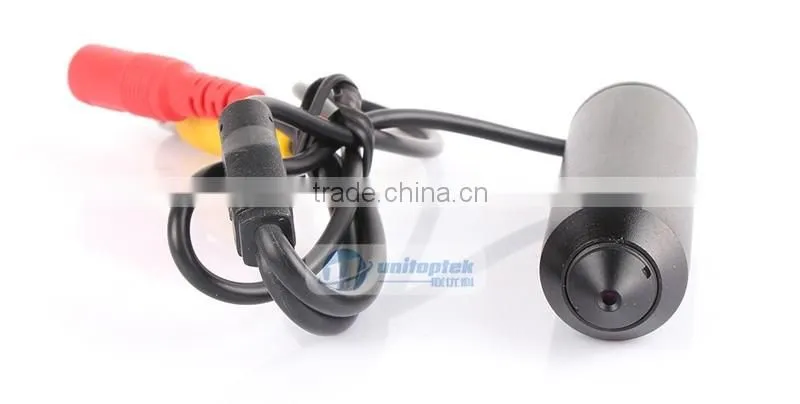

1/3''IMX322+NVP2441H StarLight 0.0001 Lux Mini Bullet AHD HD 2.0MP Security CCTV Camera With 3.7mm Lens Starlight AHD Camera
AHD is short for Analog High Definition
Coaxial transmission, super long range, more than 500 meters by 75-3(HD-SDI can only reach less than 100 meters)
Advantages of Our HD AHD camera(Solution: 1/3" IMX322+NVP2441H)
1. Good compatibility
Support AHD output and CVBS output, can work with 1080P AHD DVR (Real 1080P output) and 960H DVR(can ONLY reach 960H resolution)
2. Convenience
Transmission via Coaxial cable, no need to change wires if changed from Analog cameras
3. Clear vision but Good prices
1080P, resolutoin up to 1920(H) x 1080(V), more than 2000TVL
Prices lower than HD-SDI and CVI
Features Of the Camera:
Image Sensor:1/3" SONY IMX322+NVP2441H CMOS
Horizontal Resolution :2.0 Mega Pixel 1080P
Effective Pixel:PAL : 1920*1080@25fps; NTSC : 1920*1080@30fps
Min. Illumination :StarLight 0.0001 Lux (F1.2)
Signal System: NTSC/PAL
Lens: Standard 3.7mm
Camera Type: Indoor/Outdoor
Power Supply: DC12V/75MA
Specification Of the Camera:
Model | AHD-3071080 |
Image Sensor | 1/3" SONY IMX322+NVP2441H CMOS |
DSP | IMX322+NVP2441H |
Horizontal Resolution | 2.0 Mega Pixel 1080P |
Effective Pixel | PAL : 1920*1080@25fps NTSC : 1920*1080@30fps |
Min. Illumination | StarLight 0.0001 Lux (F1.2) |
Signal System | NTSC/PAL |
Electronic Shutter | PAL:1/50~1/100000s;NTSC:1/60~1/100000s |
Max Transmission Distance | Common 75-3 lines can be up to 500m |
Lens size | 3.7mm |
S/N Ratio | More than 46dB |
Gamma | 0.45/1.0 |
Exposure | Auto |
OSD | N/A |
White Balance | Auto White Balance |
Backlight | OFF/ON/BLC/ HLC |
Pic Adjust | Mirror/Brightness/Contrast/Sharpness/Hue/Gain |
ATR | ON/OFF |
Motion Det | OFF/ON(Detect sense/ Area Sel) |
Privacy Masking | OFF/ON (4 Zone) |
Day/Nigh | True Day and Night (Auto/ Day / Night / Ext. D&N) |
2D-NR | OFF/ON (0-15/16 level) |
Camera ID | OFF/ON |
Sync. System | Internal |
Audio Output | Optional |
Video Output | 1 Vp-p / 75 Ohms |
Working Conditions | -20~50Degree/0-95% Humidity |
Power Supply | DC12V/75MA |

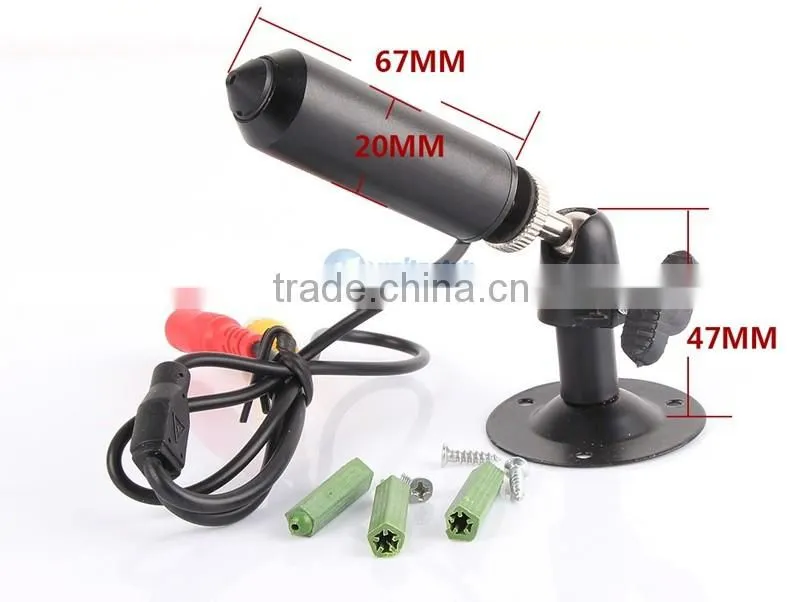

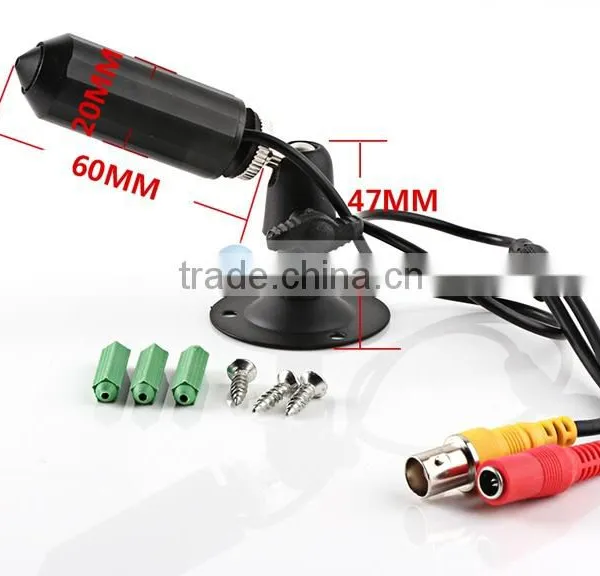

Size | 77*20mm |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
