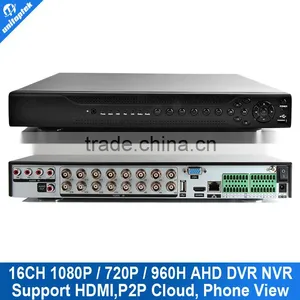

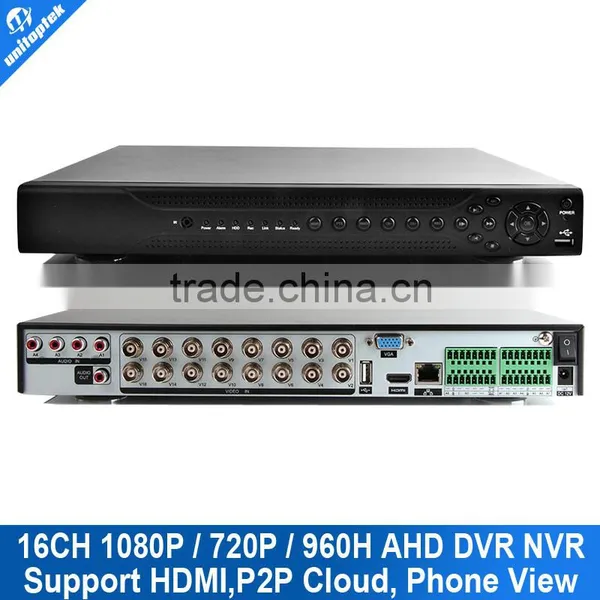

2.0MP CCTV Video Recorder DVR NVR HVR 3 in 1Security System 1080P 16CH AHD DVR
Note:This AHD DVR Support 1080p/720p ahd camera
Model |
ADVR7016DA-MH |
|
System |
Main Processor |
Embedded processor Hi3531+Hi3532 |
Operating System |
Embedded LINUX |
|
Video |

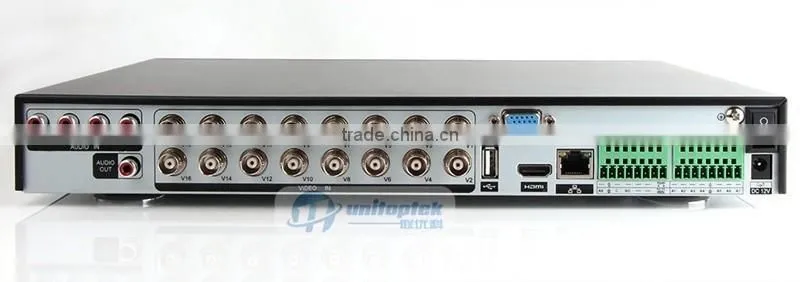

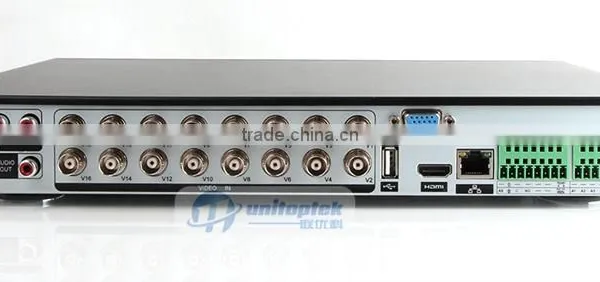

Input |
16 channel, |
Audio |
Input |
4 channel, RCA |
Output |
1 channel, RCA |
|
Intercom |
Support |
|
Display |

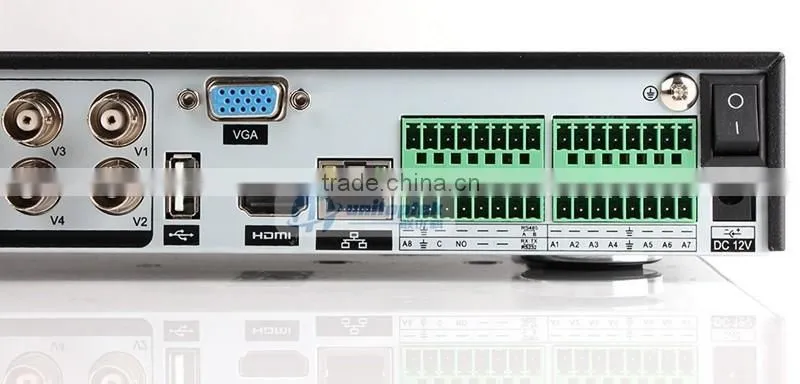

Interface |
1 HDMI, 1 VGA |
Resolution |

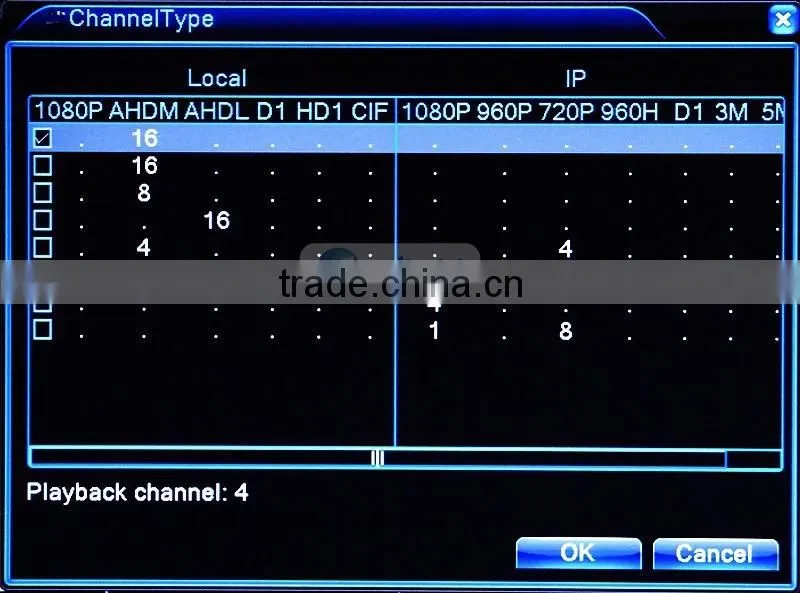

DVR: 16*AHD-H@12fps, 16*AHD-M@25/30fps NVR: 1*1080P+8*720P, 4*1080P; 20*960H HVR: 2*AHD-H+2*1080P, 4*AHD-M+4*720P |
|
Display Split |
1/4/8/16 |
|
Privacy Masking |
8 rectangular zones (each camera) |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording |

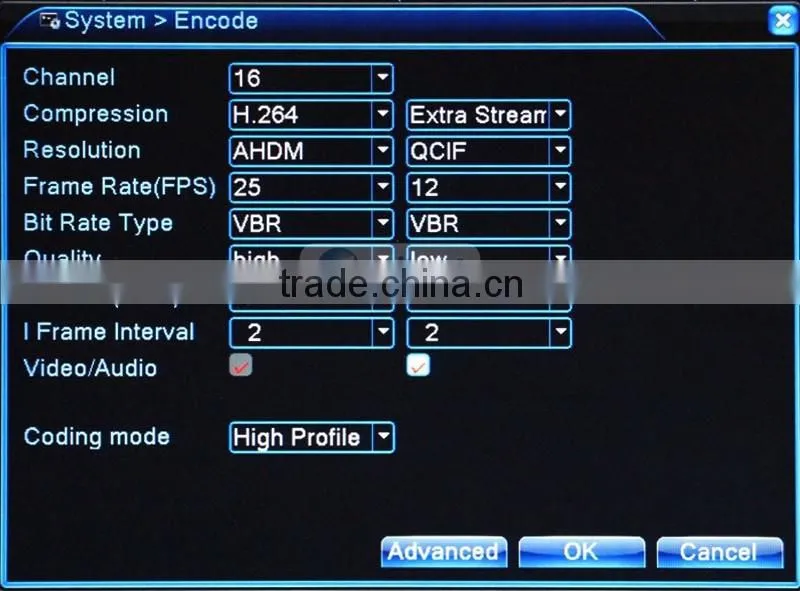

Compression |
H.264 |
Resolution |
1080P/720P/960H /D1/HD1/2CIF/CIF/QCIF |
|
Extra Stream |
CIF/QCIF(1~25/30fps) |
|
Bit Rate |
1792Kbps-4096Kbps,customized,up to 4096Kbps |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300sec |
|
Video Detection & Alarm |
Trigger Events |
Recording, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips |
Video Detection |
Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank |
|
Alarm Input |
8CH |
|
Alarm Output |
1CH |
|
Playback & Backup |
Sync Playback |
8CH |
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
|
Backup Mode |
USB Device / Network |
|
Network |
Ethernet |
RJ-45 port (10/100/1000M) |
Network Functions |

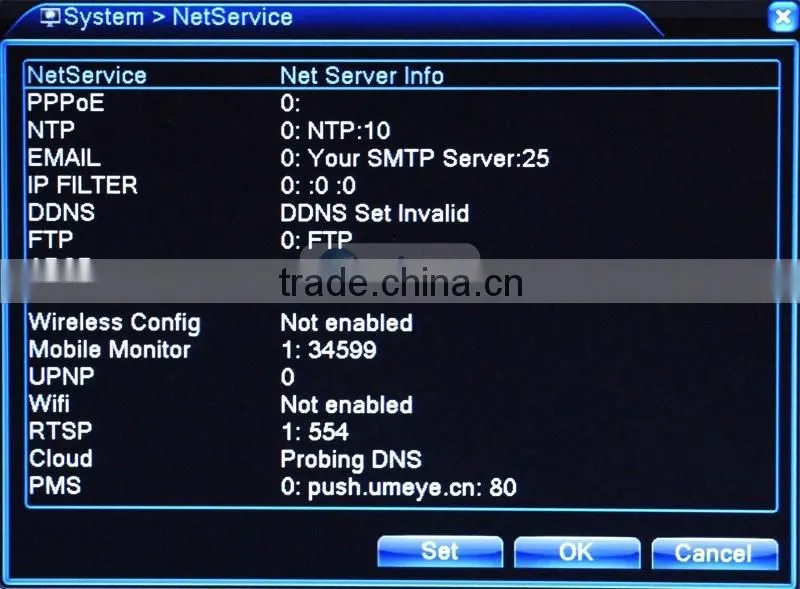

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
|
Smart Phone |
Android, Windows Phone ,IOS |
|
Storage |
Internal HDD |
2 SATA port, up to 4TB |
Auxiliary Interface |
USB Interface |
2 ports(1 Rear), USB2.0 |
General |
Power Supply |
DC12V/4A |
Power Consumption |
≤15W(without HDD) |
|
Working Environment |
-10 ~+55°C / 10~90%RH / 86~106kpa |
|

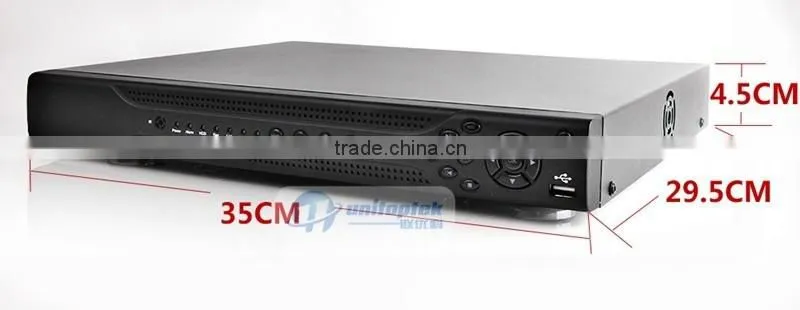

Dimension |
Only dvr:350*295*45mm(W*D*H) |
|
Dimension |
Packing:390*340*130mm(W*D*H) |
|
Weight |
Only dvr:2.0kg |
|
Weight |
Packing:2.90kg(NOT WITH HDD) |
|

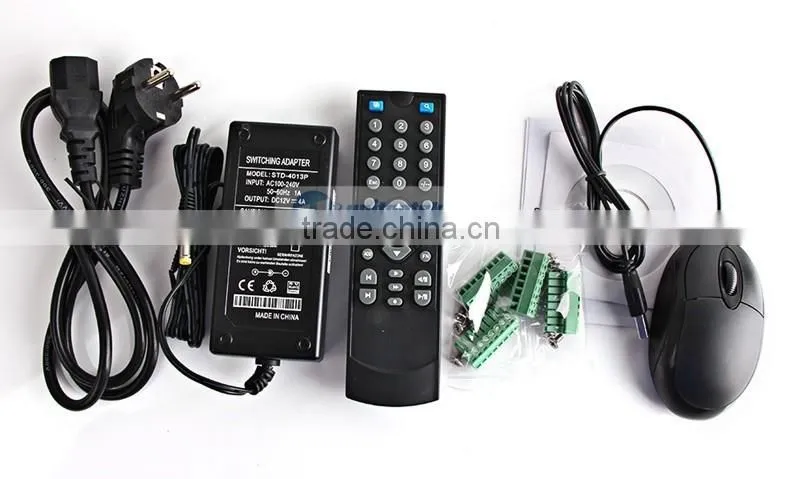

Packing list:
1 x 16CH 1080p AHDH/AHDM DVR
1 x Remote Controller
1 x USB Mouse
1 x Installation CD Rom
1 x User Maunal
1 x Power supply DC 12V
Note:This AHD DVR Support 1080p/720p ahd camera
