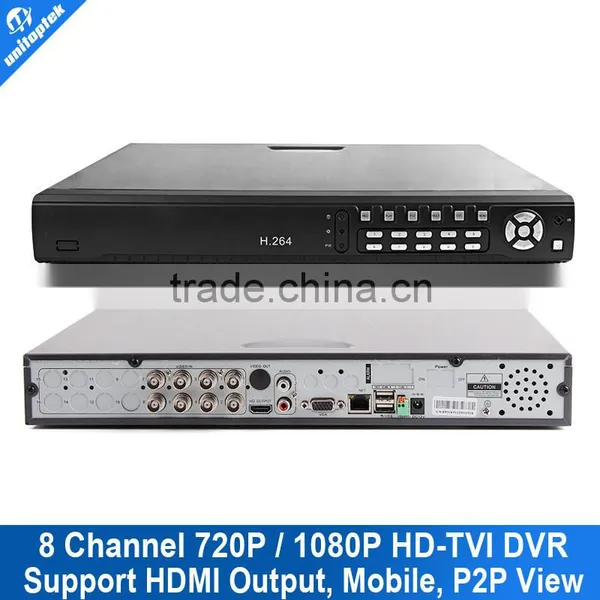

TVI DVR 1080P/720P Recorder 8CH DVR H 264 For HD TVI Camera Mobile P2P View
Features:
8 Channel 720P/1080P HD-TVI DVR
Preview 720P 25/30fps; 1080P 25/30fps
Recording&Palyback 720P 25/30fps; 1080P 15fps
2× HDD(max 4TB)
1ch audio input;1ch audio output
1ch VGA output, 1ch HDMI output
Support RS485
Support free ddns: ;plug-play, P2P
Support smart CMS;smart mobile phone view (android, iphone,etc ,)
Support up to 500M over-coaxial -cable tansmission distance; easily installation with old connection system, and save cost.
Support mobile view app: eseenet
Are Compatible with TVI products.
Specification:
Model |
Model No. |
R5208-TVI |
System |
Main Processor |
|
|
Operating System |
Embedded LINUX |
|
Video Parameters |
Input channel |
8 |
Preview Resolution |
1080P@25fps / 1080P@30fps |
|
Compression |
H.264 |
|
Image Resolution |
1080P* / 720P / D1 |
|
Frame Rate |
1080P@15fps* / 720P@25~30fps |
|
Video Bitrate |
512Kbps~6144Kbps,defaulted: 3072Kbps |
|
Playback |
x8 |
|
Substream Resolution |
Cif@15fps |
|
Stream Type |
Video Flow/Integrated Flow |
|
Dual Stream |
Support |
|
Audio Parameters |
Coding Standards |
G.711A |
Audio Sample Rate |
8KHz/16Bit |
|
Audio Rate |
64Kbps |
|

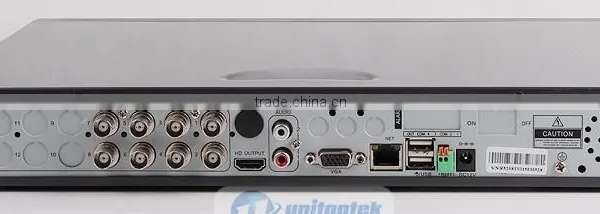

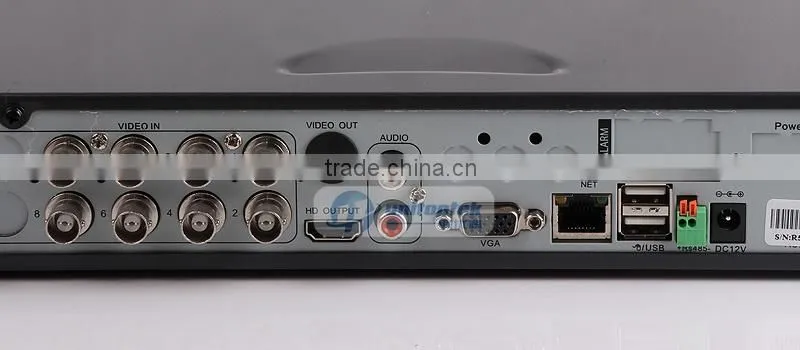

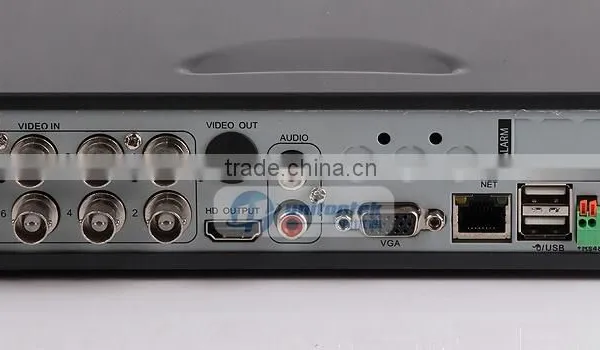

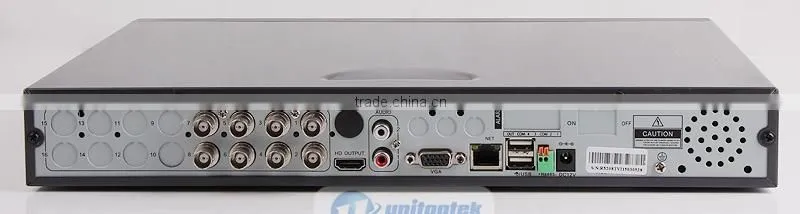

Video Interface |
Analog Video Input |
8ch, BNC interface |
Video Output |
1ch VGA output,1ch HDMI output |
|
Audio Interface |
Audio Input |
1ch RCA input |
Audio Output |
1ch RCA output |
|
Recording Management |
Recording Mode |
Auto,Manual,MD,Alarm |
Backup |
HDD,USB DISK,Network |
|
Alarm |
Alarm Input |
no |
Alarm Output |
no |
|
HDD |
HDD Interface |
SATA x 2 |
HDD Capacity |
4TB |
|
Communication Interface |
Network Interface |
1*RJ45,100Mbps Ethernet |
Communication |
1*RS485 |
|
USB |
2 * USB2.0 |
|
Other |
Power Supply |
DC12V |
Power Consumption |
<15W(excluded HDD) |
|
Working Temperature |
-10-+55centigrade |
|
Working Humidity |
10%~90% |
|
Dvr Size |
|
375*275*50mm |
Dvr Weight |
|
1.65kg |
Packing Size |
|
425*335*115mm |
Packing Weight |
|
2.65kg |

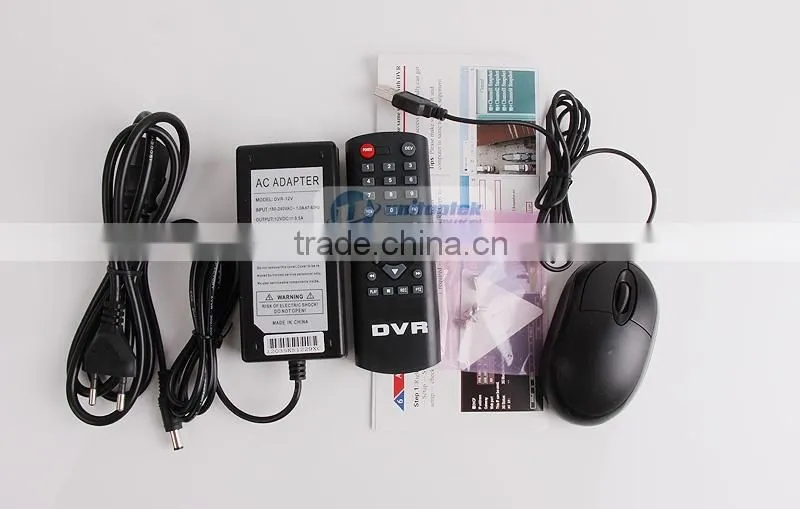

1 x 8ch 720p/1080p tvi dvr
1 X USB Mouse
1 X Remote Controller
1 X Power Adapter
1 X User manual
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
