high speed cutting and slitting machine
General description:
high speed cutting and slitting machine is special equipment for the uncoiling,slitting and recoiling the steel sheet according to the requirement of client.
It mainly consists of uncoiler,leveling system,shearing system,slitting system,scrap recoiling system,damping structure,recoiling system,unloading system and so on .
We can design and manufacture different specification to different requirement of the client.
high speed cutting and slitting machine
Type | Coil thickness(mm) | Coil width(mm) | NO.of Slitting | Tolerance (mm) | Speed (m/min) | Weight of Roll(Ton) |
| KJS-1.5x1300 | 0.25-1.5 | 500-1300 | 20 | /-0.05 | 50-120 | 15 |
| KJS-2x1300 | 0.25-2 | 500-1300 | 30-12 | /-0.05 | 50-120 | 15 |
| KJS-3x1300 | 0.25-3 | 500-1300 | 30-12 | /-0.05 | 50-120 | 15 |
| KJS-4x1600 | 0.5-4 | 500-1600 | 30-12 | /-0.05 | 50-120 | 15 |
| KJS-6x2000 | 1-6 | 900-2000 | 30-10 | /-0.05 | 50-120 | 20 |
| KJS-8x2000 | 2-8 | 900-2000 | 30-6 | /-0.05 | 50-120 | 20 |
| KJS-10x2000 | 3-10 | 900-2000 | 30-6 | /-0.05 | 40 | 20 |

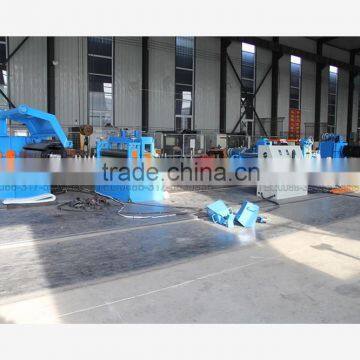

Display of every parts of high speed cutting and slitting machine :
a.Coil car and Decoiler

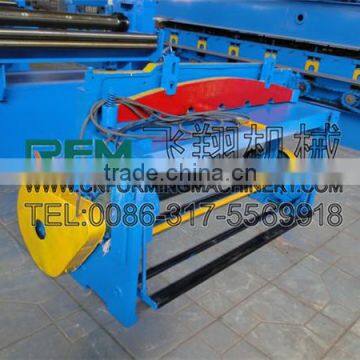

b.Shearing machine
c.Slitting machine

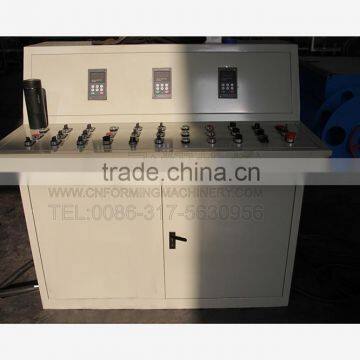

d.Control and Hydraulic system
Exit threading table and Recoiler
Except slitting line system ,We can also design simple slitting machine for you:
Type 1.
FX automatic slitting and rewinding machine
Type 2:
For more further details,contact me
For shutter door machine,pls click here;
For Pipe roll forming machine,pls click here
