automatic slitting machine sheet slitting machine steel cutting machine steel coil plate shearing machine
Technical specifications
Meterial :#45 steel
The min order:one set
Freight way: container
Term of payment: T/T
1.The chart of process flow:

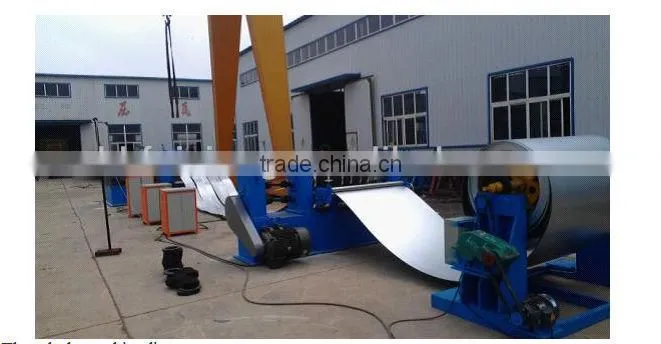

Decoiling--feeding--leveling--cutting-slitting--recoiling
2.Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
3.Technical parameters
1)Profile
A.thickness:>3mm
B.Feeding width:as you need(1000/1200/1250/1500)

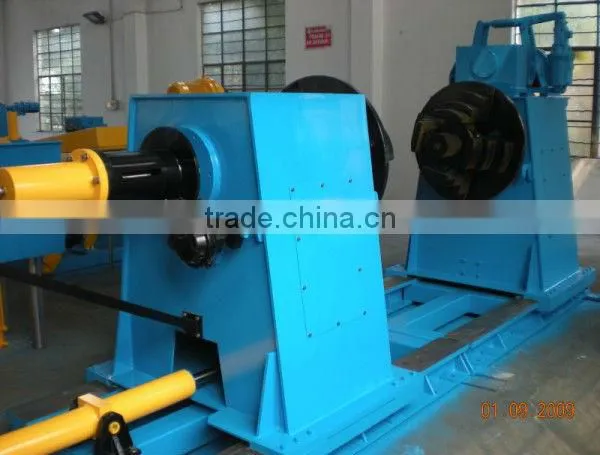

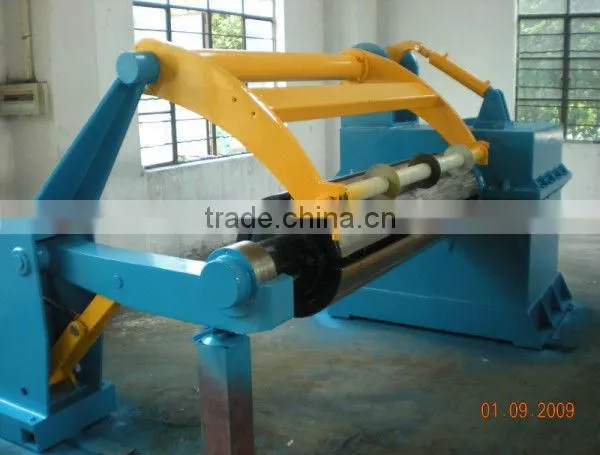

2)inner tight decoiler
il inner diameter:450mm--550mm
B.max width of coiling:1200mm
C.max weight of loading:5000kg

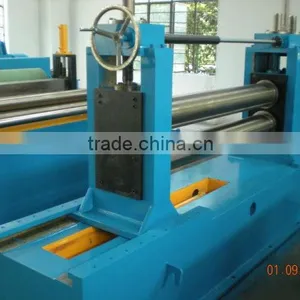

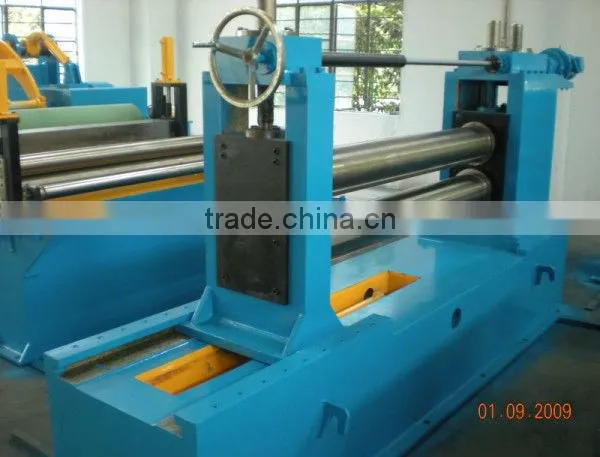

3)Levelling machine
1 Shaft material:45# steel quenching and retempering treatment,, outer diameter 85mm
2 Number of shaft:1 step of feeding , leveling shaft up: 5 pieces, down: 6 pieces
3 Gear transport
4 Max Forming speed:40m/min
4)cutting system
A.hydraulic cutter
B.Blade and mould material:Cr12 steel with quenched treated 60-62
Cutting system advanced hydraulic drive,after automatic cutting after forming.no

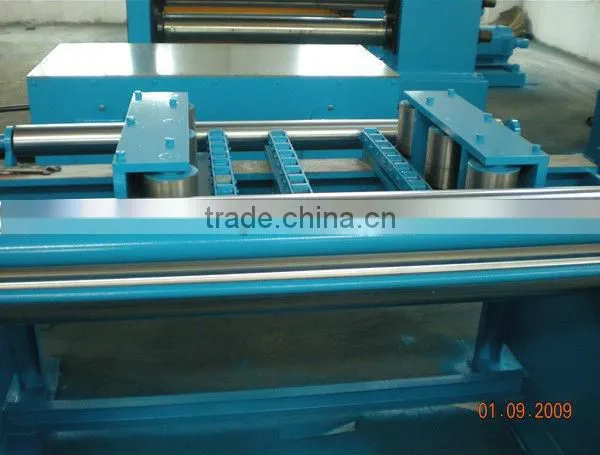

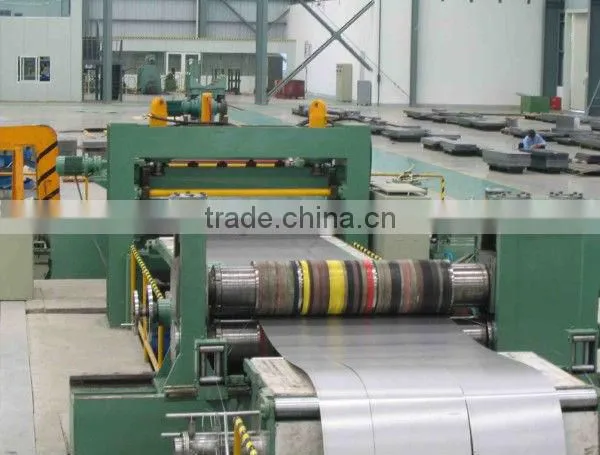

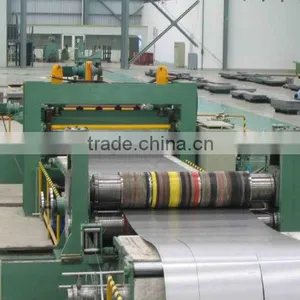

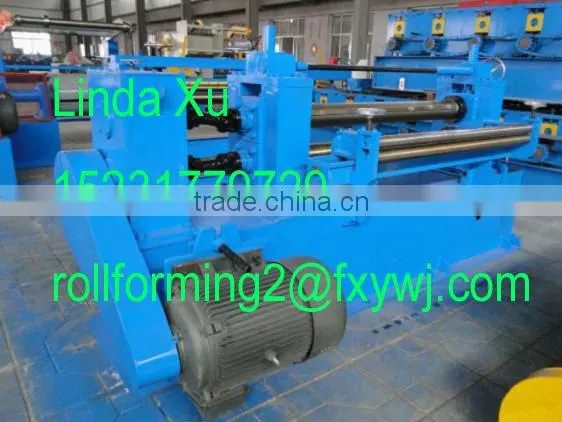

5).Slitting device
1 Material width for slitting:740mm and 925m
2 slitting width:185mm
3 Number of strip:4 strips or 5strips
4 Width tolerance: ±1mm
5 Slitting Speed: 40 m/min
5)control system
A.PLC: taida form Taiwan
B.Coder:from south korea
6)
1.material coil inner diameter:450mm--550mm
2 max coil width: 1250mm
3. carrying capacity:5000kg
4 .Manual expanding
4.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery:within 60 working day after receipt of deposit.
5.Warranty
1. One year, and we will provide the technical support for the whole life.
2. Trainning: the buyer should charge of visa, return ticket, food and accommodation overseas .
3. Need one technicians
4. Training time: one week (contains the time of installation and adjustment)
