Order process:confirm the profile--got the order-pay advance payment--start design and make machine(send process photo)--nearly finishing machine--send invitation letter -- try the machine for inspection--pay balance payment--delivery machine--send documents to clear the custom--worker help install if the customer need
FX automatic samosa making machines
1.The Chart of Process Flow
Decoler -active feeding-forming -caculate length --automatic cutting --product
2. The introduction of equipment
Hydraulic decoiler ,roll forming machine, hydraulic cutting ,electric system,hydraulic system, out put stand
| Name | SET |
| 5T Manual decoiler | 1 SET |

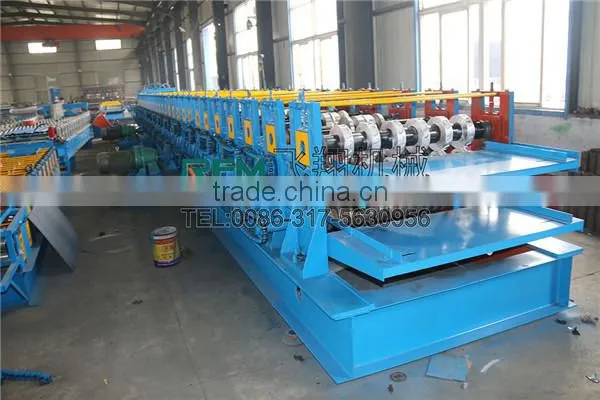

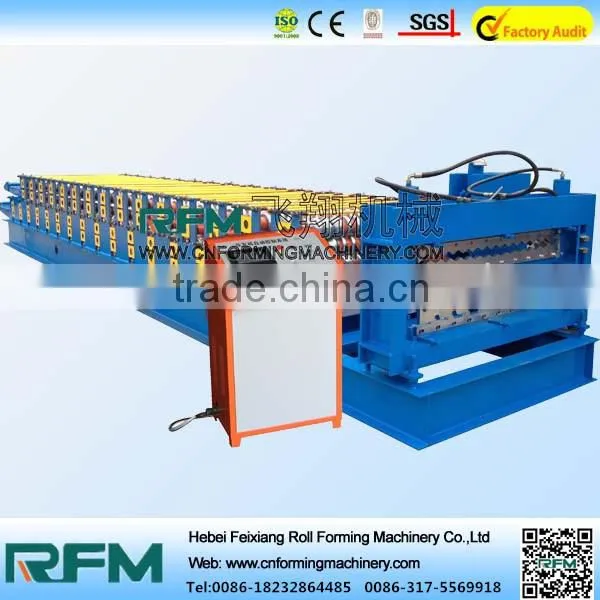

| Main forming machine | 1 set |
PLC control system |
1set |
| oil pump | 1 set |
| product | 1 set |
3. Technical specifications
1Manual inner tight decoiler
a. coil inner diameter 450mm-550mm
b. maximum width of coiling1200mm
c. maximum weight of loading5000kg
4.Main forming machine
a. number of forming steps depend on the machine
b. material of shaft45# steel . Outer diameter70mm
c.main motor power3kw
d. The speed of forming:8-10/min
5.hydraulic cutter
a. material of blade:Cr12 mould steel quenched treatment60-62
b. cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(main motor stop cutting)
6.the electrical control system
a. The Brand of display:Taida
b.The main computer (PLC):Tai Da DVP14
7.Hydraulic system
a. Adopting advanced hydraulic system of Tai Wan
b. Power:3kw
8.The equipments coating , package
a.the coating adopt international general shade-guide
b.The package :simple waterproof package.
9.the spare parts of the equipment .
a.the element of easy damaging :contactor conk: 2 unit ,fuse: 4 set
b.the hydraulic sealing up cushion: 1set
c.Bolt spanner:1 set
10.Terms)
1).The payment terms: Pay 30% after signed the contract ,Pay 70% after check and accept before deliver .
2).Warranty : One year ,and we will provide the technical support for the whole life .
3).When picking up goods, our company will provide the operating instruction book ,the flow drawing of equipment , installing sketch map of equipment ,The hydraulic principle chart, the element of easy damaging ,the total chart of equipment .
4). Delivery time : Within 45 working days after receiveing deposit.
Company photo( directly manufacturer,have main company and branch company
