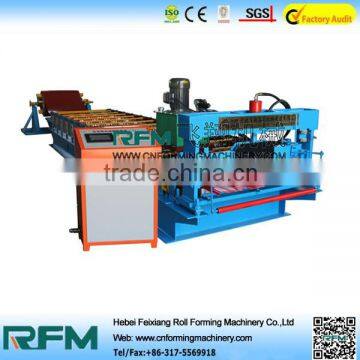

FX cold embossing machine
1.The Chart of Process Flow
Decoler -active feeding-forming -caculate length --automatic cutting --product
2. The introduction of equipment
Hydraulic decoiler ,roll forming machine, hydraulic cutting ,electric system,hydraulic system, out put stand
3. Technical specifications
1automatic inner tight decoiler
a. coil inner diameter 450mm-550mm
b. maximum width of coiling1250mm
c. maximum weight of loading5000kg
4.Main forming machine
a. number of forming steps depend on the machine
b. material of shaft45# steel adjustable treatment. Outer diameter70mm
c.main motor power3kw
d. The speed of forming:8-10m/min
e stand350# steel welding
f. the plating chromium of roller surface0.05mm
5.hydraulic cutter
a. material of blade:Cr12 mould steel with quenched treatment60-62
b. cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(main motor stop cutting)
6.the electrical control system
a. The Brand of display:
b.The main computer (PLC):Tai Da DVP14
7.Hydraulic system
a. Adopting advanced hydraulic system of Tai Wan
b. Power:3kw
8.The equipments coating , package
a.the coating adopt international general shade-guide
b.The package :simple waterproof package.
9.the spare parts of the equipment .
a.the element of easy damaging :contactor conk: 2 unit ,fuse: 4 set
b.the hydraulic sealing up cushion: 1set
c.Bolt spanner:1 set
10.Terms)
1).The payment terms: Pay 30% after signed the contract ,Pay 70% after check and accept before deliver .
2).Warranty : One year ,and we will provide the technical support for the whole life .
3).When picking up goods, our company will provide the operating instruction book ,the flow drawing of equipment , installing sketch map of equipment ,The hydraulic principle chart, the element of easy damaging ,the total chart of equipment .
4). Delivery time : Within 45 working days after receiveing deposit.
Certificated:ISO9001:2000
