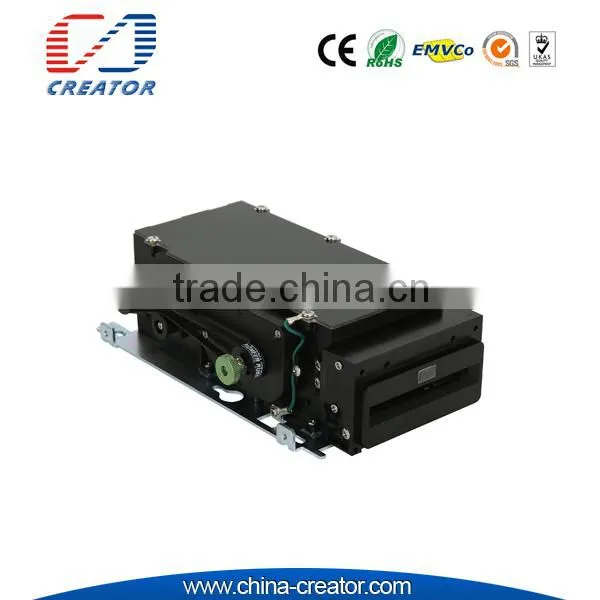

Motorized Card Reader CRT-310N
Model: CRT-310N
Quick Details
CRT-310N is motorized card reader equipment which is by the way of “Auto insert/eject card, 3 in one”.
Features
Motorized card reader CRT-310-N with below main features:
- Three in one: RFID/IC card read/write, magnetic stripe card read only
Electric shutter,
- Auto insert/eject card from the front, Insert and eject the card from both the front and the rear side
- RS232 interface
- DC12V ±5%
- Installation dimension and bezel dimension is fully compatible with 3K7
- Clearance of abnormal card
- Fault tolerance processing is the same as some other brands
- Small-size controllable electric shutter
- Support warped card mechanism design
- Power-fail protection
- PSAM board for option
Applications
- Kiosk terminals
- Payment systems
- Traffic control systems
- ATM
Specifications
Item |
Description |
Magnetic stripe |
ISO7810 ID-1,ISO7811 |
Contact smart card |
ISO7816-2 |
Contactless smart card (optional) |
ISO14443 TYPE A&B. |
Interface |
RS232 interface |
Power |
DC12V±5% |
Life time |
Magnetic head: 600,000 passes IC card contact:300,000 passes Motor: 1,000,000 passes |
Environment conditions |
Operation:0~50℃/0 ~ 90% RH(Non condensing) |
Storage:-25~70℃/0 ~ 90% RH(Non condensing) | |
Dimension |
96.5x167x51.5mm |
Weight |
Approx 530g |
Competitive Advantages
- Small-size controllable electric shutter
- Support warped card mechanism design
- Power-fail protection
- Long life 1,000,000 times for transportation
- Installation dimension and bezel dimension are compatible with 3K7
Fault tolerance processing
- Support IAP online download
