ISO14443 RFID Motorized Card Reader With RS232 Interface , IC/RFID/Magnetic Stripe Card Reader
Quick Detail:

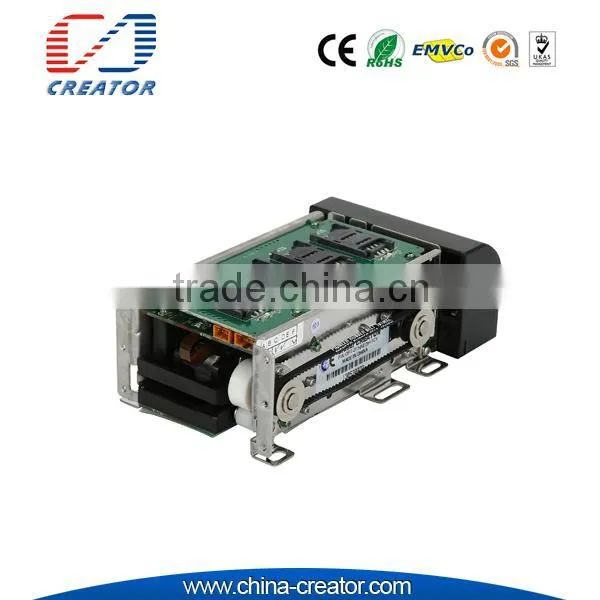

CRT-310 series are motorized card reader equipments for RFID/IC /magnetic stripe card operation, with the function of the card entry from front/rear insertion/ejection.
Description:
Motorized card reader CRT-310 with below main features:
² Insert and eject the card from both front and rear side
² RS232 interface
² DC12V ±5%
² Power-fail protection
² Deal with abnormal cards function
² Electric shutter and mechanical shutter for option
² PSAM board for option
² Support IAP Download
Applications:
Kiosk terminals
Payment systems
Access control terminals
Specifications:
Card standard |
Magnetic Card: ISO7810 ID-1,ISO7811 IC Card: ISO7816-2 RF Card: ISO14443 TYPE A&B |
Life time |
Magnetic head:500,000 passes IC card contact:300,000 passes Motor:300,000 passes |
Communication |
RS232 interface |
Power supply |
DC12V±5% |
Current consumption |
Static Current: 110mA Peak Current: |
Temperature/Humidity |
Operation:0~50℃/0 ~ 90% RH(Non condensing) Storage:-20~70℃/0 ~ 90% RH(Non condensing) |
Dimension (LxWxH) |
148x86x48mm |
Weight |
Approx 410g |
Competitive Advantage:
RFID/IC card read/write, magnetic stripe card read only.
Automatic insertion/ejection of the cards
Insert and eject card from both front and rear
Electric and mechanical shutter for option
Power-fail protection
PSAM board and LED for option
Abnormal card processing
Support IAP download
