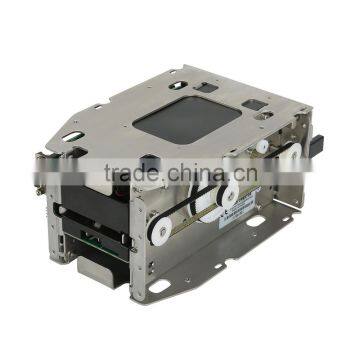

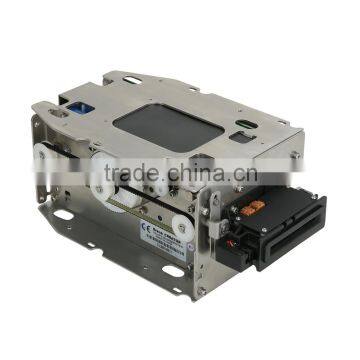

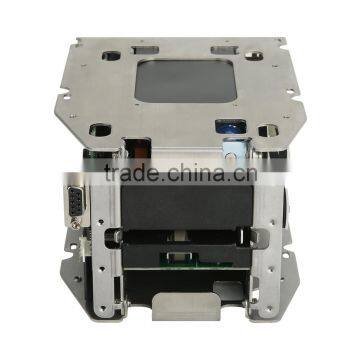

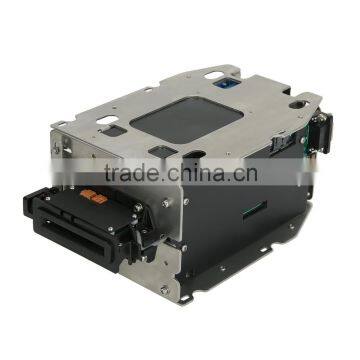

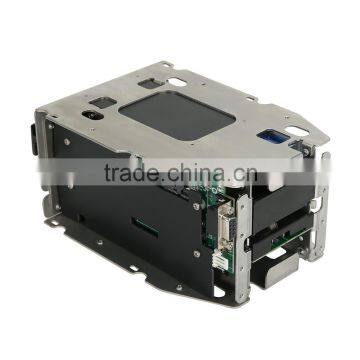

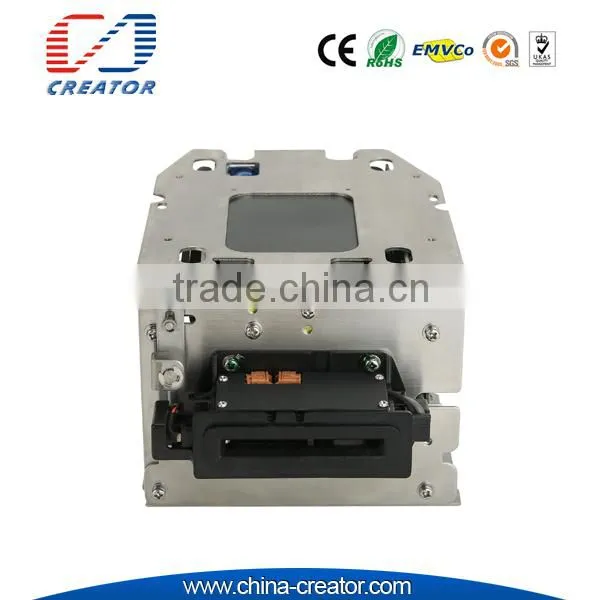

Motorized Card Reader CRT-350
Model: CRT-350
Quick Details
CRT-350 series are motorized card reader and writer which can read/write IC/RFID/Magnetic card.
Features
Motorized card reader CRT-350 with below main features:
-3 in 1:IC/RFID/Magnetic card read/write
-Hi-Co (2500 Oe-4000 Oe, 2750 Oe the best)& Lo-co(250 Oe-700 Oe, 300 Oe the best) for option
-Capture card from the front and rear
-Reject abnormal card and extra long card
-Two anti-skimming ways: hardware and software
-Multiple kinds of shutter options
-Optional components: power-fail protection & PSAM board(4/8bits)
-Conform to WOSA/XFS 2.0/3.0 and SP provided
-Optional interface: RS232 & USB(HID)
-Life time: 1,000,000 times min.
-Conform to EMV and ROHS standard
Applications
-ATM
-Payment systems
-Kiosk terminals
-Access control terminals
-Security terminals
-Parking systems
Specifications
Item |
Description |
Magnetic stripe |
ISO7810 ID-1,7811 |
Contact smart card |
ISO7816-2 |
Support T=0,T=1 CPU Card | |
Support Mifare S50,S70,UL Card | |
Contactless smart card (optional) |
ISO14443 TYPE A&B |
Interface |
RS232 interface & USB interface option (HID) |
Power |
DC24V±5% |
Life time |
Magnetic head:500,000 passes IC card contact:300,000 passes Motor:500,000 passes |
Environment conditions |
Operation:0~50℃/0 ~ 90% RH(Non condensing) |
Storage:-25-80℃/0 ~ 90% RH(Non condensing) | |
Dimension |
215x124x90mm |
Weight |
Approx .1.8kg |
Competitive Advantages
- High security design
- Compatible with other brand’s external dimension and communication protocol
- PSAM Board for option
- Reject abnormal card automatically
- Tamper-Proof Design
- Hi-co & Lo-co for option, if choose Hi-co, Both Lo-co and Hi-co can be operated.
