Creator(Shenzhen) Tech Co., Ltd.: Shenzhen, Guangdong, China; Main products: Card reader, Card dispenser, Card issuing machine, Cash/Bill acceptor, RF module

Home > Products > Motorized card reader > Strong Card Compatibility Card Reader for Vending Machine

Strong Card Compatibility Card Reader for Vending Machine

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Shenzhen
Payment TermsT/T Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

CRT, Creator

Model Number

CRT-350, CRT-350

Product Description

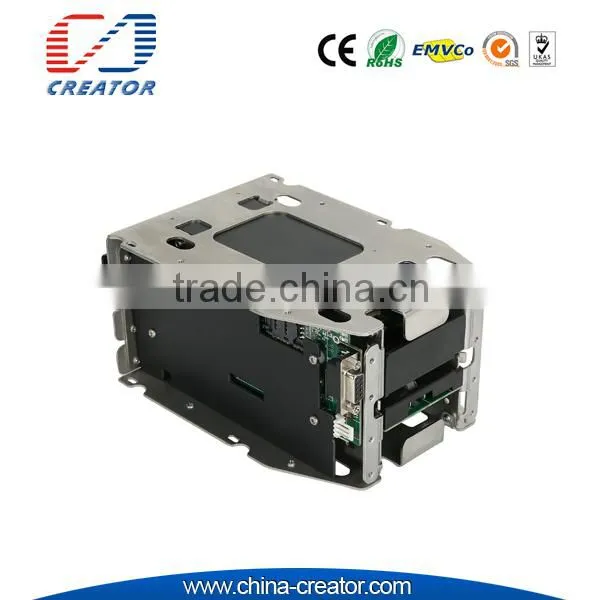

Motorized Card Reader CRT-350

Model: CRT-350

Quick Details

CRT-350 series are motorized card reader and writer which can read/write IC/RFID/Magnetic card.

Features

Motorized card reader CRT-350 with below main features:

-3 in 1:IC/RFID/Magnetic card read/write

-Hi-Co (2500 Oe-4000 Oe, 2750 Oe the best)& Lo-co(250 Oe-700 Oe, 300 Oe the best) for option

-Capture card from the front and rear

-Reject abnormal card and extra long card

-Two anti-skimming ways: hardware and software

-Multiple kinds of shutter options

-Optional components: power-fail protection & PSAM board(4/8bits)

-Conform to WOSA/XFS 2.0/3.0 and SP provided

-Optional interface: RS232 & USB(HID)

-Life time: 1,000,000 times min.

-Conform to EMV and ROHS standard

Applications

-ATM

-Payment systems

-Kiosk terminals

-Access control terminals

-Security terminals

-Parking systems

Specifications

Item	Description
Magnetic stripe	ISO7810 ID-1,7811
Contact smart card	ISO7816-2
	Support T=0,T=1 CPU Card Support T=0,T=1 SIM Card
	Support Mifare S50,S70,UL Card
Contactless smart card (optional)	ISO14443 TYPE A&B
Interface	RS232 interface & USB interface option (HID)
Power	DC24V±5%
Life time	Magnetic head:500,000 passes IC card contact:300,000 passes Motor:500,000 passes
Environment conditions	Operation:0~50℃/0 ~ 90% RH(Non condensing)
Environment conditions	Storage:-25-80℃/0 ~ 90% RH(Non condensing)
Dimension	215x124x90mm
Weight	Approx .1.8kg

Competitive Advantages

- High security design

- Compatible with other brand’s external dimension and communication protocol

- PSAM Board for option

- Reject abnormal card automatically

- Tamper-Proof Design

- Hi-co & Lo-co for option, if choose Hi-co, Both Lo-co and Hi-co can be operated.
