Easy Install With Lock Function Vending Machine With Card Reader

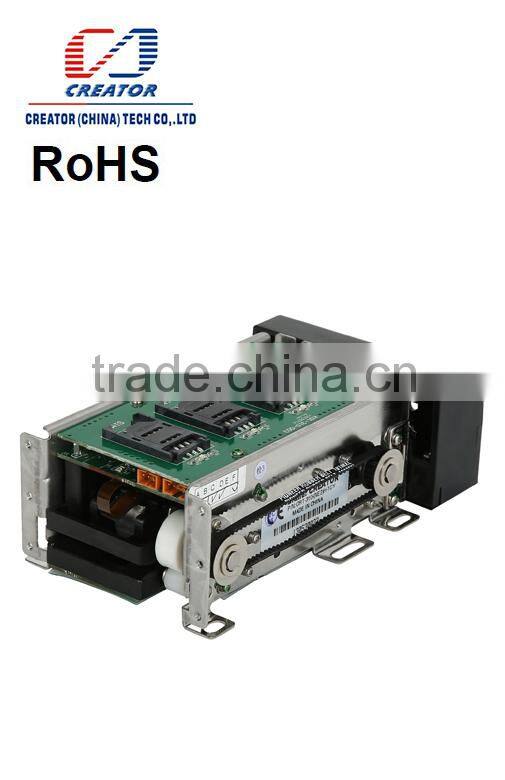

Easy Install With Lock Function Vending Machine With Card Reader photo-1

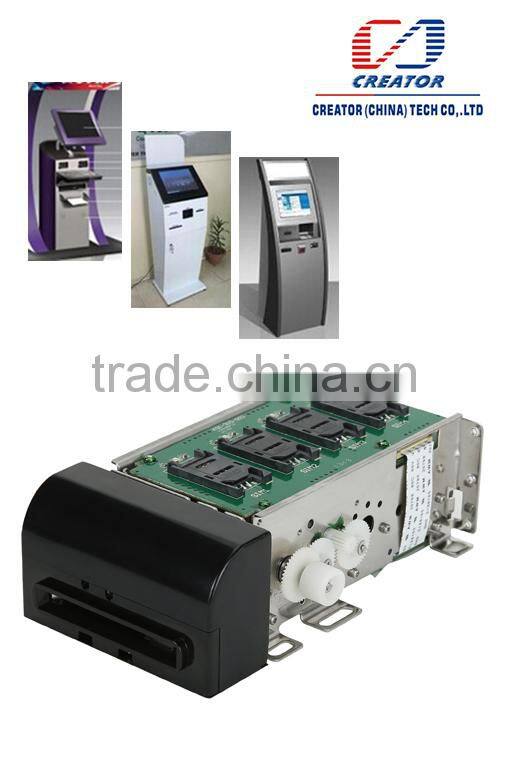

Easy Install With Lock Function Vending Machine With Card Reader photo-2

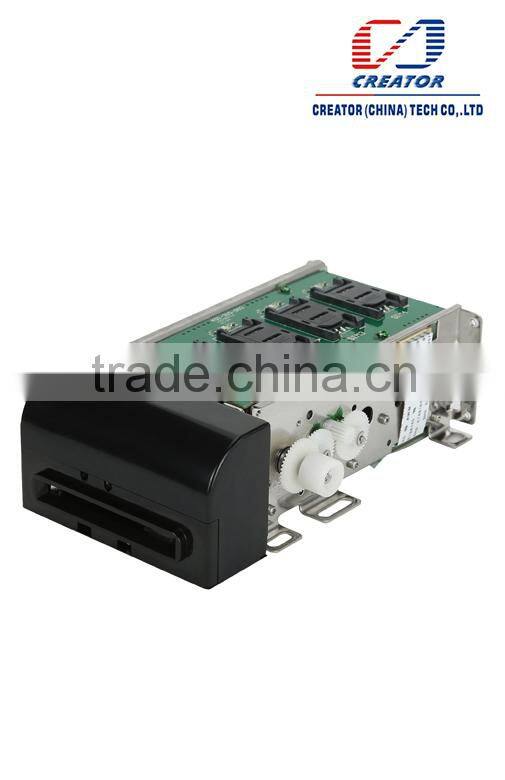

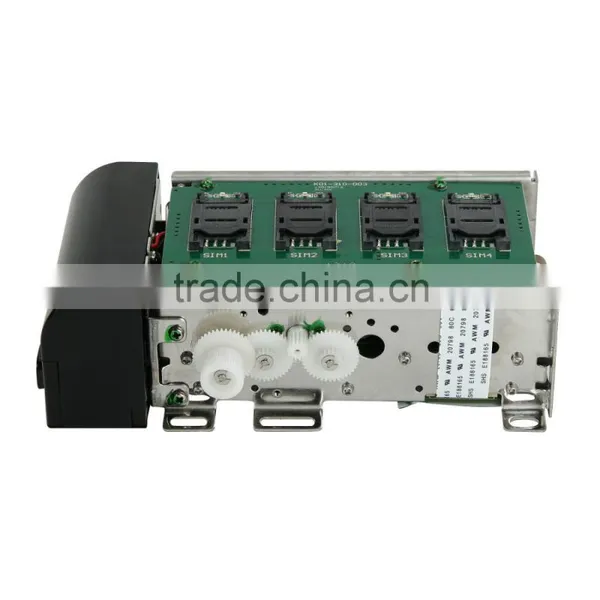

Easy Install With Lock Function Vending Machine With Card Reader photo-3

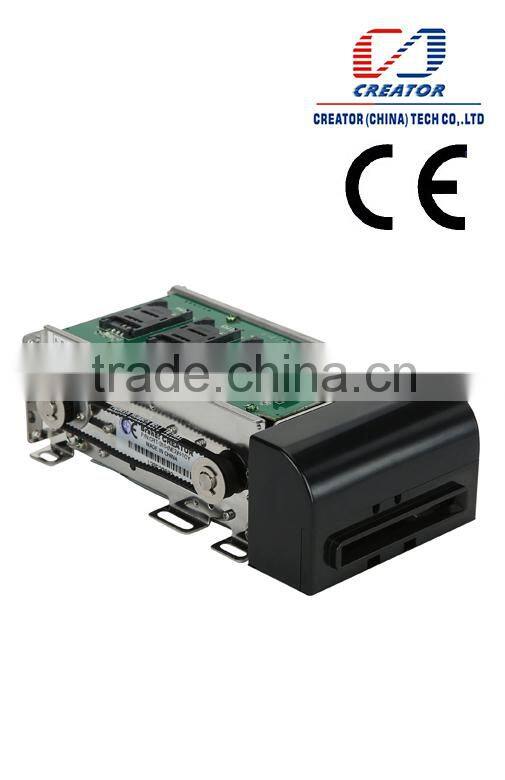

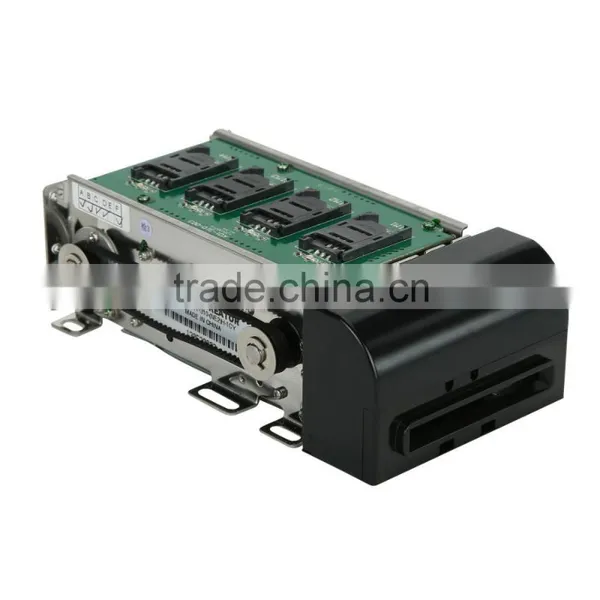

Easy Install With Lock Function Vending Machine With Card Reader photo-4

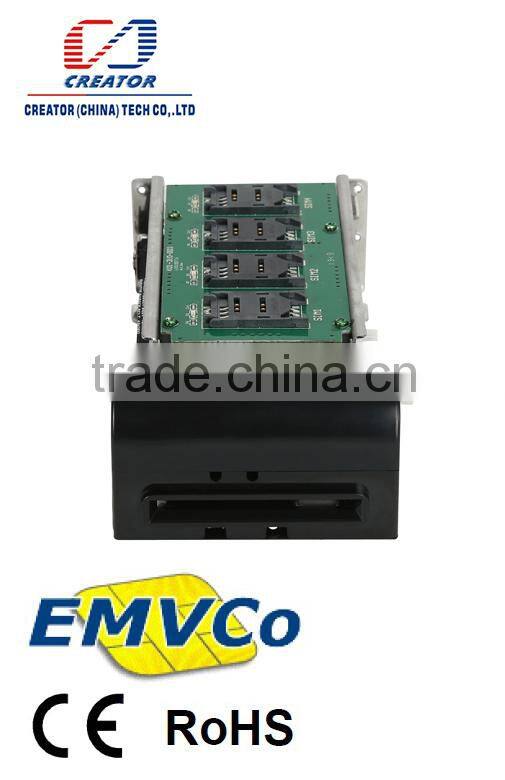

Easy Install With Lock Function Vending Machine With Card Reader photo-5

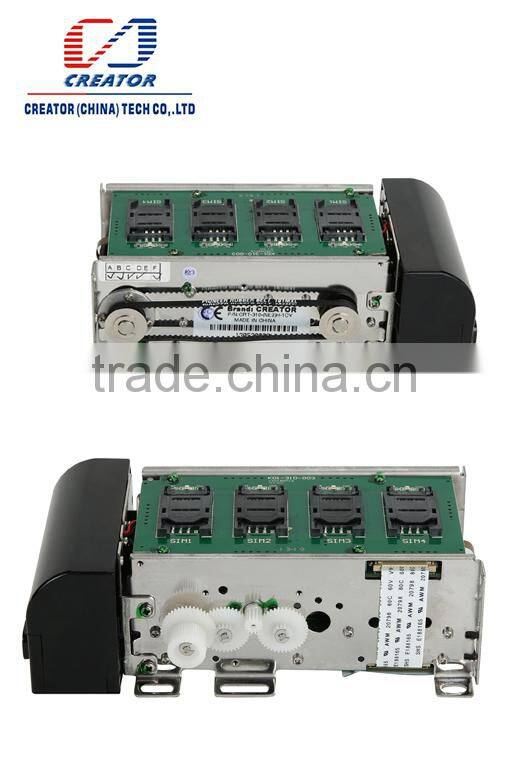

Easy Install With Lock Function Vending Machine With Card Reader photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
CRT
Model Number:
CRT-310
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CRT
Model Number CRT-310

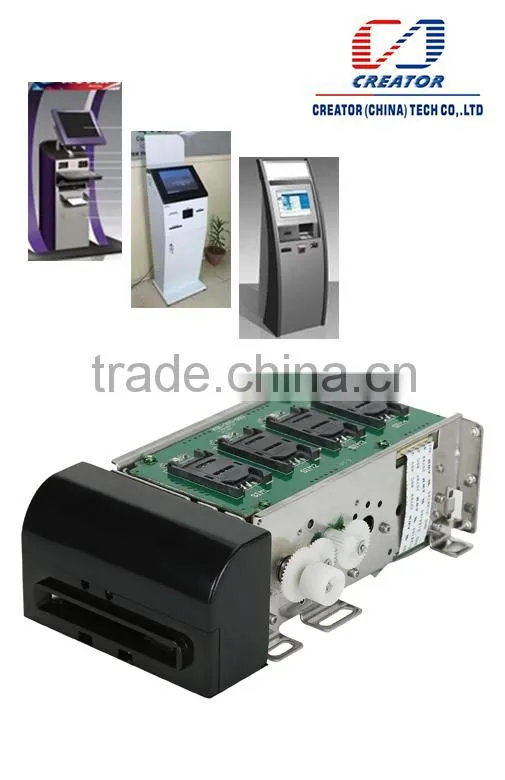

easy install with lock function vending machine with card reader

ISO14443 RFID Motorized Card Reader With RS232 Interface , IC/RFID/Magnetic Stripe Card Reader



Quick Detail:



CRT-310 series are motorized card reader equipments for RFID/IC /magnetic stripe card operation, with the function of the card entry from front/rear insertion/ejection.





Description:



Motorized card reader CRT-310 with below main features:



²  Insert and eject the card from both front and rear side



²  RS232 interface



²  DC12V ±5%



²  Power-fail protection



²  Deal with abnormal cards function



²  Electric shutter and mechanical shutter for option



²  PSAM board for option



²  Support IAP Download







Applications:



Kiosk terminals

Payment systems

Access control terminals





Specifications:



Card standard

Magnetic Card: ISO7810 ID-1,ISO7811 IC Card: ISO7816-2 RF Card: ISO14443 TYPE A&B

Life time

Magnetic head:500,000  passes

IC card contact:300,000 passes

Motor:300,000 passes

Communication

RS232 interface

Power supply

DC12V±5%

Current consumption

Static Current: 110mA

Peak Current:

Temperature/Humidity

Operation:0~50℃/0 ~ 90% RH(Non condensing) Storage:-20~70℃/0 ~ 90% RH(Non condensing)

Dimension (LxWxH)

148x86x48mm

Weight

Approx 410g





Competitive Advantage:



RFID/IC card read/write, magnetic stripe card read only.

Automatic insertion/ejection of the cards

Insert and eject card from both front and rear

Electric and mechanical shutter for option

Power-fail protection

PSAM board and LED for option

Abnormal card processing

Support IAP download
