Corrugated Metal Roof Panel Forming Machine on Slae
- Tianjin
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 15-20m/min | Place of Origin | Hebei, China | |
| Brand Name | Feixiang | Model Number | FX-1000 | |
| Power(W) | 4KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | as design | Weight | 3.5T | |
| Certification | CE ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Corrugated metal roofing panel forming machine on sale
Features and Structure:
corrugated metal roofing panel forming machine
* Multi-functional converter controlled speed regulation by PLC
* Main-machine interface touch screen for easy operation
* The machine can be used for different type of corrugated tile
*Automatic electric control system make production safety ang efficiency
*Solid shaft and high quality rollers make the machine working smoothly and endurable

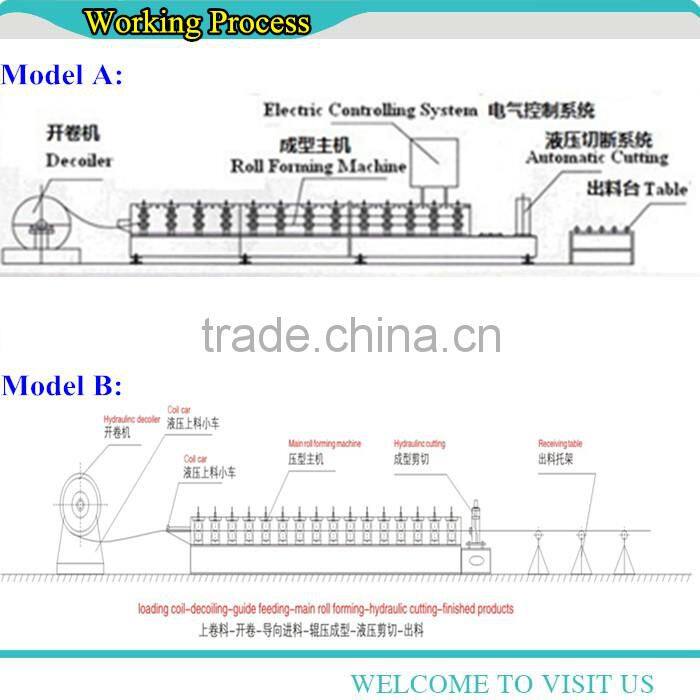

1.Production process
Uncoiling→Feeding material into machine→Forming→Measuring length→
Step formed→ Auto cutting→Products receiving
2.Machine details
a.Decoiler:
You can choose various kind of decoiler for use.

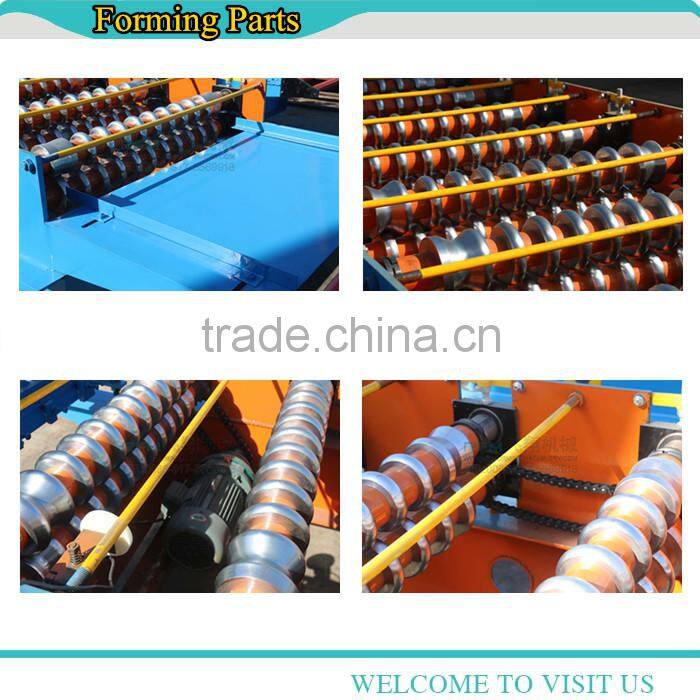

b.Main forming parts:
-----shaft material:45# steel ,ourt diameter is 70mm
-----roller material:Cr12 steel,with heat treated
-----12 forming steps (according to the profile)
-----chains or gear transport

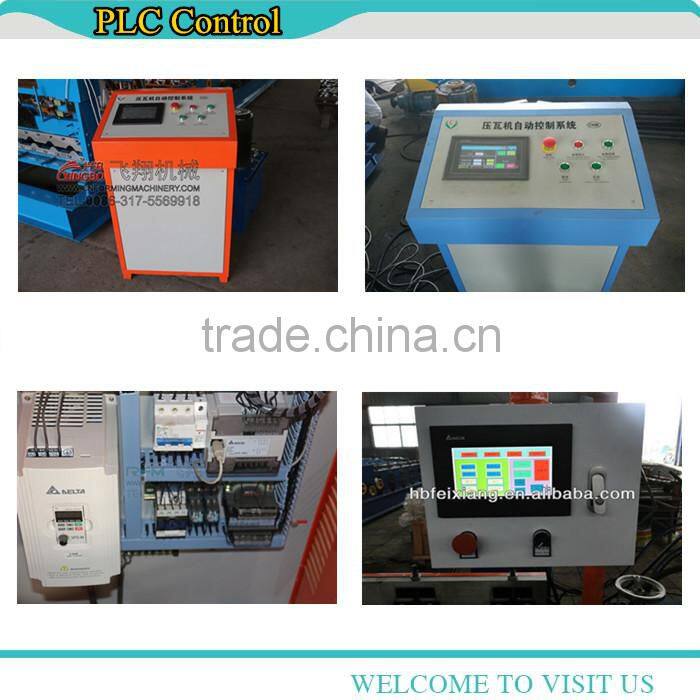

c.Electric and PLC control system
-----380v50hz3p or as request
-----you can choose text screen or touch screen
-----high quality of control system from delta,siemens,panasonic and so on
-----equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

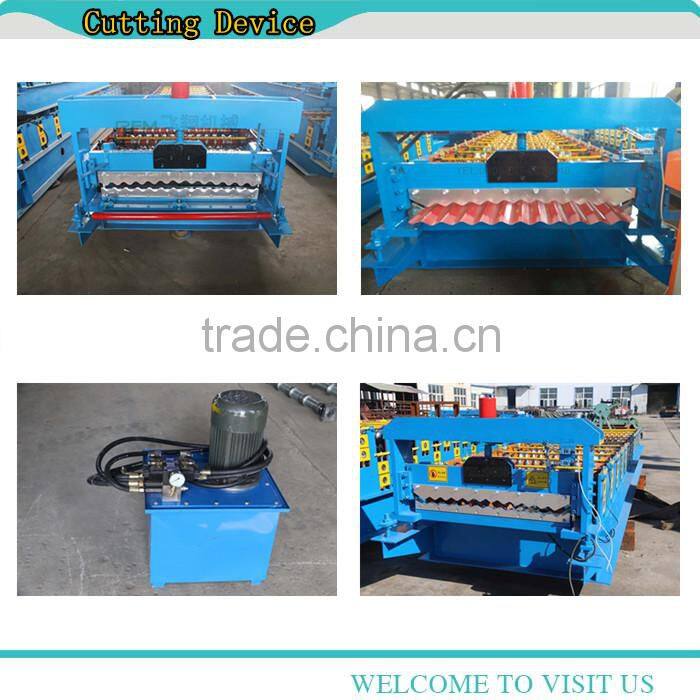

d.Cutting device
Note for use and maintenance
corrugated metal roofing panel forming machine
Hebei Feixiang Roll Forming Machiney Co,Ltd;
a. Two decades professional cold steel forming equipments manufacturer

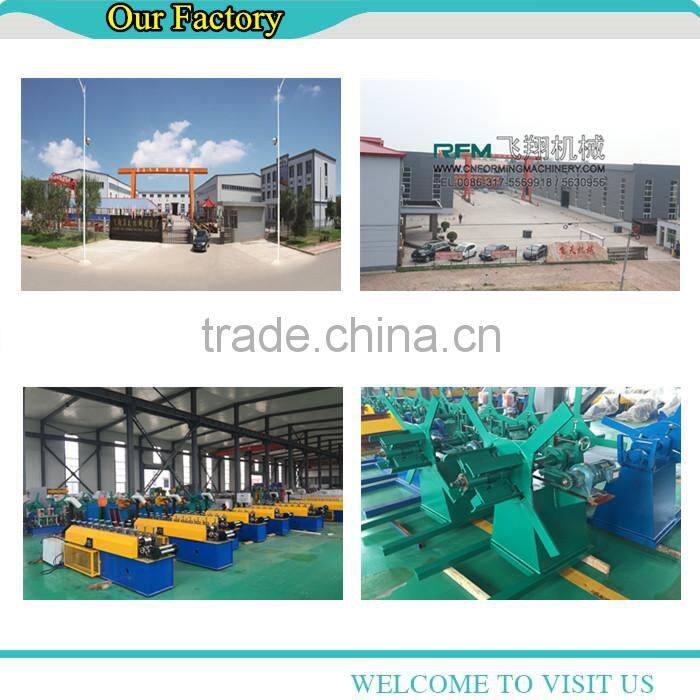

b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas

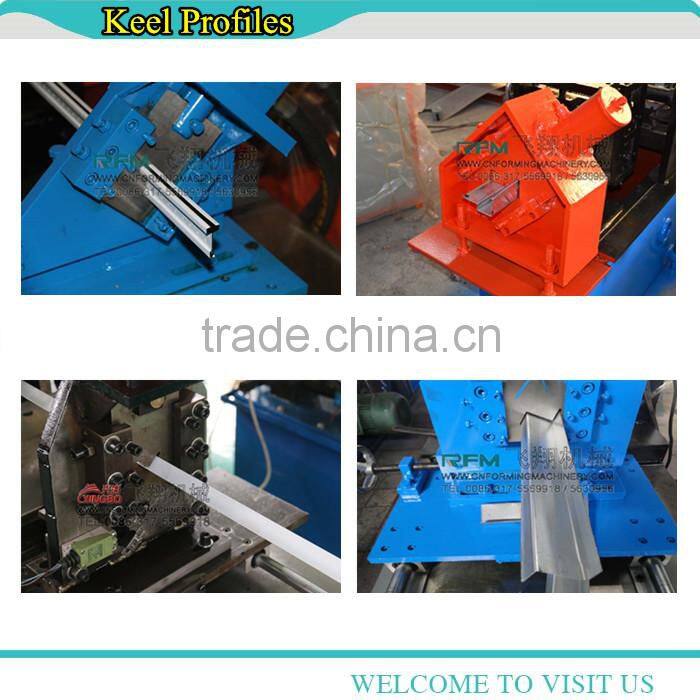

For keel machine,pls click here

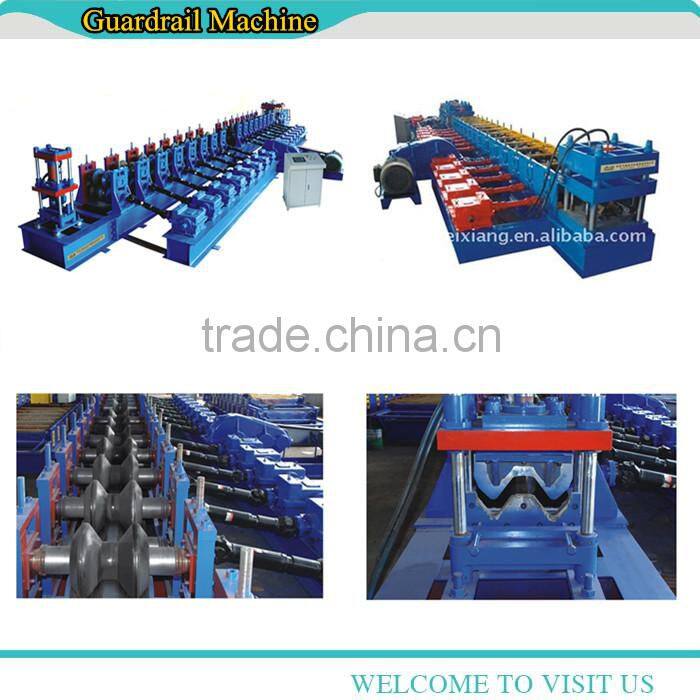

For guardrail forming machine,pls click here
