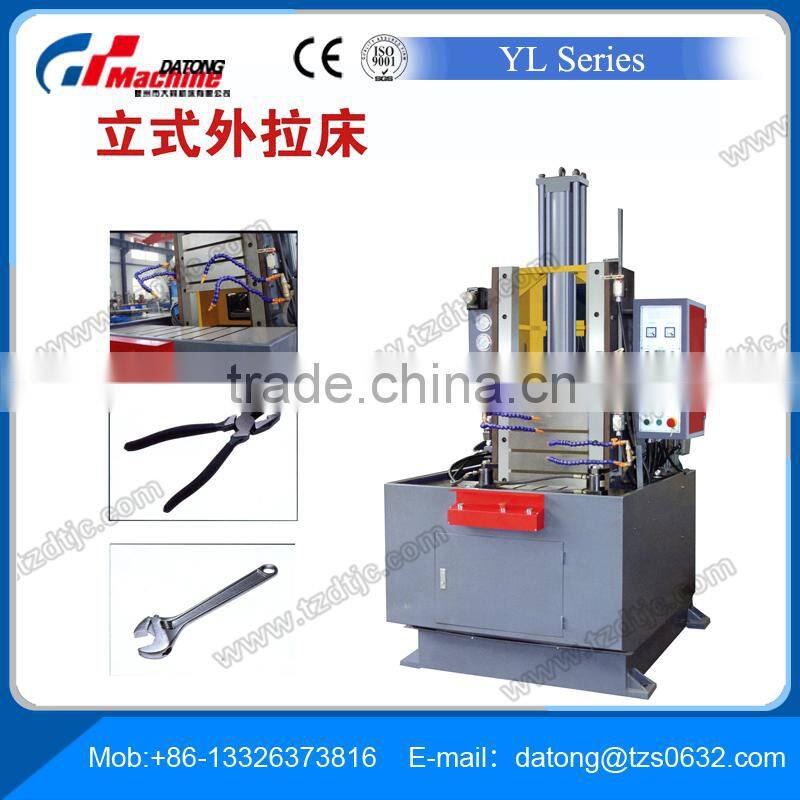

Help CenterYL Series Vertical External Broaching Machine(pull Broach Machine)
Related Products
-
Supply Planing MachineUS$ 1,000 - 10,000MOQ: 1 Set -
High Quality Planing Machine For SaleUS$ 1,000 - 10,000MOQ: 1 Set
-
Supply Vertical Slotting Machine B5020D High QualityUS$ 6,888 - 7,200MOQ: 1 Set
-
Supply Vertical Slotting Machine B5020 High QualityUS$ 6,488 - 7,000MOQ: 1 Set
-
Supply Vertical Slotting Machine B5020(D) High Quality Quality ChoiceUS$ 7,000 - 7,000MOQ: 1 Set
Description of the machine
These machine are disigned for broaching machine plane and shape in manss and batch
production with high efficiency.
These machine are driven by hydraulic power and equipped with a smoothly device against
overload.the machines operated smoothly and give a stepless adjust mean fo cutting speed and
they can be operated in four kind of working cycles such as automatic,semiautomatic and two
step by step cycles.Main actions of the machine can be individually adjusted by jerking motion
so as to meet the requirements of various purpose operation.The machines are operated
easily on the main button control station.
Technical specifications:
Model & Name |
YL Series Vertical External Broaching Machine |
|||||
Brand |
DATONG |
|||||
MODEL |
YL7105 |
YL7110 |
YL7116 |
|||
Rated pressure(KN) |
50 |
100 |
200 |
|||
The main slide plate size(mm) |
380 *800 |
400 *800 |
420 *800 |
|||
|
The main slide carriage effective working stroke(m/min) |
800 |
800 |
800 |
|||
The main slide carriage travel speed(CVT) |
2-9 |
1-7 |
1-6 |
|||
The main slide carriage return travel speed(m/min) |
18 |
13 |
10 |
|||
|
Main motion system |
Power of main motor(KW) |
7.5 |
11 |
15 |
||
|
ing pressure of system(Mpa) |
10 |
10 |
10 |
||
|
Fuel tank capacity(L/min) |
18 |
13 |
10 |
||
Fixture system |
Power of main motor(KW) |
0.75 |
1.1 |
1.1 |
||
|
Fuel of supply(L/min) |
12 |
15 |
15 |
||
|
ing pressure of system(Mpa) |
6 |
6 |
6 |
||
Cooling system |
Motor power(KW) |
0.75 |
0.75 |
0.75 |
||
|
Liquid quantity(L/min) |
25 |
25 |
25 |
||
