Vertical Turret Milling Machine X6325

Vertical Turret Milling Machine X6325 photo-1

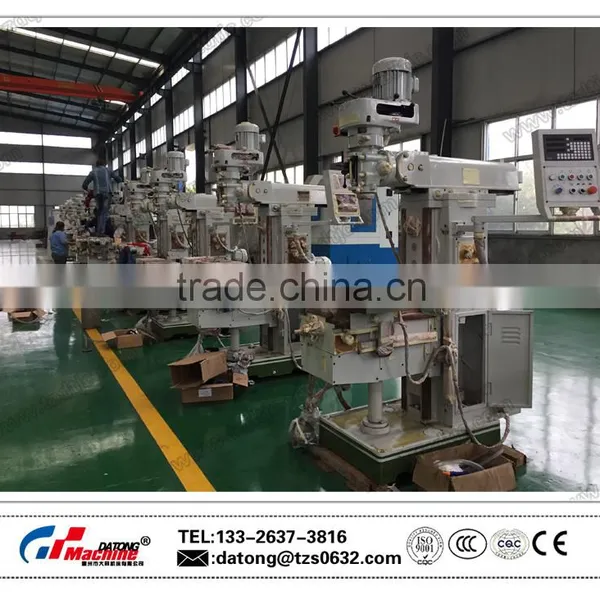

Vertical Turret Milling Machine X6325 photo-2

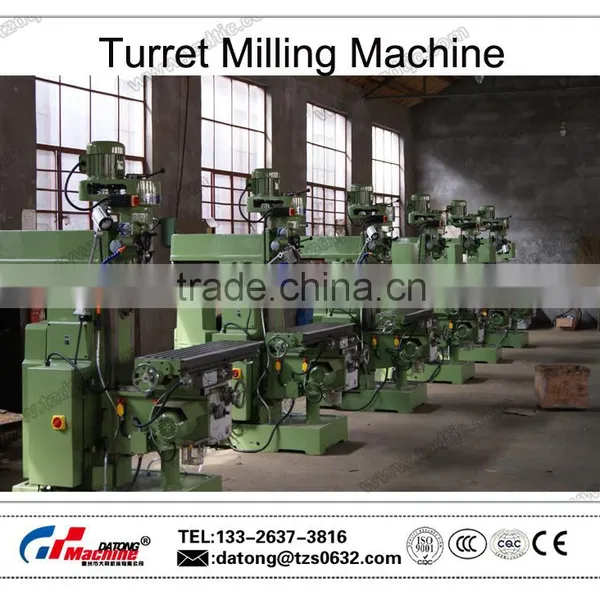

Vertical Turret Milling Machine X6325 photo-3

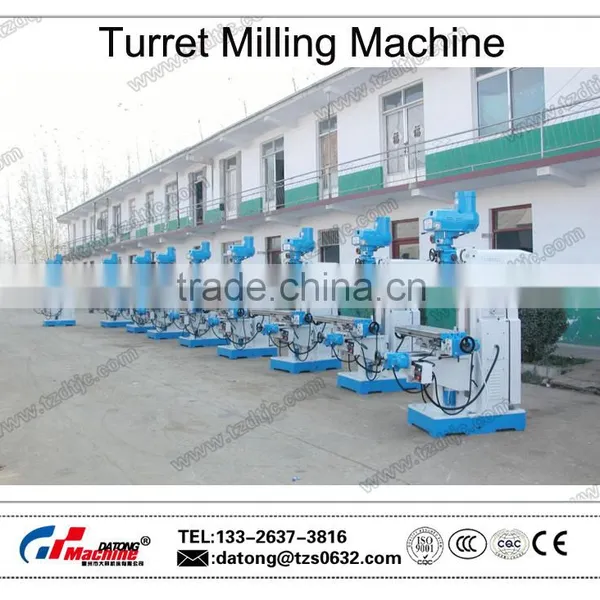

Vertical Turret Milling Machine X6325 photo-4
US$ 5,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
DATONG
Payment & Shipping
Payment Methods:
Port of Shipment:
qindao.tinajin.shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name DATONG
Model Number X6325
Type Vertical
CNC or Not Normal
Voltage 220v/380v
Power(W) 3KW
Dimension(L*W*H) 1600X1400X2200mm
Weight 1400kg
Certification CE ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

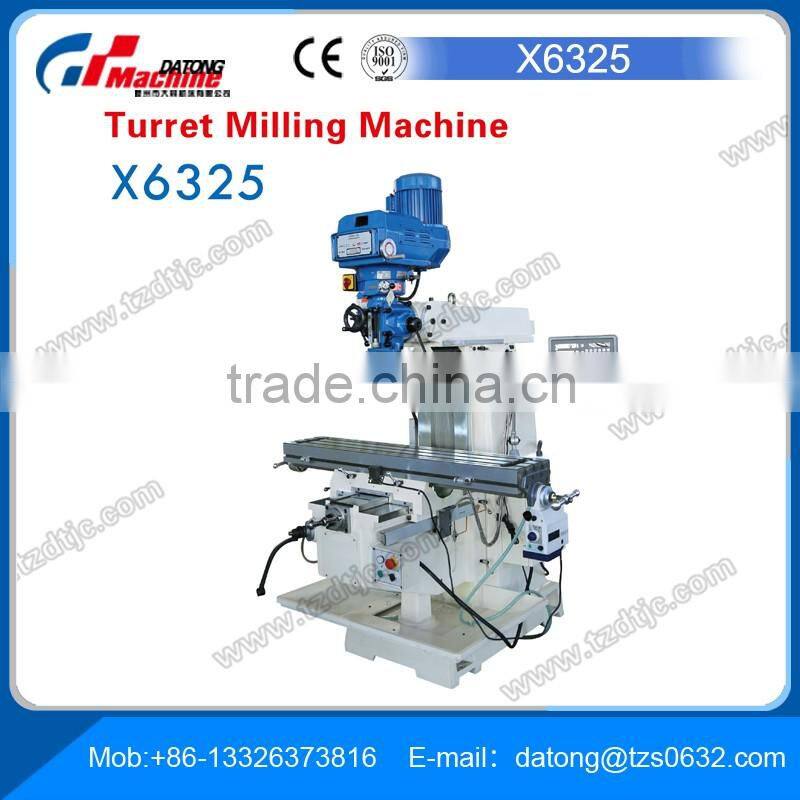

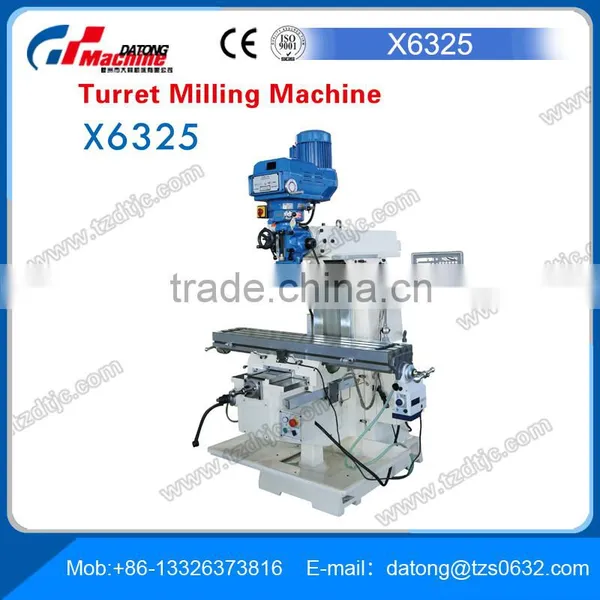

 Vertical Turret Milling Machine X6325



VerticalTurret Milling Machine X6325



Feature:



1.Table automatic feed on X,Y,Z direction by gear driven.
2.High speed millling head made in Taiwan
3.Hardened and ground guideways.
4.guideways by high frequency quenching.
5.Easy contro



Specification:





Model

X6325

Table size

254X1270mm

T-slots(NO./Width/Pitch)

3/16/70mm

Table Travel (X/Y/Z)

760/340/340mm

Distance between spindle nose and table surface

35-385mm

Spindle speed range

60-4200rpm

Main motor Power

3HP

Spindle hole taper

NT40

Travel of spindle sleeve

127mm

Arm travel

500mm

Feed of spindle sleeve

0.04/0.08/0.15mm/r

Swivel angle of vertical milling head

±45°

Overall size(L*W*H)

1600X1400X2200mm

Net weight

1400kg





Detailed Images

 Vertical Turret Milling Machine X6325



Vertical Turret Milling Machine X6325

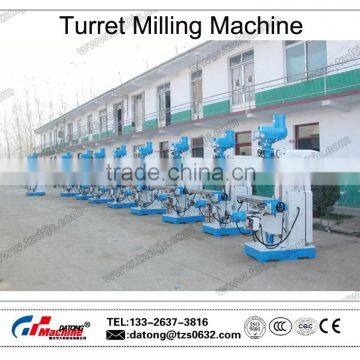

Packaging & Shipping

Vertical Turret Milling Machine X6325Vertical Turret Milling Machine X6325

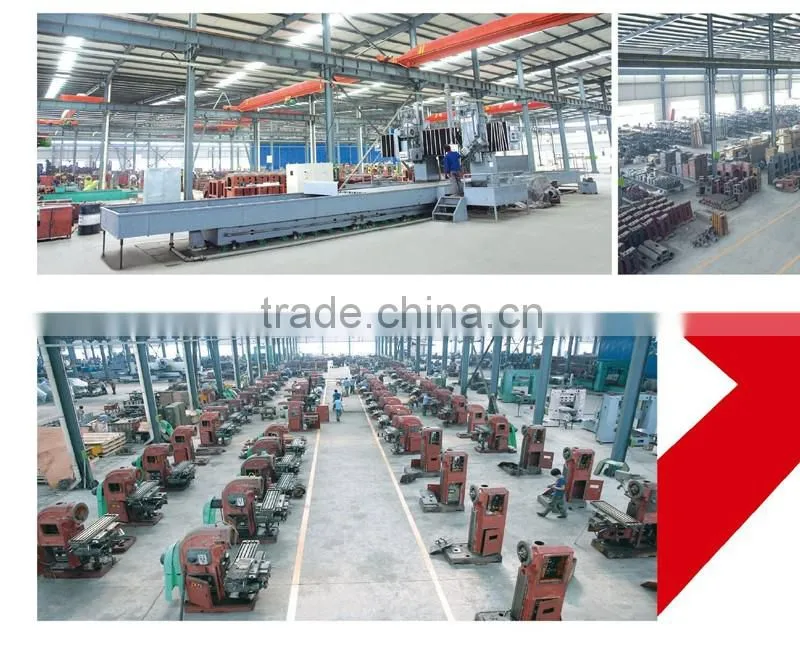

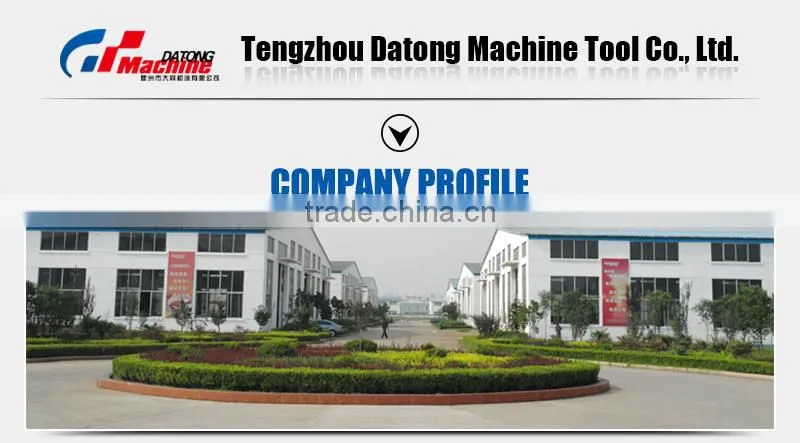

Company Information

Vertical Turret Milling Machine X6325

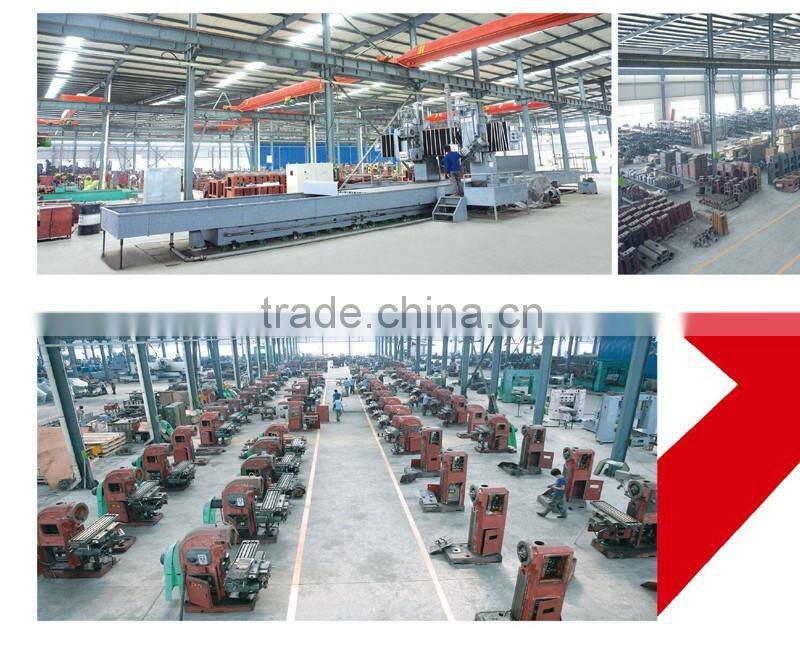

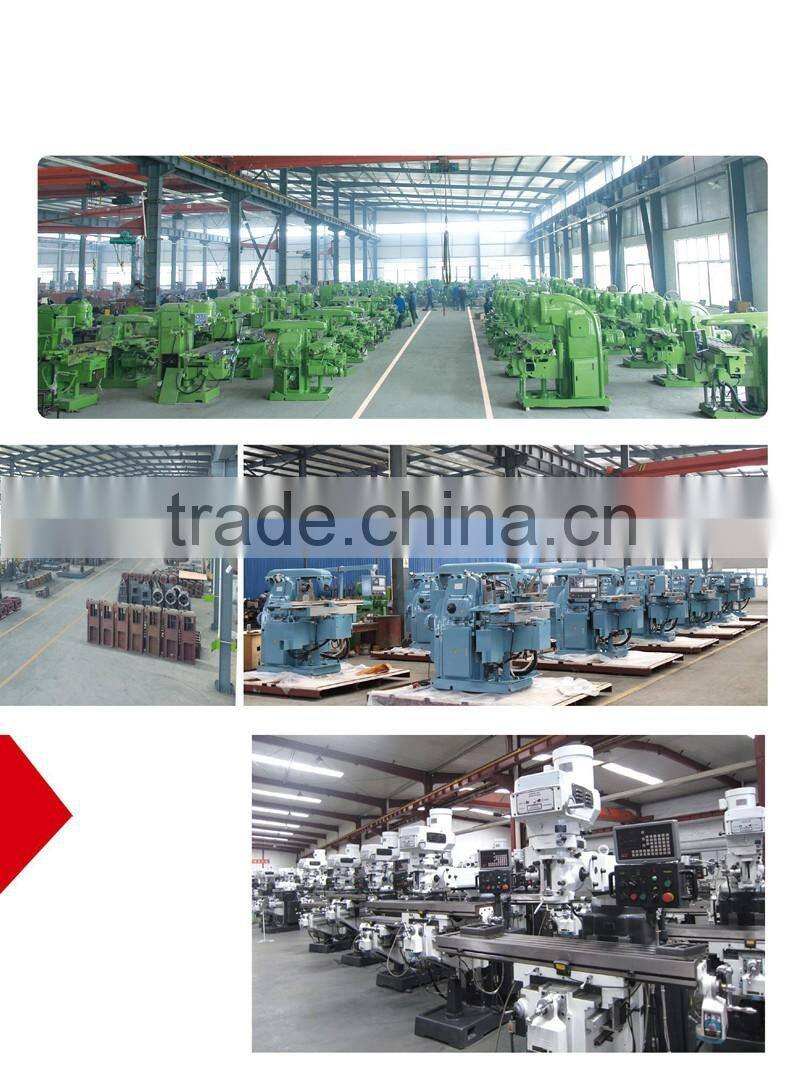

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.



Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have collegeducation which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.



"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.



The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!

Vertical Turret Milling Machine X6325

Vertical Turret Milling Machine X6325

Vertical Turret Milling Machine X6325

Our Services

Vertical Turret Milling Machine X6325

FAQ

Vertical Turret Milling Machine X6325Vertical Turret Milling Machine X6325
