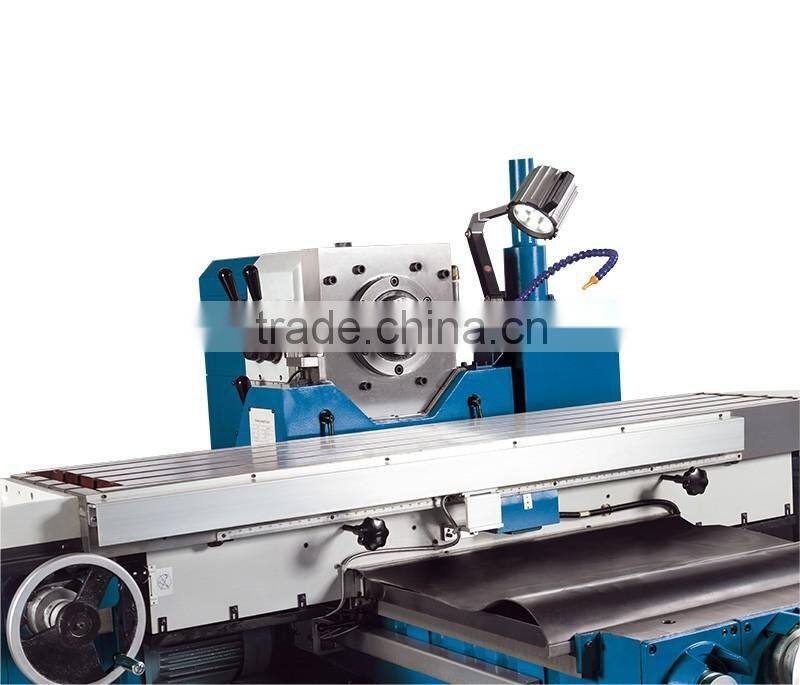

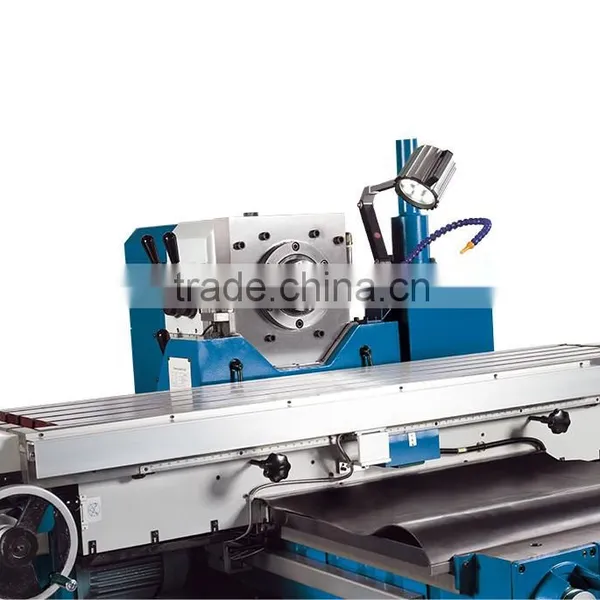

Bed-Type Milling Machine UBF1250 for sale
Feature:
1.Bed-type milling machine featuring a rigid design made of premium FC30 cast-iron
2.Machine column moves in Z direction, allowing high table loads
3.All guides are hardened and ground
4.Long table travel (1250 mm) and large table setup area (1800 x 400 mm) allow machining of large workpieces
5.All gears of the 8-step main spindle drive are hardened and ground for maximum tool life and quiet operation
6.Ideally stepped spindle speed range from 95 to 1200 rpm
7.Wide table and column box-ways ensure maximum rigidity and precision even at high table loads
8.Infinitely variable vertical, linear and cross feeds
9.Electric controls are positioned ergonomically within reach on a long arm
10.Central lubrication for simplified maintenance
Specification:
| Model | UBF1250 |
| Table set up area | 400X1800 mm |
| Table load capacity | 1000kg |
| Number of T-slots/Wideth/Spacing | 4/18mm/80mm |
| Spindle nose-to-table surface distance | 100-570mm |
| Speed height-adjustment (max.) | 1670mm/min |
| Travel X/Y/Z axis | 1250/540/470mm |
| Spindle speed (vertical) | 95 - 1250 (8Step) rpm |
| Spindle mount | SK 50 |
| Throat | 570 mm |
| Rapid feed X/Y/Z axis | 1200 mm/min |
| Feed speed X/Y axis | 16 - 1200 mm/min |
| Motor rating main drive | 7.5KW |
| Motor rating for X/Y/Z/W-axis drive | 1.5KW |
| Motor rating coolant pump | 0.12KW |
| Overall dimensions (length x width x height) | 3000x2535x2050 mm |
| Weight | 3200kg |
Standard Equipment:
3-axis position indicator, universal head, coolant system,
central lubrication, draw bar, work lamp,
foundation bolts M12 x 500 mm, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
