High-Capacity Bed-Type Milling Machine KB2500 for large parts and heavy machining

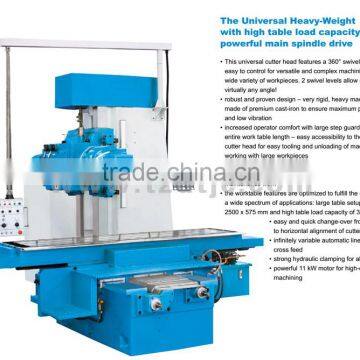

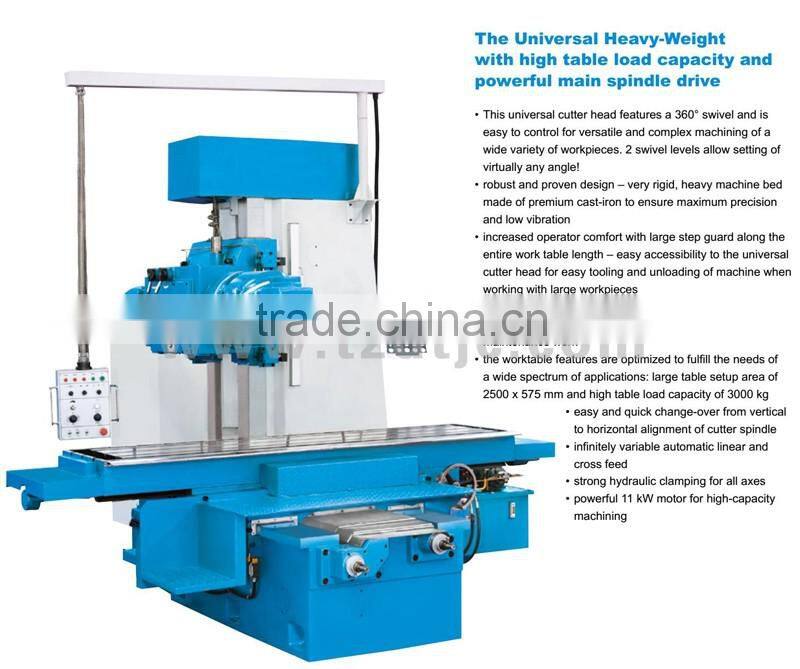

Feature:

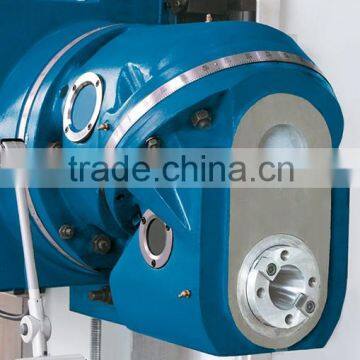

1.This universal cutter head features a 360° swivel and is easy to control for versatile and complex machining of a wide variety of workpieces. 2 swivel levels allow setting of virtually any angle!
2.Robust and proven design – very rigid, heavy machine bed made of premium cast-iron to ensure maximum precision and low vibration
3.Increased operator comfort with large step guard along the entire work table length – easy accessibility to the universal cutter head for easy tooling and unloading of machine when working with large workpieces
4.Robust guideways ensure maximum precision and durability; an automatic central lubrication system minimizes maintenance work
5.The worktable features are optimized to fulfill the needs of a wide spectrum of applications: large table setup area of 2500 x 575 mm and high table load capacity of 3000 kg
6.Easy and quick change-over from vertical to horizontal alignment of cutter spindle
7.Infinitely variable automatic linear and cross feed
8.Strong hydraulic clamping for all axes
9.Powerful 11 kW motor for high-capacity machining.
Specification:
| Model | KB2500 |
| Table set up area | 2500x575 mm |
| Number of T-slots/Spacing | 3/22/152mm |
| Spindle axis-to-table surface distance | 50-950mm |
| Speed height-adjustment (max.) | 1670mm/min |
| Travel X/Y/Z axis | 1800/600/900mm |
| Spindle speed (vertical) | 48 - 1440 rpm |
| Spindle mount | SK 50 |
| Milling Head swivel range | 360° |
| Rapid feed X/Y/Z axis | 3000/3000/1800 mm/min |
| Feed speed X axis | 20 - 2200 mm/min |
| Feed speed Y axis | 20 - 2200 mm/min |
| Feed speed Z axis | 12-1320 mm/min |
| Motor rating main drive | 11KW |
| Motor rating feed | 2KW |
| Motor rating coolant pump | 0.09KW |
| Overall dimensions (length x width x height) | 4300x3200x3300 mm |
| Weight | 10000kg |
Standard Equipment:
3-axis position indicator, collet chuck ISO 50 with collets 4,6,8,12,16,18,22,26 mm, reducing sleeve ISO 50 / MT4, coolant system, foundation bolts 11 x M24 x 500, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
