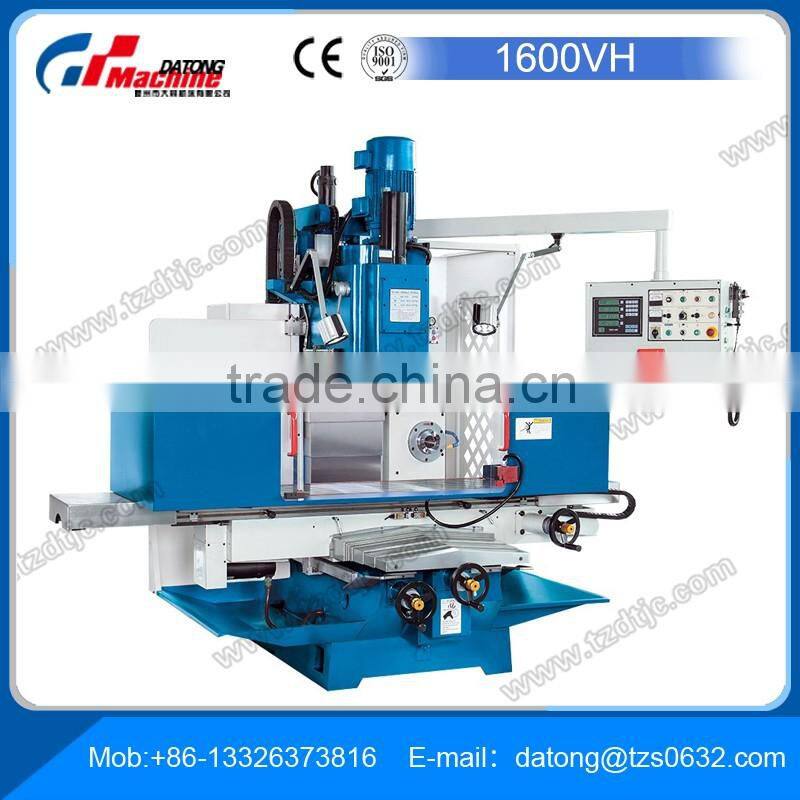

Bed-Type Milling Machine Predator 1600VH for sale
Feature:
1.This machine design features excellent load capacity, precision, and reliability
2.Heavy bed-type construction accommodates very heavy parts and powerful machining operations
3.High-strength, hardened FC-30 cast-iron ensures maximum rigidity and wear-resistance
4.Fine-ground and hardened box-ways with plastic counter-lamination on Y and Z
5.Linear measuring system on all 4 axes (X, Y, Z, and W)

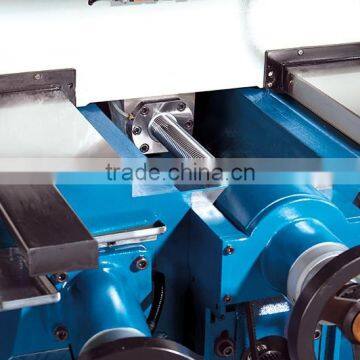

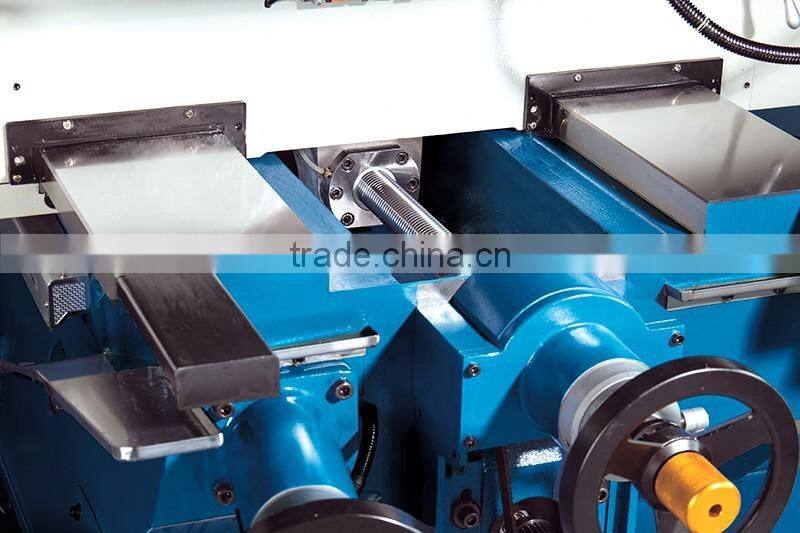

6.Large preloaded ball screws with preloaded spindle nuts on all axes ensure long lasting high accuracy
7.All axes feature micro-adjustments and electric hand-wheels for faster machine setup and drastically increased accuracy
8.The standard horizontal cutter can be adjusted with the electric hand-wheel - allowing multi-sided machining without re-clamping of parts, if used in connection with a Divider or Rotary Table
9.3-step main drive at vertical cutter head, combined with a reliable variable frequency drive ensure high torque across the entire speed rage

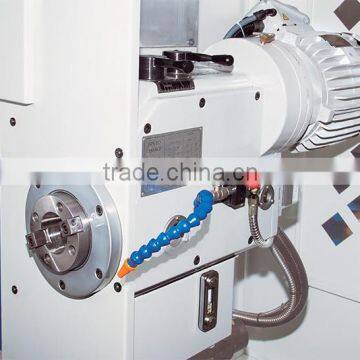

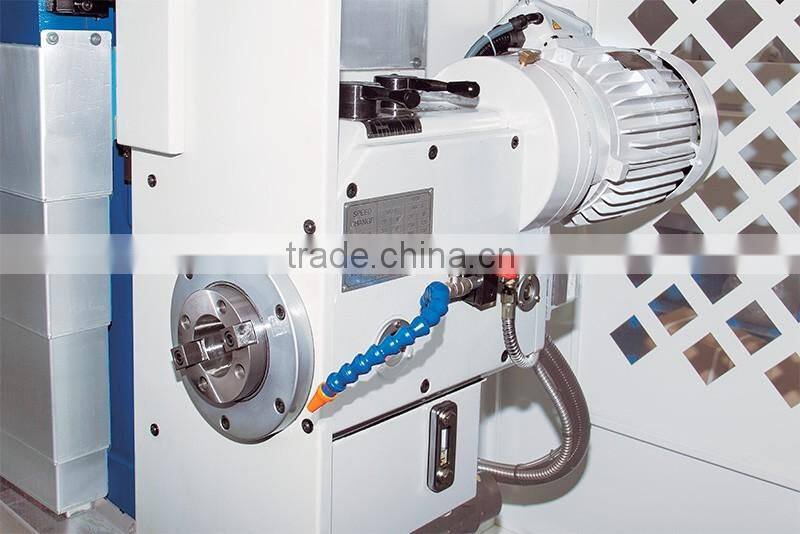

10.Horizontal cutter head with dedicated drive, consisting of 5.5 kW motor and 6-step gear
11.Telescoping covers made of stainless steel ensure reliable protection of guides and spindles against ingress of chips and coolant
12.Individually adjustable automatic central lubrication provides reliable lubrication of all major guide elements
13.Pneumatic tool clamping at vertical spindle for easy and quick tool changes
14.Brake cylinders provide automatic target position fixation on the Z axis
15.Ergonomically arranged, swiveling control panel with position indicator
Specification:
| Model | 1600VH |
| Table set up area | 510X1900 mm |
| Table load capacity | 1000kg |
| Number of T-slots/Wideth/Spacing | 5/18mm/80mm |
| Spindle nose-to-table surface distance | 70-670mm |
| Speed height-adjustment (max.) | 1670mm/min |
| Travel X/Y/Z /W axis | 1600/650/600/500mm |
| Spindle speed (vertical) | 60 - 3000 (3Step) rpm |
| Spindle speed (Horizontal) | 104-400rpm(6Step)rpm |
| Spindle mount | SK 50 |
| Throat | 610 mm |
| Rapid feed X/Y/Z axis | 4800 mm/min |
| Feed speed X/Y/Z axis | 10 - 3000 mm/min |
| Feed speed W axis | 10-1000 mm/min |
| Motor rating main drive | 11KW |
| Motor rating for X/Y/Z/W-axis drive | 1.1KW |
| Motor rating horizontal spindle | 5.5KW |
| Overall dimensions (length x width x height) | 4475x2538x2752 mm |
| Weight | 5800kg |
Standard Equipment:
3-axis position indicator, pneumatic workpiece clamping in the vertical spindle,
horizontal milling unit, electronic hand-wheel, coolant system, automatic central lubrication,
work lamp, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
