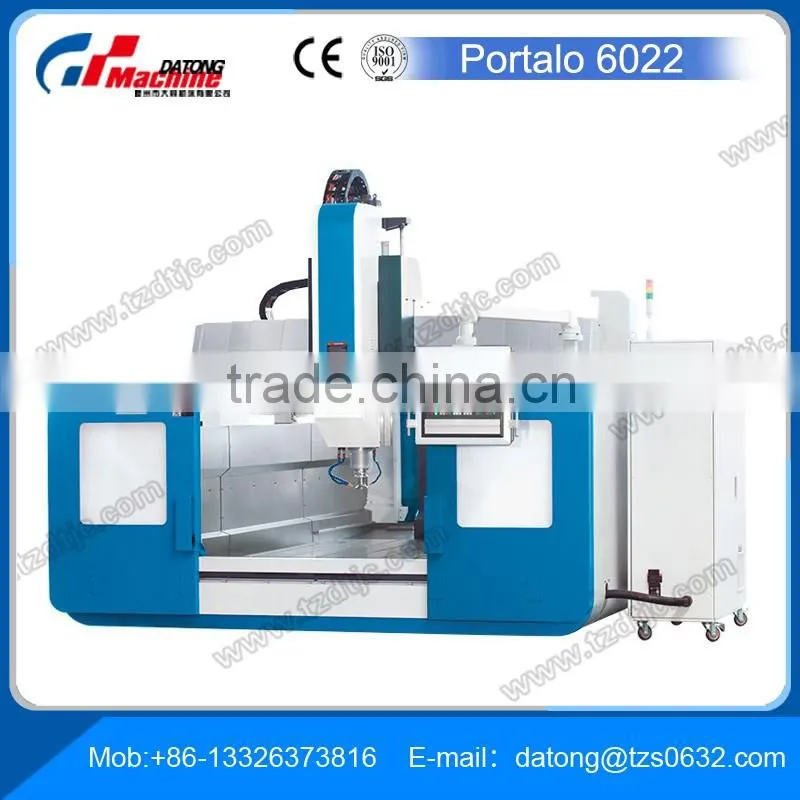

CNC Gantry-Type Machining Center Portalo 6022 for sale
Feature:
1.Cast-iron frame with high gantry design for maximum rigidity, small foot print for efficient and economical operation
2.Rigid traverse, driven on both sides - Perfectly synchronized drives
3.Z axis with wide, generously spaced square guides
4.Permanently fixed table accommodates workpiece weights over 2 tons per sqm
5.NEFF preloaded ball screws and proven Siemens servo-motors ensure dynamic feed and rapid feed on all axes
6.Machine components are made in Germany and Japan for optimum availability, ensuring reliable function for many years
7.Hardened table surface can handle workpieces without any effects on mechanical table parts and ensures superior protection during loading and unloading
8.Powerful headstock drive, up to 17 kW capacity plus servo-motors on axes with up to 5.2 kW capacity

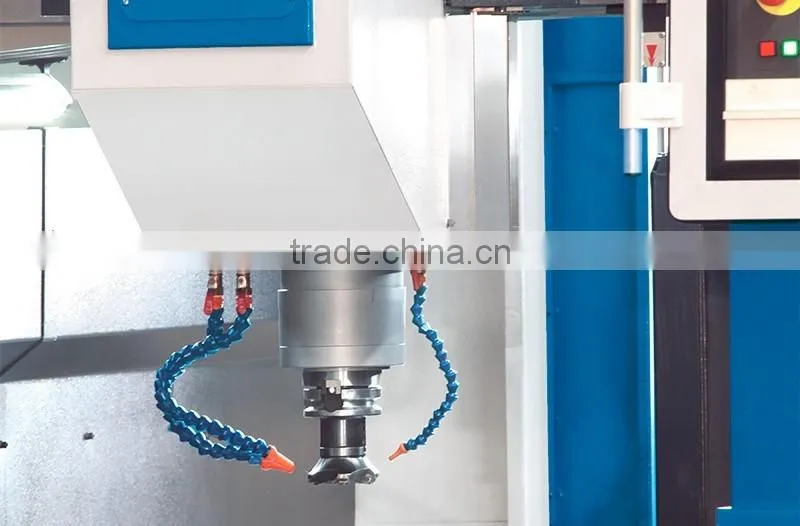

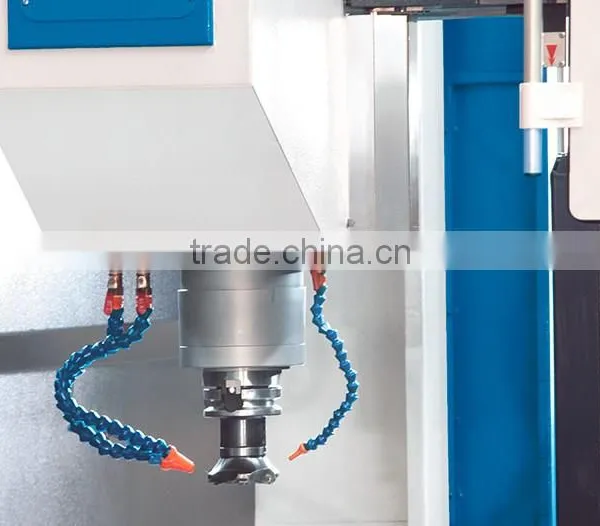

9.All models in this series include headstock-integrated coolant feeds, so this advanced tool technology can also be used on very large workpieces
10.A powerful coolant system combined with the included chip conveyor ensures excellent chip disposal and optimum machining conditions
11.All guideways are protected by telescoping stainless steel covers
12.Optional universal and angle cutter heads allow angular or lateral machining of workpieces
13.An automatic central lubrication system ensures reliable lubrication of all components
Specification:
| Model | Portalo 6022 |
| Table set up area | 6000X1800 mm |
| Table load capacity | 40000kg |
| Number of T-slots/Wideth | 9/28mm |
| Spindle nose-to-table surface distance | 350-1550mm |
| Travel X/Y/Z axis | 2200/6200/1200mm |
| Spindle speed | 6000rpm |
| Spindle mount | BT 50 |
| Rapid feed | 15000mm/min |
| Work Feed | 0-15000mm/min |
| Torque | 1068Nm |
| Number of tool stations | 20 Pieces |
| Tool size Ø x L (max.) | 200x280 mm |
| Workpiece width x height | 2800x1500 mm |
| Tool weight max. | 14 kg |
| Tool-changing time | 6S |
| Motor rating main drive | 28KW |
| Motor rating X/Y/Z axis | 7.7KW |
| Overall dimensions (length x width x height) | 9500x5800x4000 mm |
| Weight | 52000kg |
Standard Equipment:
Siemens 828 D control, electronic hand-wheel, separate control panel,

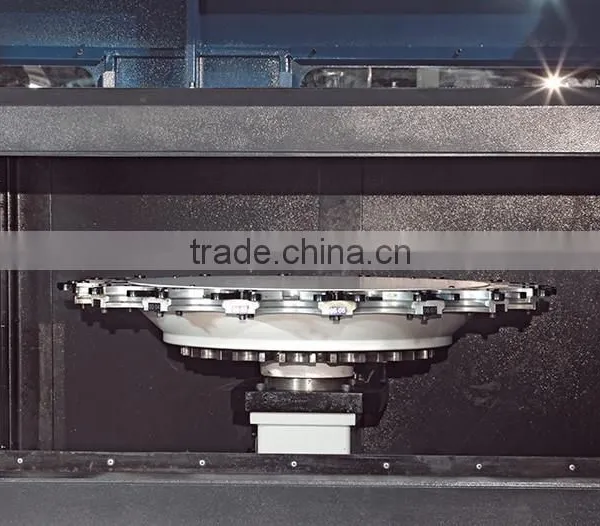

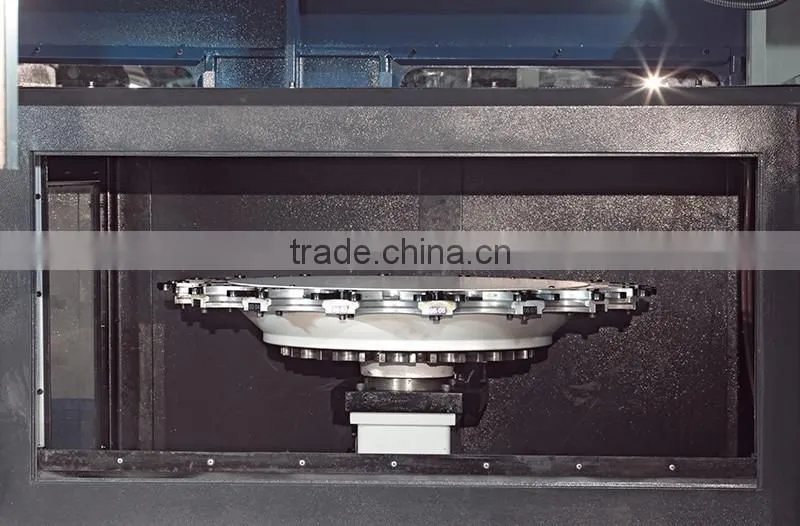

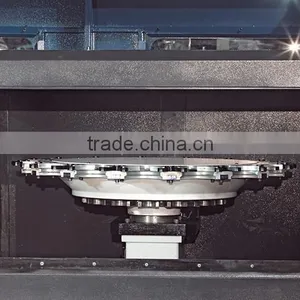

20-station tool changer, 2 spiral chip conveyors, chip conveyor chain type,
control cabinet with heat-exchanger, air gun, automatic central lubrication,
coolant system, Kühlmittelzufuhr durch die Frässpindel (CTS),
work lamp, operating tools, operating manual and programming instructions
