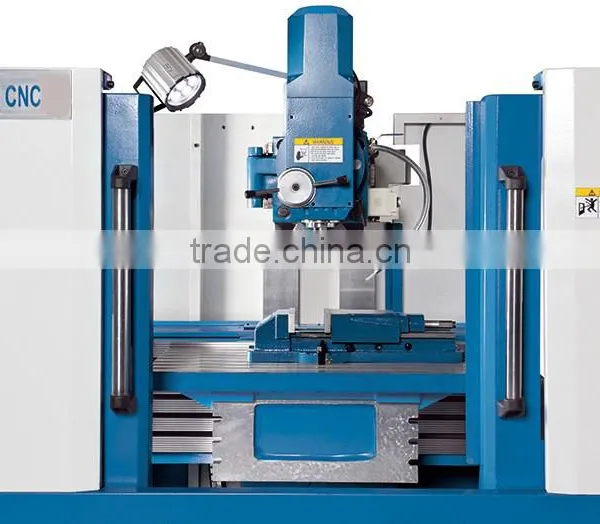

CNC Tool Milling Machine - WF 4.2 CNC for sale
Feature:
1.Rigid, heavily ribbed construction ensures excellent damping characteristics
2.High speed range (rapid feed up to 6000 mm/min) and good controllability via a low-maintenance servo-motor
3.Easy operation - optimized for time-saving processes hydraulic tool clamping is standard equipment
4.Quill feed at the vertical cutter head
5.Infinitely variable spindle speeds (40 - 4000 rpm) – flexible use for a wide variety of materials
6.Intuitive GPlus 450 control for maximum efficiency and cost-effectiveness
Specification:
| Model | WF 4.2 CNC |
| Table set up area | 400X800 mm |
| Table load capacity | 300kg |
| Number of T-slots/Wideth/Spacing | 14/7/50mm |
| Spindle nose-to-table surface distance | 25-425mm |
| Throat | 182-532mm |
| Travel X/Y/Z axis | 500/350/400mm |
| Spindle speed(Headstock) | 40-4000rpm |
| Spindle mount(Headstock) | ISO40 |
| Spindle speed (horizontal/Vertical) | 4000rpm |
Spindle mount (horizontal/Vertical) |
SK40/ISO40 |
Spindle axis-to-table surface distance |
90-490mm |
Quill stroke |
80mm |
Head swivel range |
± 90° |
| Rapid feed X/Y/Z axis | 6000mm/min |
| Work Feed X/Y/Z axis | 2-3000mm/min |
| Positioning accuracies | ± 0,022 mm / 0.0009" |
| Repeatabilities | ± 0,012 mm / 0.0005" |
| Motor rating main drive | 7.5KW |
| Motor rating X/Y/Z axis | 1.3/1.3/1.4KW |
| Overall dimensions (length x width x height) | 2900x2150x2330 mm |
| Weight | 2000kg |
Standard Equipment:
GPlus 450 control, short tool shaft 22, 27 mm, machine vise 160 mm,
reducing sleeve MT1, MT2, MT3, MT4, cutter head clamping assembly,
milling chuck with collets 4,5,6,8,10,12,14,16 mm, chip tray,
electronic hand-wheel, anchor bolts, coolant system,
outer arbor support for horizontal milling, work lamp, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
