Vertical Knee-type Milling XLK5032CL Metal milling machine for sale
- 50 Set / Sets per Month
- Qingdao.Tianjin.Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Vertical CNC Milling Machine XK5036 for sale
-
Vertical CNC Milling Machine XK5036B-1 for sale
-
Universal Drilling Milling Machine X6328C
-
CNC Tool Milling Machine - WF 4.2 CNC
-
CNC Mini Drill Press/Milling Machine - PicoMill CNC GP for training, model construction and small batch productions
-
CNC Milling Machine - LabCenter 260 with productivity and state-of-the-art CNC technology
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | XLK5032CL | |
Type | Vertical | CNC or Not | CNC | |
Voltage | Customer Requirement | Power(W) | 5.5kw | |
Dimension(L*W*H) | 2520*2100*2150mm | Weight | 2900kg | |
Certification | ISO9001:2008 | Warranty | One Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

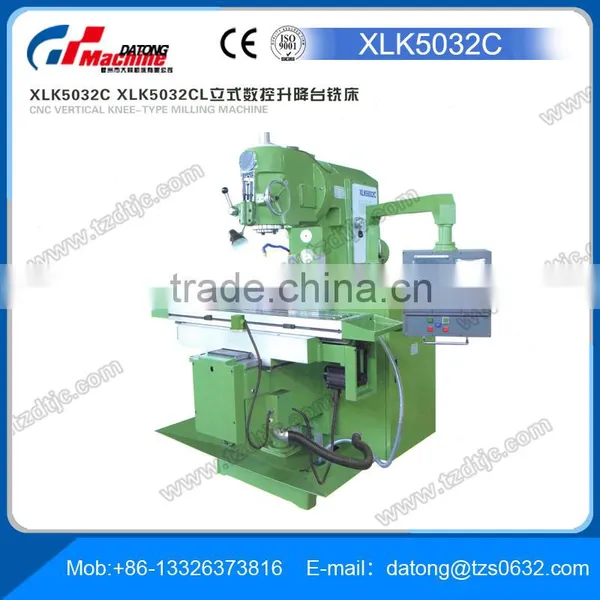

Vertical Knee-type Milling XLK5032CL for sale
Feature:
1.High precision
2.High quality
3.High efficiency
4.Low noice
Specification:
Specification | XLK5032C | XLK5032CL |
Spindle hole taper | ISO 50(7:24) | ISO 50(7:24) |
Distance between spindle and table surface (mm) | 50-500 | 50-500 |
Distance from spindle center line to colum (mm) | 378 | 378 |
Table size (mm) | 1325*320 | 1600*320 |
T slots(N*W*P) (mm) | 3/18/70 | 3/18/70 |
Table travel (X/Y/Z) (mm) | 1100/320/450 | 1300/320/450 |
Table rapid feed speed (mm/min) | 4000/4000/3000 | 4000/4000/3000 |
Spindle speed range (r/min) | 12 speeds 50-1475 | 12 speeds 50-1475 |
Swivel angle of vertical milling head | ±30° | ±30° |
Stroke of spindle quill (mm) | 70 | 70 |
Main motor power (kW) | 5.5 | 5.5 |
Torque of X/Y/Z axis AC servo notor (N.m) | 10/10/18 | 10/10/18 |
Overall size (mm) | 2245*2100*2150 | 2520*2100*2150 |
Net weight (kg) | 2850 | 2900 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
