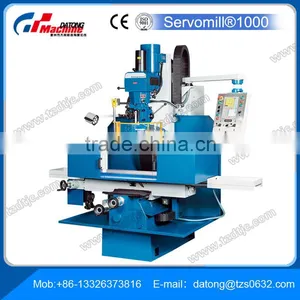

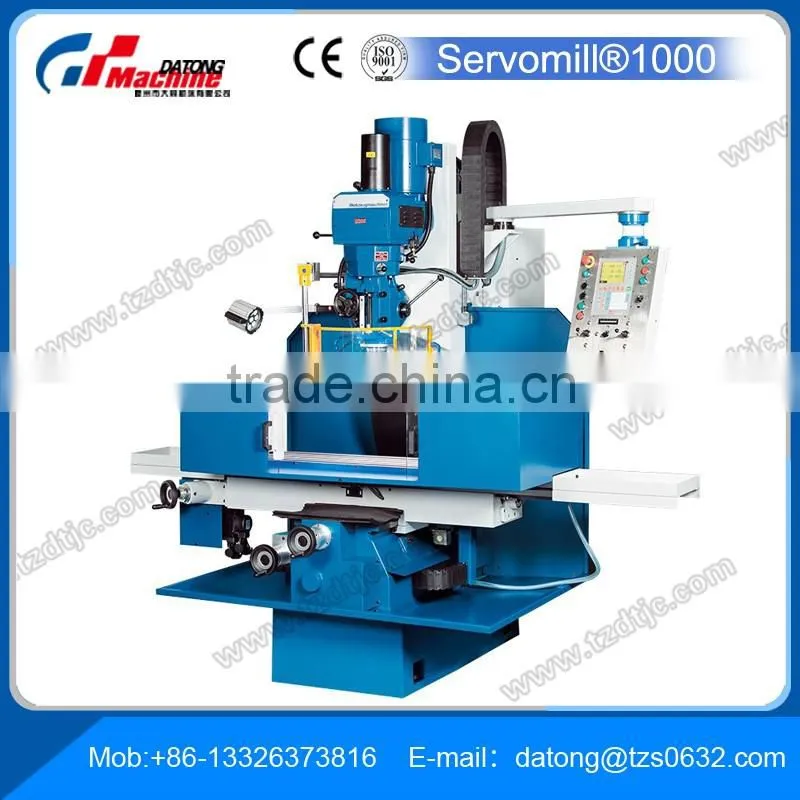

Multipurpose Milling Machine - Servomill 1000 for sale
Feature:
1.The Servomill represents a new generation of advanced milling machines that are operated like a conventional machine
2.This machine features a user-friendly design, significantly higher precision and increased machining capacity
3.Very high reliability and long service life of all components ensure drastically reduced maintenance and increased availability
4.Heavy cast-iron frame features a bed-type design
5.Large workpiece weights
6.Ground and hardened box-ways on Z and Y axis with high load capacity and wear-resistance
7.ow-maintenance, robust, and precise preloaded ball screws on all axes
8.Supporting weight balance on Z axis ensures smooth travel and minimized wear during drive and guide operation

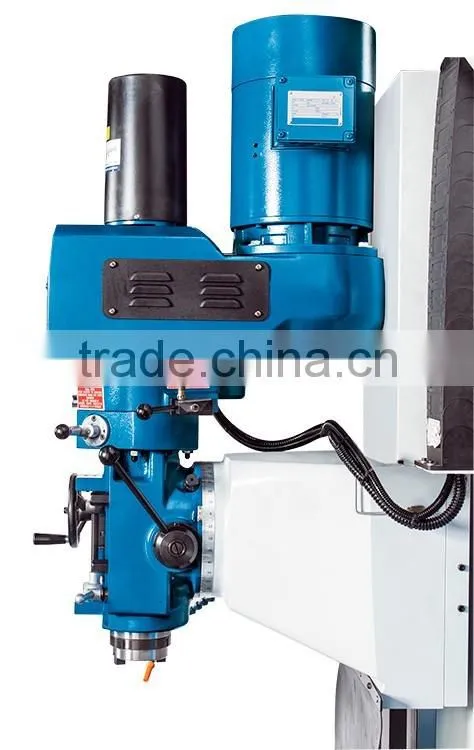

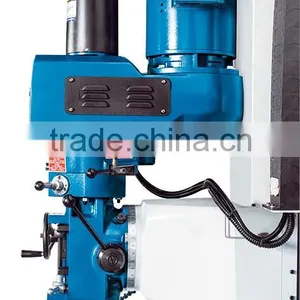

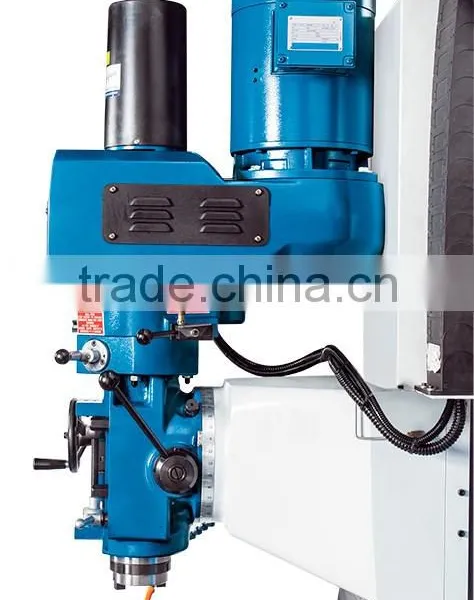

9.Cutter head swivels ± 90° and quill can be moved automatically or manually
10.Pneumatic tool clamping for quick tool changes
11.Digital speed (rpm) display
12.An automatic lubrication system reduces the operator's workload and simplifies maintenance
Specification:
| Model | Servomill 1000 |
| Table dimensions | 1524X305mm |
| Table load capacity (max.) | 500kg |
| Travel X/Y/Z axis | 1000/480/560mm |
| Spindle speed | 4000rpm |
| Quill stroke | 125mm |
| Spindle mount | ISO 40 |
| Rapid feed X/Y/Z axis | 5000/3000/2000mm/min |
| Feed speed (infinitely variable) | 0 - 1.000 mm/min |
| Feed per spindle revolution | 0,01 - 1 mm/R |
| Motor rating main drive | 3.7KW |
| Supply voltage | 400 V |
| Overall dimensions (length x width x height) | 2400x2100x2550 mm |
| Weight | 1820kg |
Standard Equipment:
3-axis position indicator, electronic hand-wheels, pneumatic tool clamping, chip tray, work lamp, coolant system, automatic central lubrication, horizontal guideway cover, operating tools, operator manual
