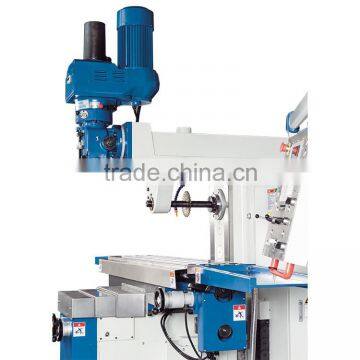

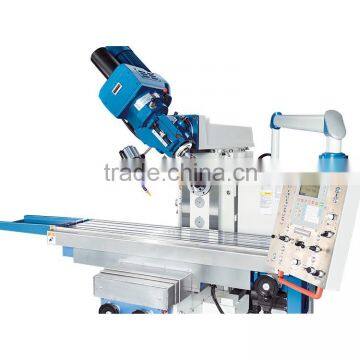

Universal Milling Machine UFM8 V for sale
Feature:
1.The Servomill represents a new generation of advanced milling machines that are operated like a conventional machine
2.This machine features a user-friendly design, significantly higher precision and increased machining capacity
3.Very high reliability and long service life of all components ensure drastically reduced maintenance and increased availability
4.Rigid frame design with wide guideways and travels
5.Servo-conventional drives on all axes, infinitely variable with fast rapid feeds, synchronized with spindle speed
6.Preloaded ball screws on X, Y and Z ensure high precision, low maintenance and low wear
7.All gears and guideways are hardened and ground
8.Swivelling vertical cutter head, pneumatic tool clamping and powerful 5.5 kW motor
9.2 gear steps for a wide speed range, infinitely variable up to 5000 rpm, and high torque at the spindle
10.Horizontal spindle motor with 7.5 kw
Specification:
| Model | UFM 8 V |
| Table dimensions | 1600X320mm |
| Table load capacity (max.) | 450kg |
| Number of T-slots /width/spacing | 3/18/80mm |
| Travel X/Y/Z axis | 1300/290/450mm |
| Speed range(mill head) | (2) 80-650 / 650-5000 rpm |
| Spindle mount | SK 50 / DIN 2080 |
| Horizontal spindle-to-table surface distance | 10 - 460 mm |
| Spindle axis-to-top beam distance(Horizontal Milling Spindle) | 245 mm |
| Speed range(Vertical milling head) | (2) 80-650 / 650-5000 rpm |
| Spindle mount | SK 40 / DIN 2080 |
| Quill feeds | 20 - 470 mm |
| Quill stroke | 127 mm |
| Swivel range | +/- 90° |
| Rapid feed X/Y/Z axis | 5000/3000/1500mm/min |
| Feed speed X/Y /Zaxis | 1000mm/min |
| Motor rating horizontal spindle | 7.5KW |
| Motor rating vertical spindle | 5.5KW |
| Overall dimensions (length x width x height) | 1900x2050x2500 mm |
| Weight | 2400kg |
Standard Equipment:
3-axis position indicator, electronic hand-wheels, pneumatic tool clamping, coolant system, work lamp, chip tray, draw bar, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
