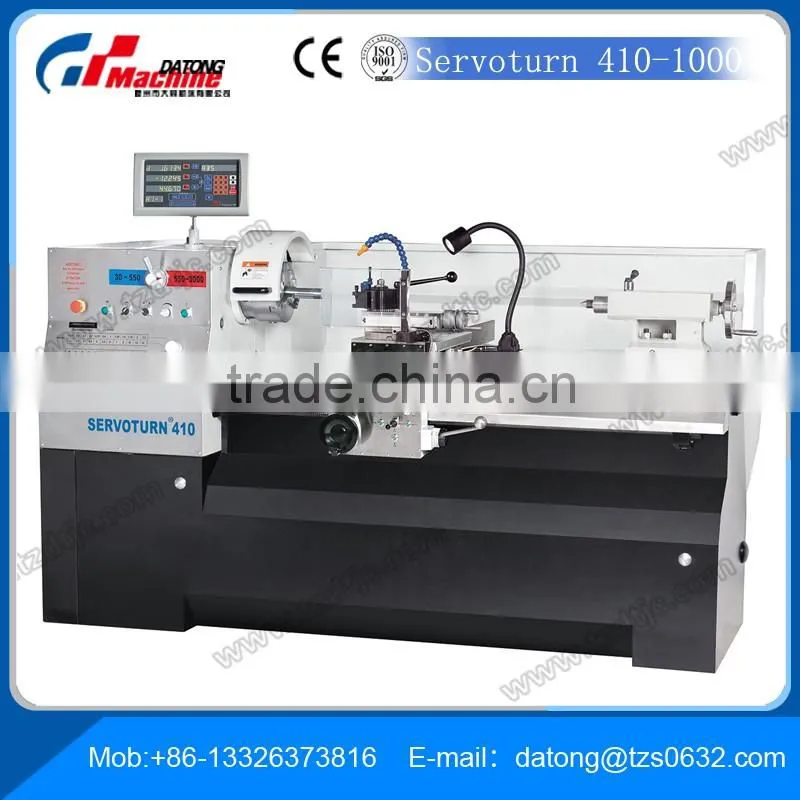

Help CenterServoturn 410/1000 Precision Lathe(Conventional Precision Lathe With Servo Drive)
Related Products
-
Ecoturn 500/1000 CNC Inclined Bed LatheUS$ 1,000 - 10,000MOQ: 1 Set -
Turnado 280/1500 V Lead Screw and Feed Shaft LatheUS$ 1,000 - 10,000MOQ: 1 Set
-
Turnstar 200S CNC Horizontal LatheUS$ 1,000 - 10,000MOQ: 1 Set
-
Turnstar 200C CNC Horizontal LatheUS$ 1,000 - 10,000MOQ: 1 Set
-
Turnado 280/2000 V Lead Screw and Feed Shaft LatheUS$ 1,000 - 10,000MOQ: 1 Set

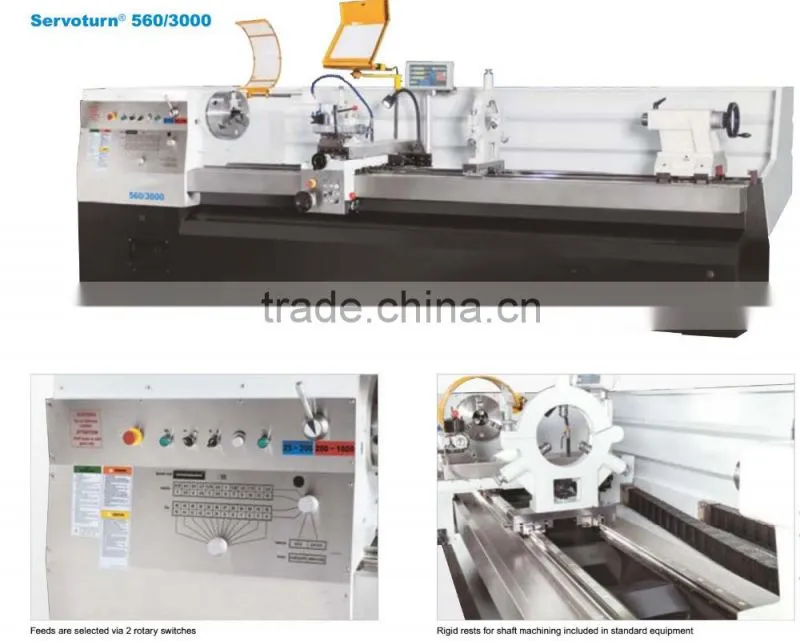

Conventional Precision Lathe with servo drive - easy to operate, more reliable, more precise, for higher loads and reduced maintenance

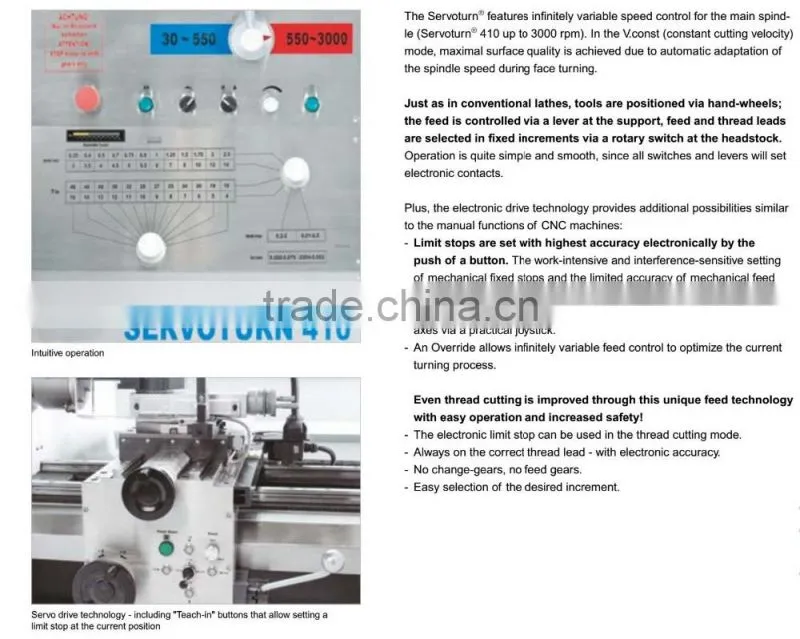

Intuitive operation as we know it from conventional machines - only much better:

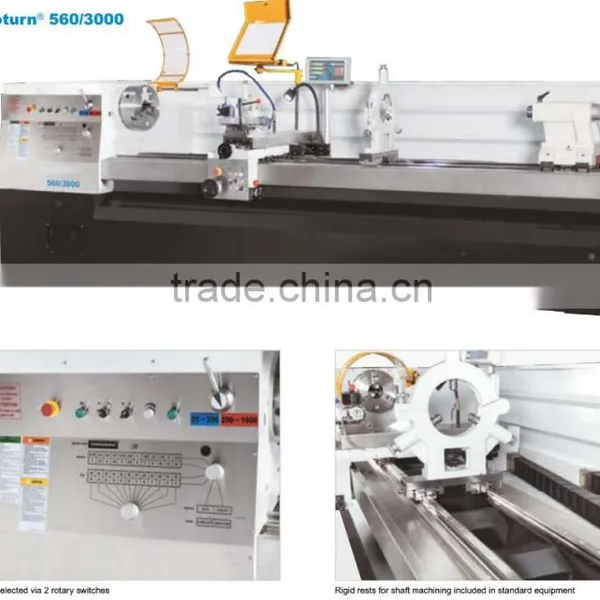

- feed and thread leads can be selected via rotary switch - what a brilliant concept
- stops can be set electronically with the press of a button
- feeds are infinitely variable between 50 and 100% via override potentiometer - finally available on a conventional lathe

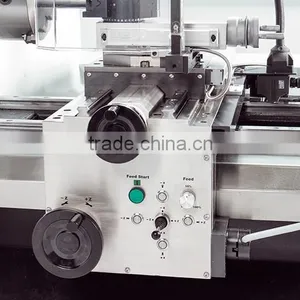

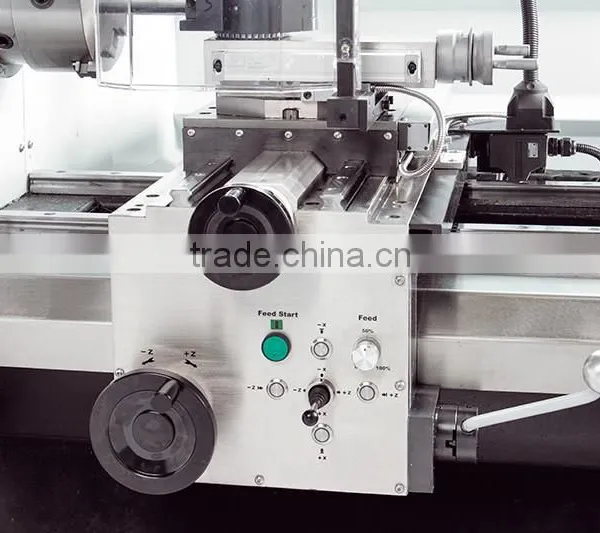

- micro-control via electronic hand-wheels - but handling and postioning just as with a conventional machine
- axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
- infinitely variable speed adjustment and constant cutting speed of headstock
The definition of a new standard for conventional lathes had to be perfect - therefore, we complemented the Servoturn with the following features:
Mineral-Casting Machine Frame
- mineral-casting reduces vibration 6 times faster than cast-iron (GG25) and up to 10 times faster than steel- this ensures excellent surface quality that could not be achieved with conventional machines
- excellent thermal stability
- modern manufacturing process with excellent energy footprint

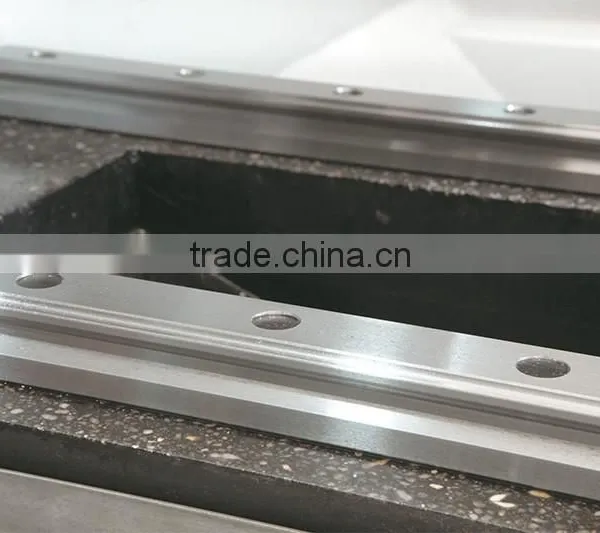

Linear Profile Guide Rails
- maximum reliability and performance
- excellent rigidity, strength and accuracy is achieved by optimum load distribution, designed for accepting high loads and torques
- no stick-slip effect
- long life and minimum maintenance
- replaceable parts
Recirculating Ball Screw
- considerably less errors due to loseness (backlash), resulting in significantly higher precision
- significantly reduced friction
- no stick-slip effect
- reduced heat development
- less wear for even less maintenance requirements

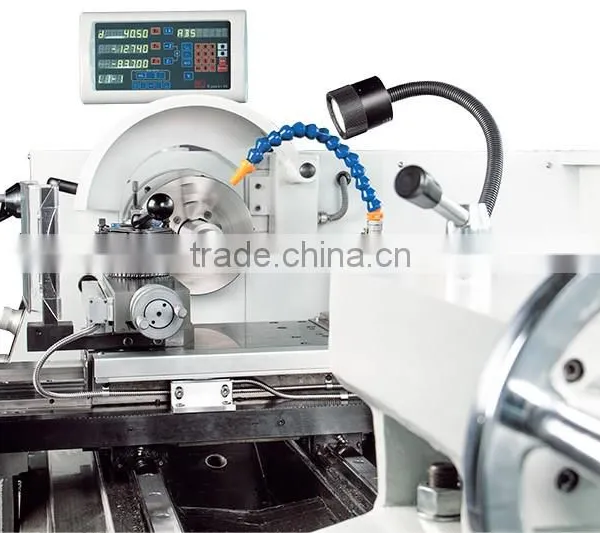

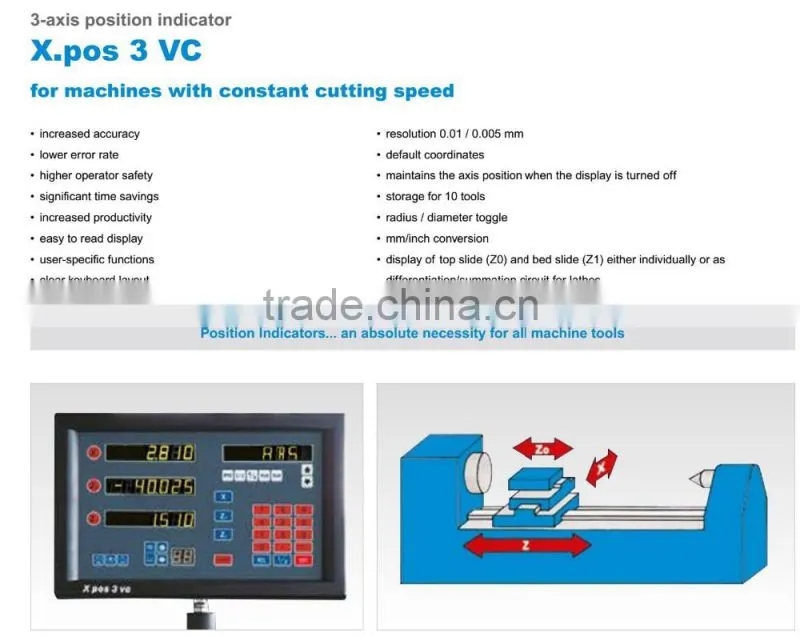

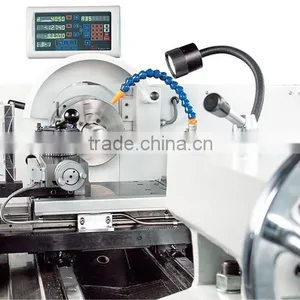

3-axis position indicator
- more accuracy
- lower error rate
- increased productivity
- resulting in valuable time savings
- for increased productivity
- easy to read display
- operator-specific features
- convenient keyboard layout
- resolution: 0.01/ 0.005 mm
- default coordinates
- axis position is maintained when display is turned off
- storage for 10 tools
- radius / diameter toggle
- mm/inch conversion
- display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
|
Working area
Workpiece length (max.)
Turning diameter over bed
Turning diameter over support
Travel Z1-axis
Bed width
|
1.050 mm
410 mm
250 mm
100 mm
300 mm
|
|---|---|
|
Travels
Travel X-axis
Travel Z-axis
|
225 mm
960 mm
|
|
Headstock
Spindle speed
Spindle bore
Spindle mount
Spindle taper
|
30 - 3.000 rpm
52 mm
D1-6
MT 6
|
|
Feed
Feed X-axis
Feed Z-axis
|
0,01 - 2 mm/R
0,01 - 2 mm/R
|
|
Tailstock
Tailstock quill diameter
Tailstock taper
Tailstock quill stroke
|
60 mm
MT 4
150 mm
|
|
Tapping
Tapping, metric
Tapping, whitworth
|
(24) 0,2-14 mm
(24) 4-48 GPZ
|
|
Drive capacity
Motor rating main drive
Motor rating X-axis
Motor rating Z
Supply voltage
|
5,5 kW
1 kW
1,6 kW
400 V
|
|
Measures and weights
Overall dimensions (length x width x height)
Weight
|
2.250x1.260x1.250 mm
2.500 kg
|
Standard Equipments:
3-axis position indicator, 3-jaw chuck Ø 200 mm, quick change tool holder WBD 25120, quick change tool holder WBH 32130, quick change tool holder head WB, live rest (10 - 100 mm), coolant system, includes fixed splash guard (wall), protective shield for support, work lamp, operator manual
