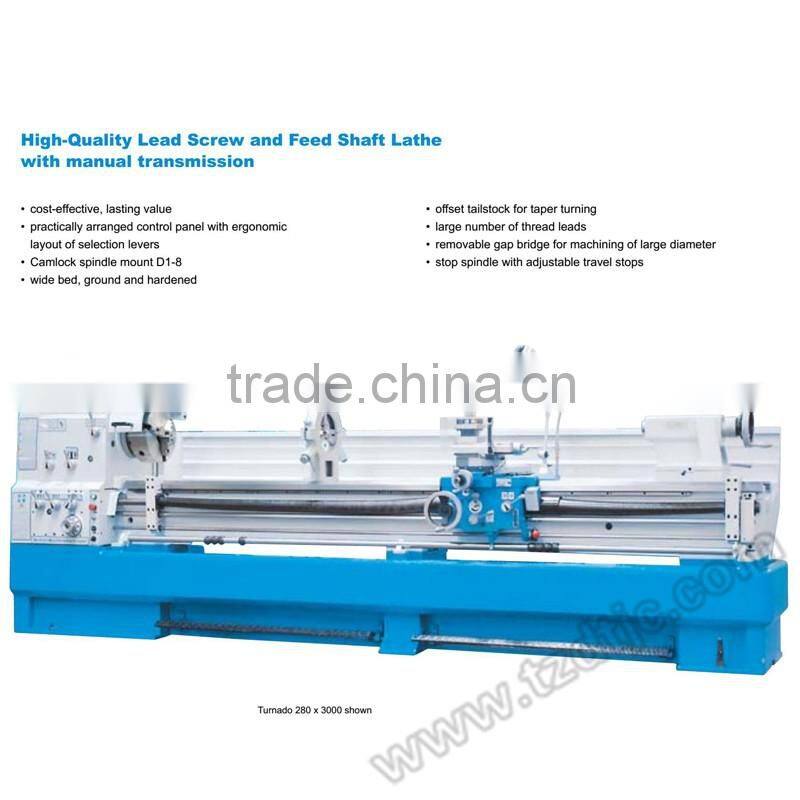

- cost-effective, lasting value
- practically arranged control panel with ergonomic layout of selection levers
- Camlock spindle mount D1-8
- offset tailstock for taper turning
- wide bed, ground and hardened
- large number of thread leads
- removable gap bridge for machining of large diameter
- stop spindle with adjustable travel stops

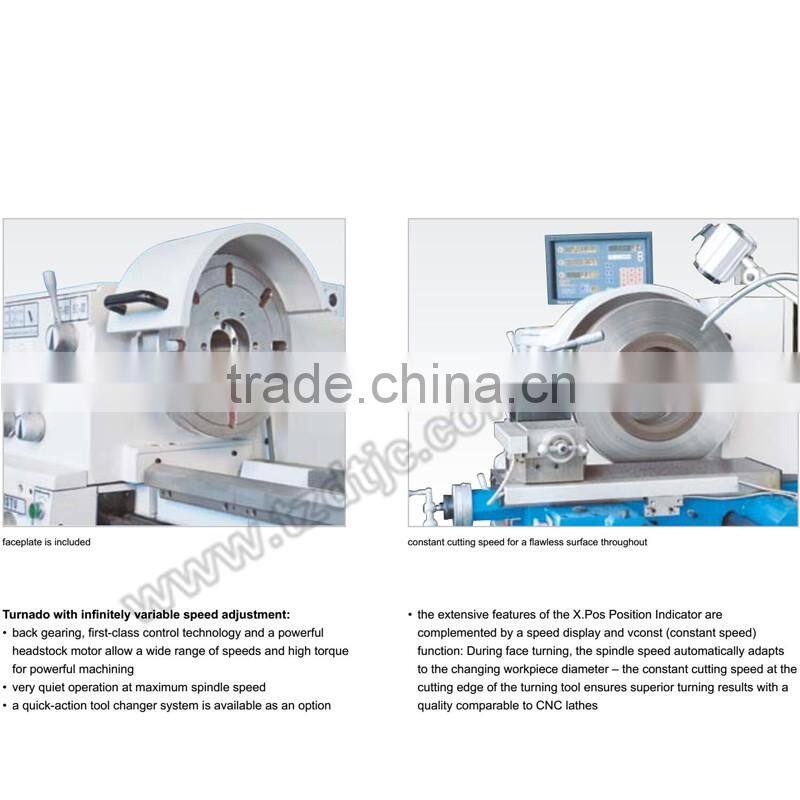

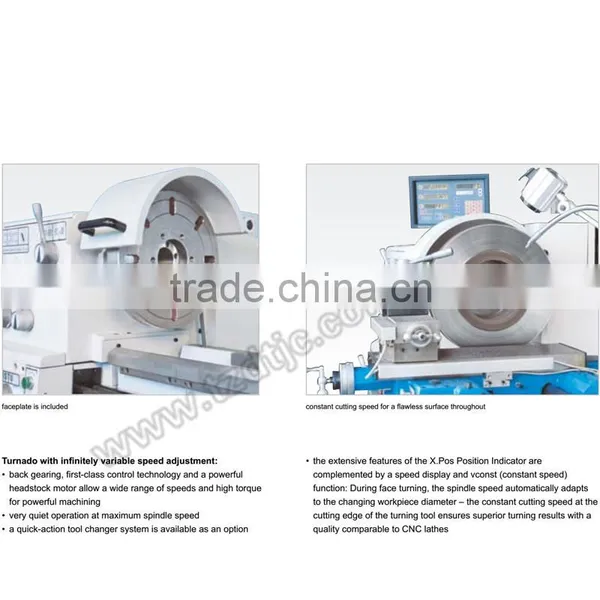

Turnado with infinitely variable speed adjustment
- back gearing, first-class control technology and a powerful headstock motor allow a wide range of speeds and high torque for powerful machining
- very quiet operation at maximum spindle speed
- spindle speed infinitely variable 1600 rpm
- the extensive features of the X.Pos Position Indicator are complemented by a speed display and vconst (constant speed) function: During face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with a quality comparable to CNC lathes
3-axis position indicator
- more accuracy
- lower error rate
- increased productivity
- resulting in valuable time savings
- for increased productivity
- easy to read display
- operator-specific features
- convenient keyboard layout
- resolution: 0.01/ 0.005 mm
- default coordinates
- axis position is maintained when display is turned off
- hole circle pattern calculation
- calculator function
- storage for 10 tools
- radius / diameter toggle
- mm/inch conversion
- easy expansion and maintenance-free operation
- display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
|
Working area
Workpiece length (max.)
Turning diameter over bed
Turning diameter over support
Turning diameter over gap bridge
Travel Z1-axis
Gap bridge length
Bed width
Swing range of top slide
|
1.928 mm
560 mm
355 mm
785 mm
130 mm
170 mm
350 mm
± 52 °
|
|---|---|
|
Travels
Travel X-axis
|
316 mm
|
|
Headstock
Spindle speeds
Spindle bore
Spindle mount
Spindle taper
|
L 25-200 / H 200-1600 rpm
80 mm
Camlock D1-8
MT 7
|
|
Feed
Feed X-axis
Feed Z-axis
|
0,02 - 0,573 mm/R
0,059 - 1,646 mm/R
|
|
Tailstock
Tailstock quill diameter
Tailstock taper
Tailstock quill stroke
Tailstock traverse adjustment
|
75 mm
MT 5
180 mm
± 12 mm
|
|
Tapping
Tapping, metric
Tapping, diametric
Tapping, module
Tapping, whitworth
|
(47) 0,2-14 mm
(50) 4-112 DP
(39) 0,1 - 7 mm
(60) 2-112 TPI
|
|
Drive capacity
Motor rating main drive
Supply voltage
|
7,5 kW
400 V
|
|
Measures and weights
Overall dimensions (length x width x height)
Weight
|
3.340x1.150x1.460 mm
2.720 kg
|
Standard Equipments:
3-axis position indicator, 3-jaw chuck Ø 320 mm, 4-jaw face plate chuck Ø 400 mm, face plate Ø 450 mm, quick tool changer head WC1, quick change tool holder WBD 25120, coolant system, fallow and steady rest, stop spindle, includes fixed splash guard (wall), chuck guard, foot brake pedal, halogen lights, reducing sleeve, dead center, thread gauge, operating tools, operator manual
