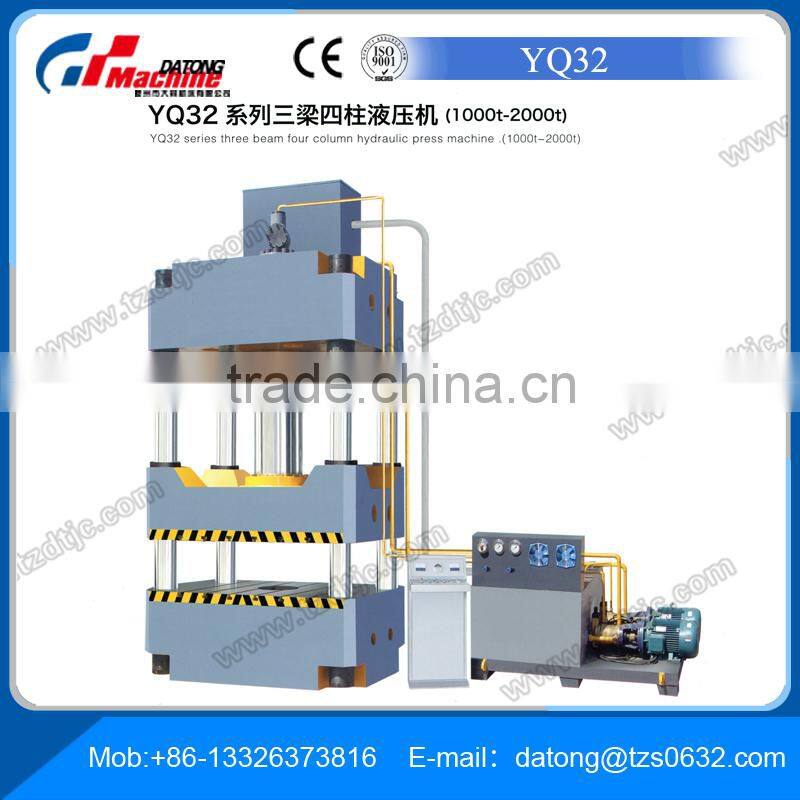

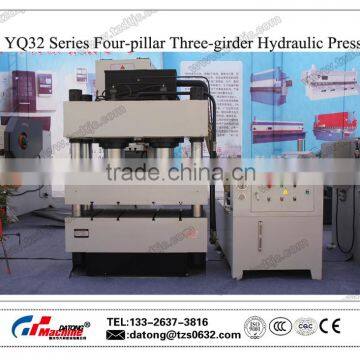

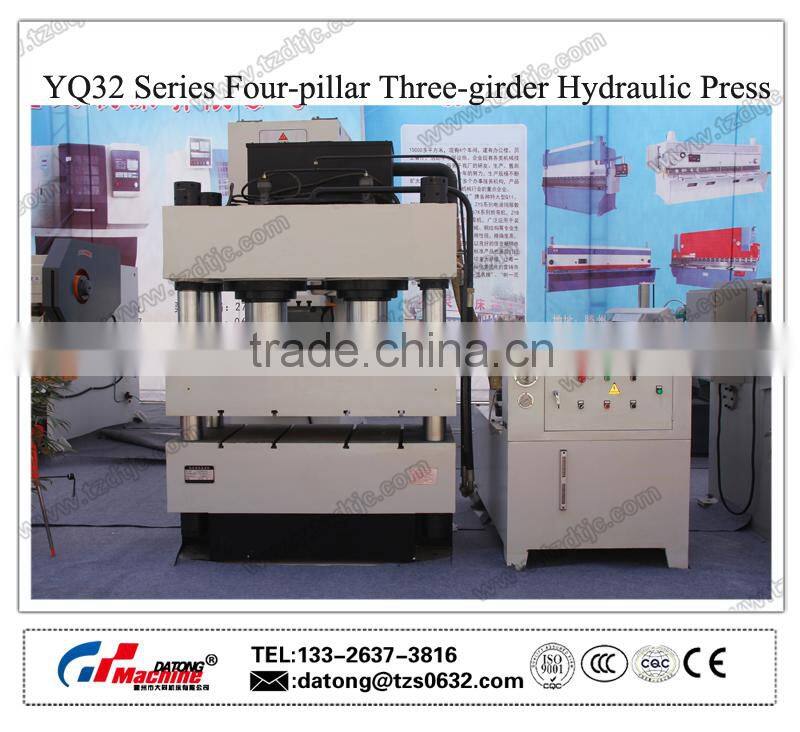

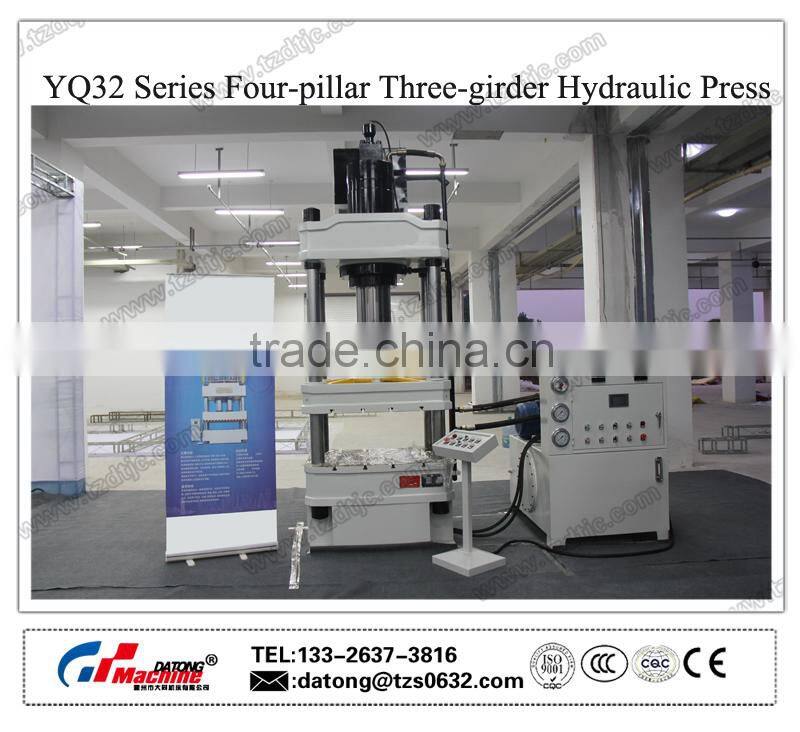

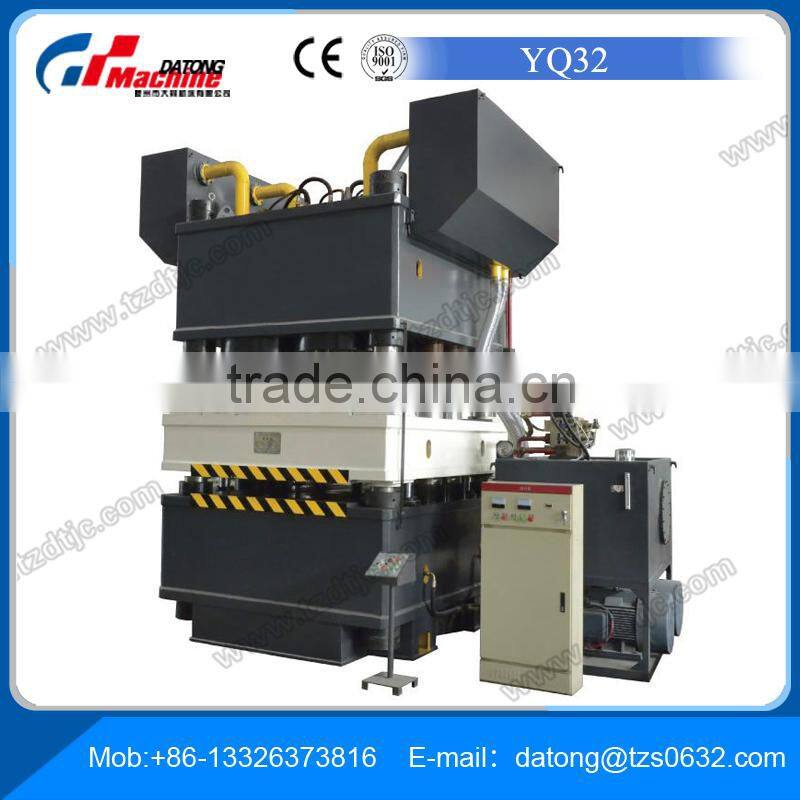

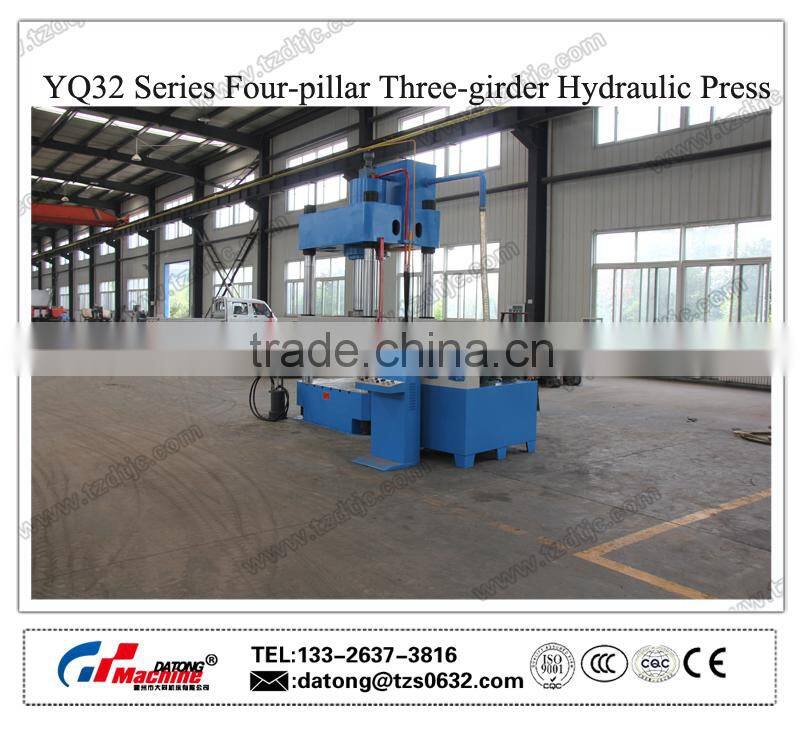

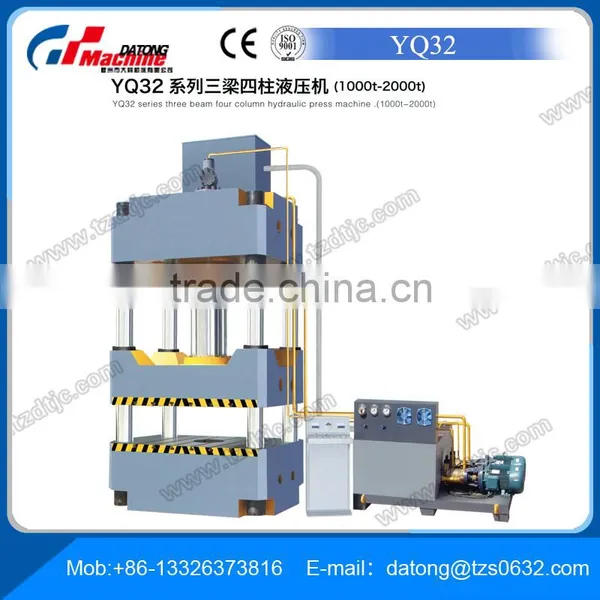

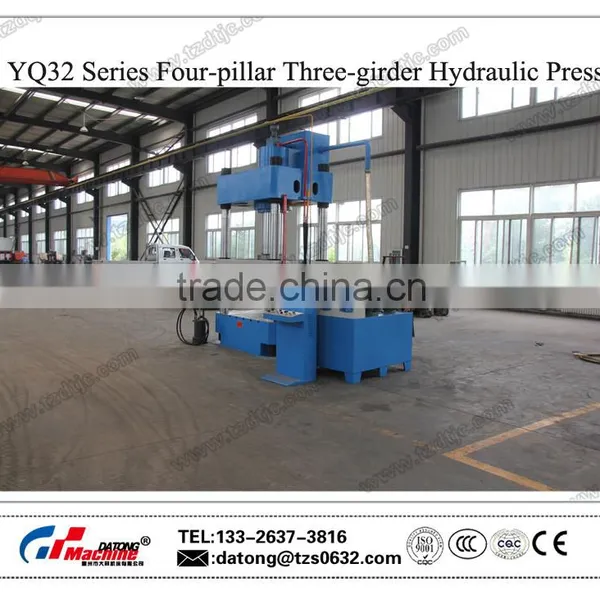

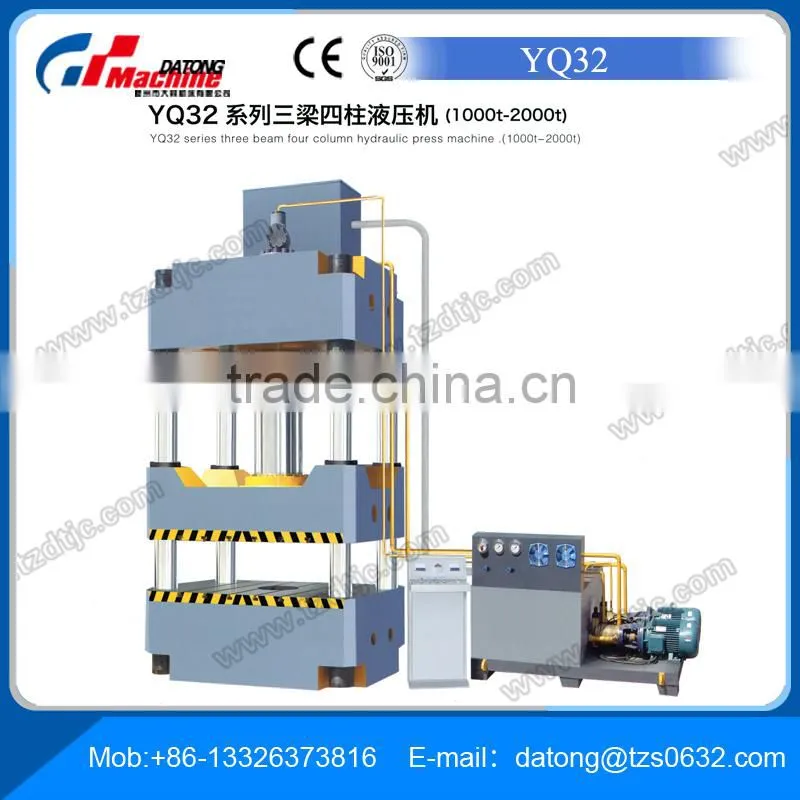

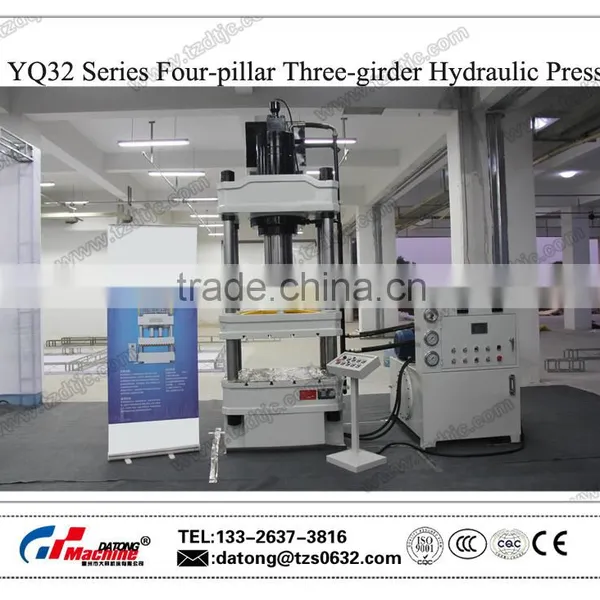

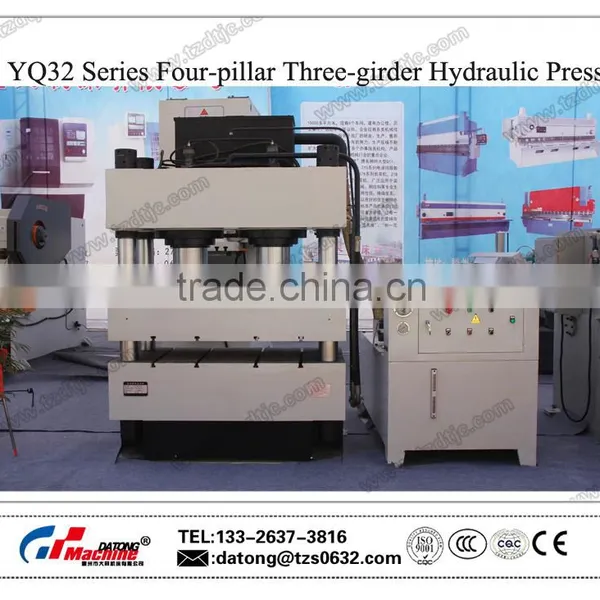

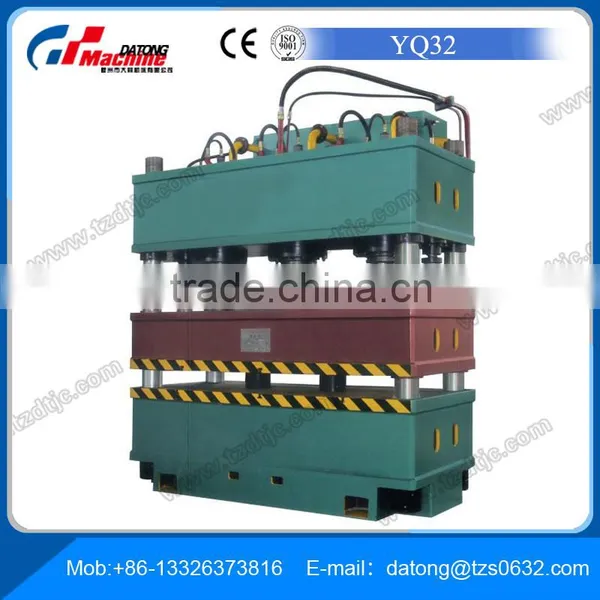

Help CenterYQ32 Series Four-pillar Three-girder Hydraulic Press Machine Quality Choice
Related Products
-
PLC CNC Sliding Hydraulic Press Machine For SaleUS$ 1,000 - 10,000MOQ: 1 Set -
Q35Y-16 Hydraulic Ironworker , Punching and Shearing Machine , Metal Cutting MachineUS$ 6,000 - 35,000MOQ: 1 Set
-
Q35Y-25 Hydraulic Ironworker , Punching and Shearing Machine , Metal Cutting MachineUS$ 6,000 - 35,000MOQ: 1 Set
-
Q35Y-30 Hydraulic Ironworker , Punching and Shearing Machine , Metal Cutting MachineUS$ 6,000 - 35,000MOQ: 1 Set
-
Q35Y-20 Hydraulic Ironworker , Punching and Shearing Machine , Metal Cutting MachineUS$ 6,000 - 35,000MOQ: 1 Set
Specification |
Unit |
YQ32-63A |
YQ32-63B |
YQ32-100A |
YQ32-100B |
YQ32-160 |
YQ32-200A |
Nominal force |
Kn |
630 |
630 |
1000 |
1000 |
1600 |
2000 |
Max pressure of hydraulic system |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
Max. Opening height |
mm |
500 |
700 |
800 |
800 |
800 |
800 |
Slider effective stroke |
mm |
360 |
400 |
500 |
500 |
500 |
400 |
Working table size |
mm |
410*510 |
610*500 |
630*550 |
750*700 |
660*600 |
800*800 |
Nominal force of Ejection cylinder |
Kn |
100 |
100 |
200 |
200 |
400 |
400 |
Ejection stroke |
mm |
160 |
160 |
200 |
200 |
200 |
220 |
Slider working speed (empty travel) |
Mm/s |
100 |
100 |
100 |
100 |
100 |
100 |
Slider working speed (press) |
Mm/s |
5-10 |
5-10 |
5-10 |
5-10 |
5-10 |
5-10 |
Slider working speed (Return stroke) |
Mm/s |
90 |
90 |
90 |
90 |
90 |
90 |
Specification |
Unit |
YQ32-200B |
YQ2-250 |
YQ32-315A |
YQ32-315B |
YQ32- 400 |
YQ32- 500 |
Nominal force |
Kn |
2000 |
2500 |
3150 |
3150 |
4000 |
5000 |
Max pressure of hydraulic system |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
Max. Opening height |
mm |
1200 |
1200 |
1250 |
1250 |
1250 |
1500 |
Slider effective stroke |
mm |
700 |
700 |
800 |
800 |
800 |
900 |
Working table size |
mm |
1000 *900 |
800 *800 |
1260 *1160 |
1000 *1100 |
1260 *1160 |
1400 *1400 |
Nominal force of Ejection cylinder |
Kn |
400 |
400 |
630 |
630 |
630 |
1000 |
Ejection stroke |
mm |
220 |
220 |
300 |
300 |
300 |
300 |
Slider working speed (empty travel) |
Mm/s |
100 |
100 |
120 |
120 |
120 |
150 |
Slider working speed (press) |
Mm/s |
5-10 |
5-10 |
8-15 |
8-15 |
8-15 |
10-22 |
Slider working speed (Return stroke) |
Mm/s |
90 |
90 |
90 |
90 |
90 |
120 |
Characteristic:
3 beam 4 column structures, economical and Practical ,Hydraulic control adopt insert type compact valve system,with reliable operation,long service life,minimized hydraulic shock, minimized duct connection and possibleleak point. Two operation model, pressure regulation and stroke regulation which can be selected through operational panel,and has the character of pressure-keeping and time-delaying, Delay time is adjustable, working pressure and stroke can be adjusted within the prescribed scope . Adopting centralized control buttons, with both manual and semi-automatic operation mode.
Function
Used in metal material tensile, punching ,bending, flanging, cold extrusion and Various kinds of stamping process. It also could be used in alignment and press-fit , the pressing of powder products and plastic products , And the press forming of insulating material
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
