Q35Y-16 Hydraulic Ironworker
Feature:
1. Robust and accurate steel frame
2.Large punch table with scales
3.Removable bolster for punching flanges and channel and beam
4. 2 independent hydraulic cylinders
5. 2 shielded foot controls
6. 2 Separate Die Openings for oversized punching

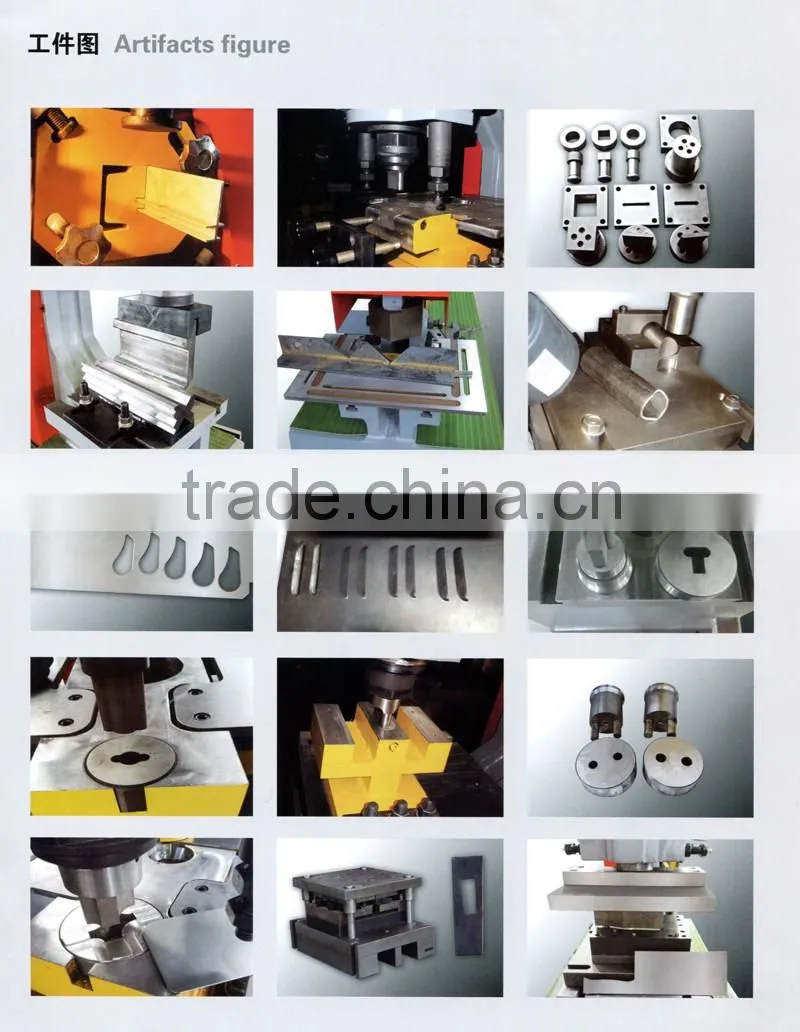

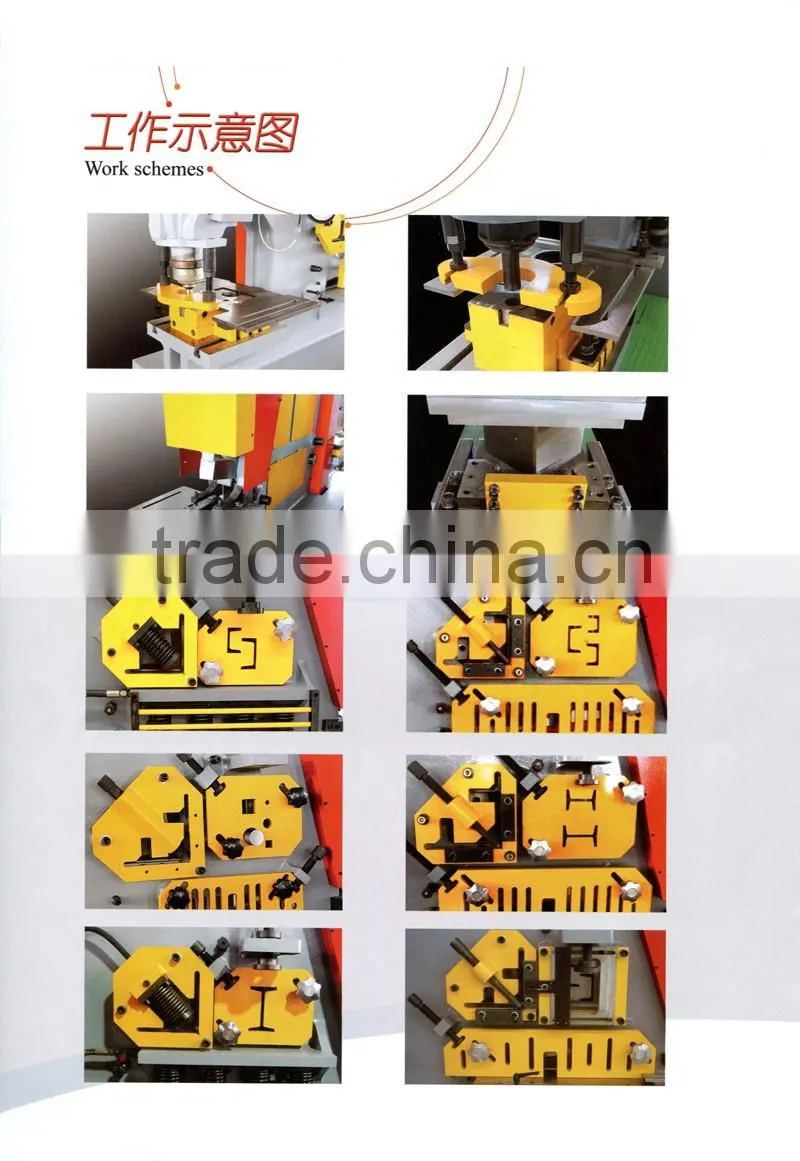

7.5 working stations for wide applications
8. Power inching on all 5 work stations
9. Plate shear support/table and notching table
10. Adjustable stroke controls with indicators on both cylinders
11. Movable work light as standard
12. Overload protection on hydraulic system
13.Electric backgauge
14. Optional bending attachment
15.Optional 5 sets punches and dies
Specification:
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
| Punching Pressure(T) | 60T | 90T | 115T | 145T |
| Max.cutting thickness of steel pltes(mm) | 16 | 20 | 25 | 30 |
| Plate strength(N/mm2) | ≤450 |
≤450 | ≤450 | ≤450 |
| Angle of Shear(°) | 7° |
8° | 8° | 8° |
| A trip size(T×W)(mm) |
16×250 8×400 |
20×330 10×480 |
25×330 16×600 |
30×335 20×600 |
| Slider trip(mm) | 80 | 80 | 80 | 80 |
| Trips frequency(times/min) | 11-20 | 18-30 | 9-18 | 8-16 |
| Throat depth(mm) | 300 | 355 | 400 | 600 |
| Punch depth(mm) | 16 | 20 | 25 | 28 |
| Max.punching diameter(mm) | 25 | 30 | 35 | 38 |
| Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 11 |
|
Overall diamensions (L×W×H)(mm) |
1740x810 x1830 |
1950×900 ×1950 |
2355×960 ×2090 |
2800×1100 ×2500 |

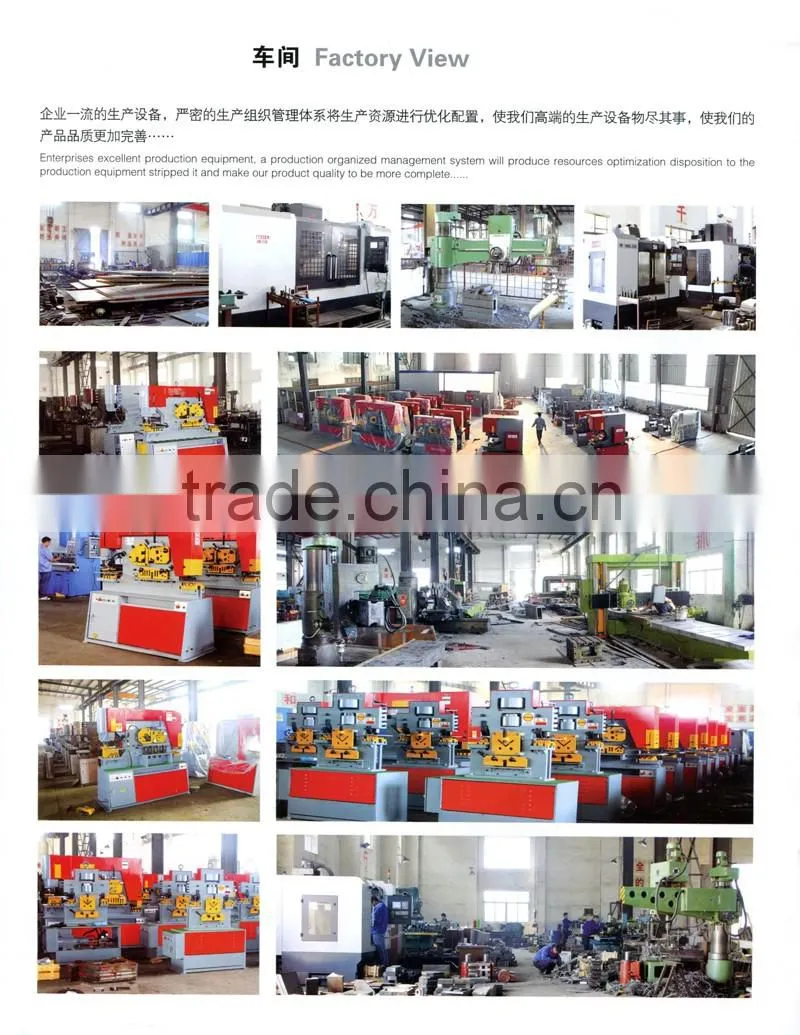

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
