Help Center2015 New Designed RO Equipment for Pharmaceutical Use/high Purity Water/purified Water Equipment/
Related Products
-
Two-stage RO Equipment Water Purification for Pharmaceutical, Comestic/water FiltrationUS$ 6,000 - 30,000MOQ: 1 Unit -
Supply Big Capacity Water Purification MachineUS$ 3,200 - 100,000MOQ: 1 Set
-
Water Treatment Equipment RO System for PharmacyUS$ 10,000 - 30,000MOQ: 1 Unit
-
Stainless Water Tank for Storage WaterUS$ 200 - 10,000MOQ: 1 Set
-
Water Treatment PlantUS$ 5,000 - 50,000MOQ: 1 Set
Pharmaceutical purified water index:
1.Chemical index: to meet the requirements of Chinese Pharmacopoeia 2010 version on pharmaceutical purified water
2.Hygiene examination: microorganism 10CFU/100ml
3. Endotoxin 0.25EU/ml
4. Conductivity is not more than 2 mu S/cm (resistivity is no less than 0.5 MΩ *CM)

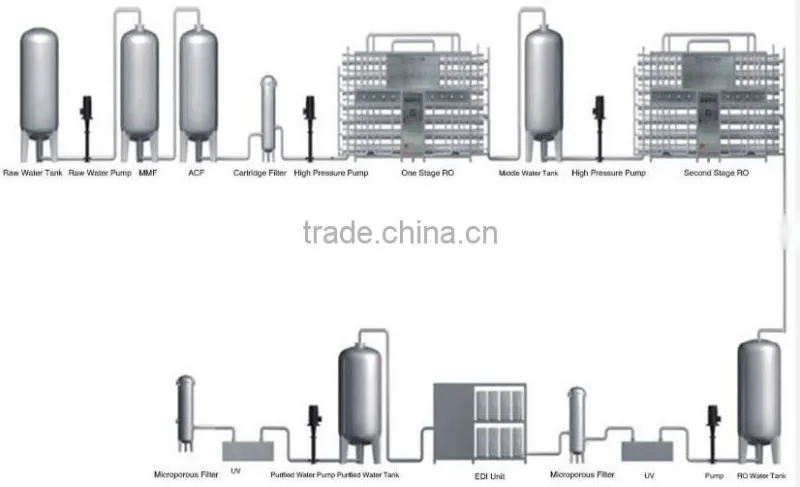

Flow Chart:
Features of device:
1.the design of structure should be simple, reliable and easy to assemble and disassemble.
2. for easy assembling and disassembling, changing, cleaning the parts, the design of actuator should adopt as standardized, universalized and systematized parts as possible.
3. the wall surface of equipment requires smooth, no dead corner, easy cleaning and sterilization. Surface treatment such as chromeplate should be done to the parts to prevent corrosion and rust. Oil paint should be avoided for fear that desquamation.
4. Equipment for purified water production must adopt high quality low carbon stainless steel or other materials which are proved not to pollute water quality, and the equipment should be cleaned regularly, and the cleaning effect should be verified.
5. for the equipment of water for injection, the contact material must adopt high quality low carbon stainless steel or other materials which are proved not to pollute water quality, and the equipment should be cleaned regularly, and the cleaning effect should be verified.
6. the storage cycle of purified water should not be longer than 24 hours. The storage tank should adopt stainless steel material or other materials which is proved non-poisonous, anti-corrosion and no leakage of contaminated ions. The protective vent should be installed with hydrophobic aseptic filter without fiber falling off . The inner wall of the storage tank shall be smooth, and there shall beno dead ends and sand hole for joint and welding. The equipment should adopt transducer which is free from water stagnant and indicates parameters such as liquid level, temperature and pressure, etc.
7. convey of pharmaceutical water
1) purified water and pharmaceutical water should be conveyed by stainless steel pump which is easy to assemble, disassemble, clean and sterilize.In the spot where compressed air or nitrogen gas convey is required,compressed air and nitrogen must be purified
2) purified water should be conveyed by the circulating pipeline. Piping design should be simple, avert blind pipe and dead corner. Piping should adopt stainless steel or other material which is proved non-poisonous, anti-corrosion and no leakage of contaminated ions. Valves should adopt sanitary valve of no dead corner, and the flow direction of purified water conveying should be marked.
3) pipes and pumps for purified water and water for injection conveying should be cleaned and sterilized regularly and verified qualified before use.
8. pressure vessel design shall be undertaken by department with license and qualified personnel, and conducted in accordance with relevant regulations of PRC National Standard Steel made Pressure Vessel(GB150-80) and pressure vessels safety and technical supervision regulation.
Characteristics of equipment technology:
1. The system adopts fully automatic control (also manual control is available), during operation the system can be set automatic backwashing and regeneration process.
2.one-stage reverse osmosis and two-stage reverse osmosis are provided with backflow pipes, and the reverseosmosis equipment is provided with chemical cleaning system and sterilizing system;
3. PH regulator is installed between the one-stage and two-stage reverse osmosis to make sure product water conductivity is in accordance with the requirements of the Pharmacopoeia;
4. Two-stage reverse osmosis membrane adopts positively charged anti-pollution membrane to make sure thelongterm and stable operation of reverse osmosis equipment;
5. one-stage reverse osmosis pipeline adopts SS304 material, two-stage reverse osmosis adopts SS316L materials;
6. one-stage reverse osmosis and two-stage reverse osmosis equipment are equipped with an online electrical conductivity detector, so that the product water conductivity can be viewed at any time;
7. a low pressure protection switch is set ahead of one-stage reverse osmosis equipment, and high pressure protection switch and low pressure protection switch are set ahead of two-stage reverse osmosis;
8. water recovery rate of one-stage and two-stage reverse osmosis can be adjusted. Recovery rate of one-stage reverse osmosis is 60%-65%, and of two-stage reverse osmosis is 70%;
9. the pre-treatment device adopts parts imported with original packaging; pipes for pre-treatment pipeline are UPVC.
10.Purified water storage tank is equipped with breathing filter and conveying pipeline is provided with UV sterilizer and microporous filter, to make sure pure water meet the health requirements.
Water quality standard:
1) drinking water: in line with PRC National Standards Hygienic Standard for Drinking Water (GB5749-85)
2) purified water: in accordance with the standard of purified water written in the 2010 version Chinese Pharmacopoeia.
3) water for injection: in accordance with the standard of water for injection written in the 2010 version Chinese Pharmacopoeia.
Technical index:
1. product water quality: in line with the United States AAMI/ASAIO dialysis water standards
2. YY0572-2005 hemodialysis water and water for related therapy
3. bacteria, virus removal rate >99.9%
4. endotoxin removal rate >99.9%
5. calcium, magnesium, heavy metal removal rate >98-99%
6. organic pollutant removal rate >99.9%
7. raw water quality: urban drinking water
8. raw water pressure is ≥0.15MPa
raw water temperature: 5-40℃
Packaging details: customized/wooden package
Delivery Details: 15--60 days based on capacity and quantity
12 months warranty and free maintainance cost
24 after-sales service online
Whole life free technical support
Trace for order until you get the goods
Engineer available to go abroad for installation and training
Wentong Water Treatment Co., Ltd, established in 1997, 100 workers, over 800 square meter factory workshop and independent office space. Manufacturer of high quality water treatment equipment and spare parts for food, beverage, pharmacy, power plant, cosmetic, leather, electron and other industries.
As a manufacturer and enterprise supported by the government, we have obtained CE, ISO9001:2008 attestation and certificates from UK, Germany. The water quality standard meet with Chinese Pharmacopoeia of 2010 version, Pharmacopoeia requirements of USA and EU, GMP standard and FDA attestation.
1. Are you factory or trading company?
We are factory and also a direct manufacturer for about 20 years in this field
2. What capacity of water treatment equipment you can manufacture?
Generally from 250L/H to 200T/H
3. How long the consumables should be replaced?
Strictly speaking, it depends on source water quality. There is an approximate timetable for consumables replacement:
a. quartz sand, activated carbon: 2-3 years
b. water softening resin: 1 year
c. PP filter element: 2-3 months
d. RO membrane: 2-3 years
e. UV lamp: 8000 hours
All the consumable replace period will be depend on the feed water quality.
Feel free to contact with us!
