Help CenterQuarry Vibrating Screen
Related Products
Specifications
1. high abrasion resistant screen decks 2.high precision to get more even product 3.spring steel woven mesh,hardly be blockedvibrating screen Features and values
1. With eccentric shaft and eccentric cylinder block to adjust vibrating amplitude, effectively improved the vibrating force and increased capacity
2. Long screening area, high yield and high precision

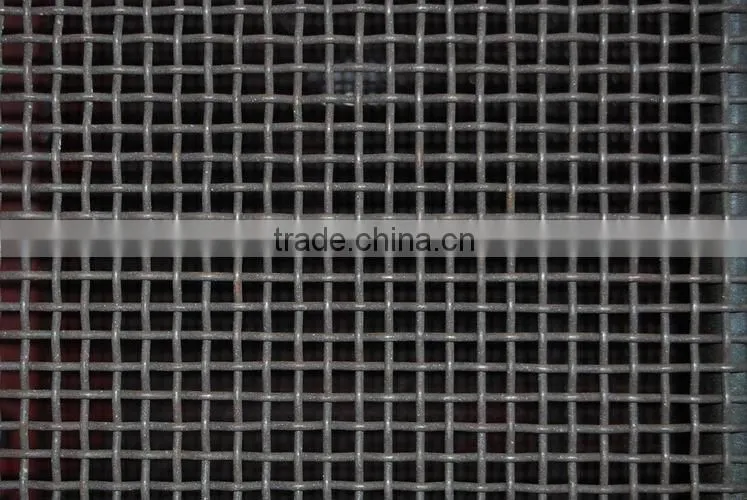

3. spring steel woven mesh,hardly be blocked and resistant to abrasion
4. Vibration motor as vibration source, low noise and low power consumption
5. can use a closed body structure design to prevent dust pollution
6. a wide range of matching screening specifications, and customized according to specific requirements

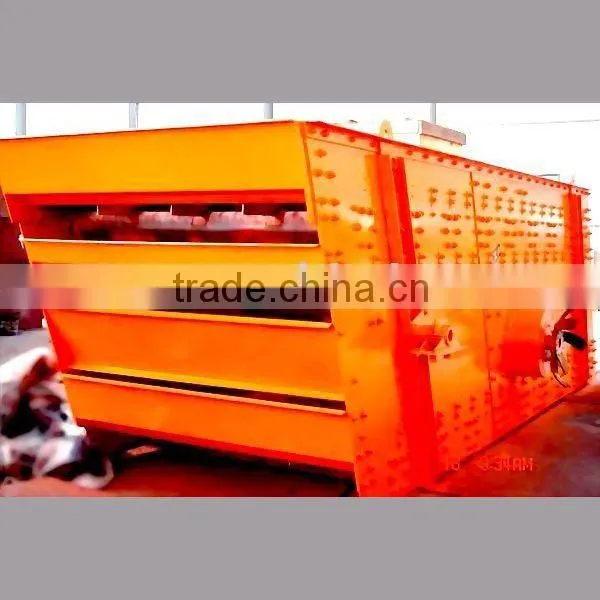

vibrating screen introduction

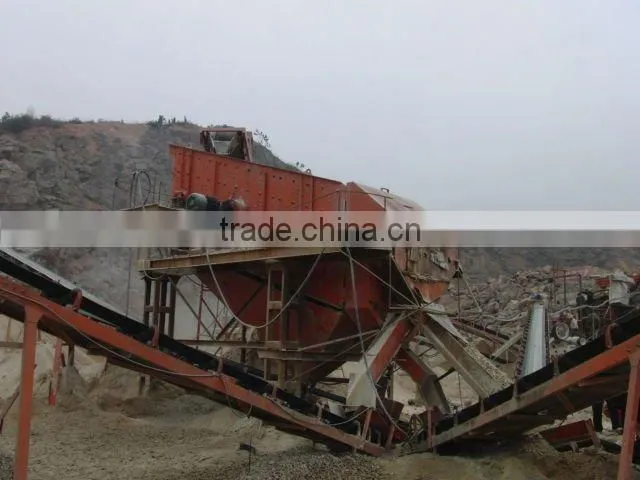

SANYYO vibrating screens for scalping, separating and sizing aggregates, minerals and coal come in several different types and a wide range of sizes. We offer screens for both wet and dry applications, and the screening media for optimum end product quality. We also offer both individual units and complete systems, as well as expert advice on choosing the right screen for the job. Our equipment is easily adaptable for stationary and mobile crushing plants. Its main function is to separate different sizes of products. SANYYO vibrating screen has the ability of seperating six different sizes of products in the same time.
operating principle:
In screen grading, the material is separated mechanically on screen plates. Rolling bearings in vibrating screens are stressed by high, mostly shock-type loads. Moreover, the bearings, while rotating about their own axis, perform a circular, elliptical or linear vibrating motion. This results in high radial accelerations which additionally stress the bearings, and especially the cages, considerably. The operating speeds are usually very high. As a result, the bearing temperatures are up to 20 to 30 degrees Kelvin higher than in normal applications. In addition, considerable misalignments between the bearing locations and considerable shaft deflections have to be accommodated.
Model |
No.of screen decks |
Screen size(mm) |
Max.feedsize(mm) |
Capacity (t/h) |
Vibrating frequeny (Hz) |
Motor power(kw) |
Weight (kg) |
3YK-1245 |
3 |
1200×4500 |
200 |
15-80 |
16.2 |
11 |
4807 |
3YZ-1548 |
3 |
1500×4800 |
200 |
30-200 |
13-16 |
15 |
6866 |
4YZ-1548 |
4 |
1500×4800 |
200 |
30-250 |
13-16 |
18.5 |
7360 |
2YK-1854 |
2 |
1800×5400 |
250 |
50-300 |
16.2 |
18.5 |
6769 |
3YK-1854 |
3 |
1800×5400 |
250 |
50-300 |
16.2 |
22 |
8285 |
4YK-1854 |
4 |
1800×5400 |
250 |
50-300 |
16.2 |
30 |
9796 |
2YK-2160 |
2 |
2100×6000 |
250 |
100-400 |
16.2 |
30 |
9680 |
3YK-2160 |
3 |
2100×6000 |
250 |
100-400 |
16.2 |
30 |
10206 |
3YK-2460 |
3 |
2400×6000 |
300 |
150-600 |
16.2 |
30 |
12350 |
DF-1230 |
1 |
1200×3000 |
200 |
20-200 |
16.2 |
5.5 |
1540 |
DF-1548 |
1 |
1500×4800 |
250 |
50-450 |
16.2 |
15 |
3750 |
DF-1854 |
1 |
1800×5400 |
300 |
70-600 |
16.2 |
15 |
4590 |
DF-2160 |
1 |
2100×6000 |
300 |
120-750 |
16.2 |
15 |
5423 |
...
