2.Introduction of SANYYO CC series Vibrating Screen
Vibrating screen are used to separate material into different sizes for further processing. Material is delivered onto the screen surface where it is moved by being vibrated and rolled with a circular motion. The SANYYO YK Vibrating Screen has earned its name from the long semi-circular motion which makes this machine one of the most efficient designs to date. This model is proven to be highly efficient, very reliable, with a durable structure with a low noise vibration.
It is both simple and safe to operate and maintain.
3.Features and benefits of SANYYO CC series Vibrating Screen
- Simple and dependable eccentric system.
- High screening capacity.
- Highly durability.
- No movement of screen mesh.
- Easy to replace screen mesh during maintenance.
- Rigid and vibrating resistant screen body.
4.Specification of SANYYO CC series Vibrating Screen
Specification:
Model |
Screen size(mm) |
Max feeding size(mm) |
Screen Decks |
Vibrating Frequency(HZ) |
Capacity(t/h) |
Power(kw) |
Weight(kg) |
Dimension (mm) |
3YK1245 |
1200x1500 |
200 |
3 |
16.2 |
15-80 |
11 |
4807 |
5600x1800x1850 |
3YK1548 |
1500x4800 |
200 |
3 |
13-16 |
30-200 |
15 |
6866 |
5906x2100x1900 |
4YK1548 |
1500x4800 |
200 |
4 |
13-16 |
30-250 |
18.5 |
7360 |
5906x2100x2150 |
2YK1854 |
1800x5400 |
250 |
2 |
16.2 |
50-300 |
18.5 |
6769 |
6509x2536x1810 |
3YK1854 |
1800x5400 |
250 |
3 |
16.2 |
50-300 |
22 |
8285 |
6509x2536x1910 |
4YK1854 |
1800x5400 |
250 |
4 |
16.2 |
50-300 |
30 |
9796 |
6509x2536x2250 |
2YK2160 |
2100x6000 |
250 |
2 |
16.2 |
100-400 |
30 |
9680 |
7120x2670x2120 |
3YK2160 |
2100x6000 |
250 |
3 |
16.2 |
100-400 |
30 |
10206 |
7120x2670x2270 |
4YK2160 |
2100x6000 |
250 |
4 |
16.2 |
100-400 |
30 |
11800 |
7120x2670x2650 |
2YK2460 |
2400x6000 |
300 |
2 |
16.2 |
150-600 |
30 |
11020 |
7120x2900x2260 |
3YK2460 |
2400x6000 |
300 |
3 |
16.2 |
150-600 |
30 |
12350 |
7120x2900x2350 |
4YK2460 |
2400x6000 |
300 |
4 |
16.2 |
150-600 |
37 |
13850 |
7120x2900x2680 |
2YK2665 |
2600x6500 |
300 |
2 |
16.2 |
250-700 |
37 |
14260 |
7500x3120x2310 |
3YK2665 |
2600x6500 |
300 |
3 |
16.2 |
250-700 |
37 |
15850 |
7500x3120x2820 |
4YK2665 |
2600x6500 |
300 |
4 |
16.2 |
250-700 |
45 |
17600 |
7500x3380x2870 |
2YK2865 |
2800x6500 |
350 |
2 |
16.2 |
350-900 |
22x2 |
16570 |
7500x3400x2280 |
3YK2865 |
2800x6500 |
350 |
3 |
16.2 |
350-900 |
22x2 |
14278 |
7500x3400x2470 |
4YK2865 |
2800x6500 |
350 |
4 |
16.2 |
350-900 |
22x2 |
16144 |
7500x3400x2530 |
YK3070 |
3000x7000 |
350 |
1 |
16.2 |
400-1100 |
18.5x2 |
12086 |
8000x3580x1890 |
2YK3070 |
3000x7000 |
350 |
2 |
16.2 |
400-1100 |
22x2 |
13899 |
8000x3860x2280 |
3YK3070 |
3000x7000 |
350 |
3 |
16.2 |
400-1100 |
22x2 |
18350 |
8000x3600x2490 |
4YK3070 |
3000x7000 |
350 |
4 |
16.2 |
400-1100 |
22x2 |
17543 |
8000x3860x2870 |
Electrical requirement |
|
380V-420V, AC(50/60Hz) or according to local standard |
||||||
Temperature range |
|
-50oC to 60oC |
||||||
Installation angle |
|
0° or 25° |
||||||
Raw material water content |
|
<12% |
||||||
Electric Control system |
|
ABB & Schneider, PLC |
||||||
Vibration |
|
Little |
||||||
Transportation way |
|
Vibrating |
||||||

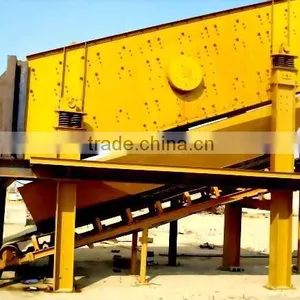

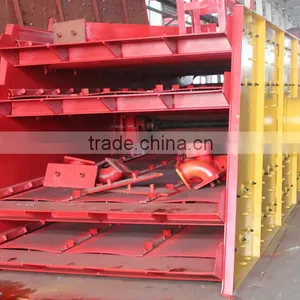

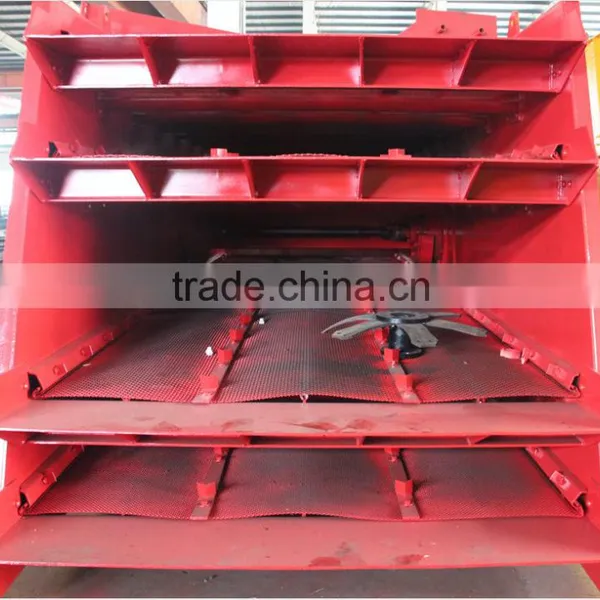

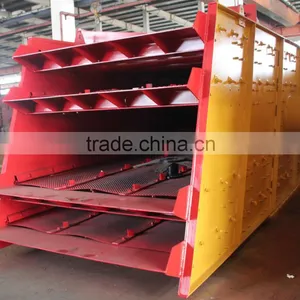

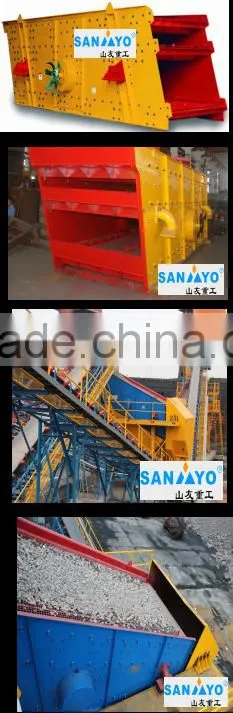

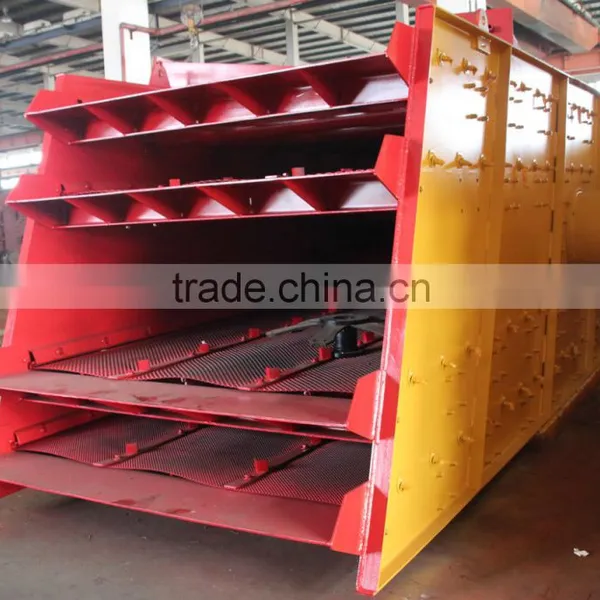

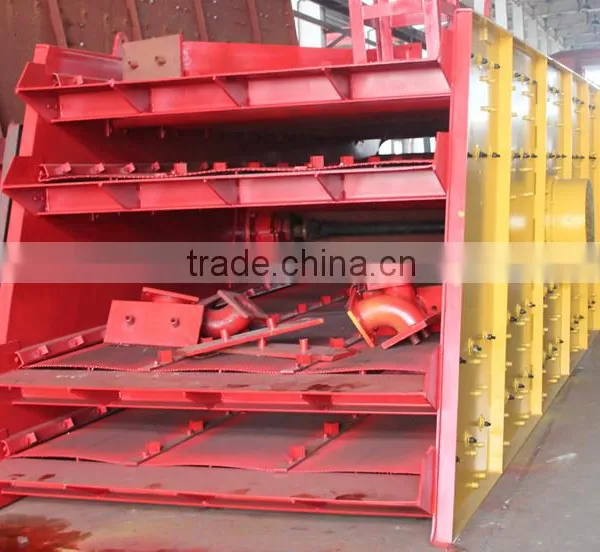

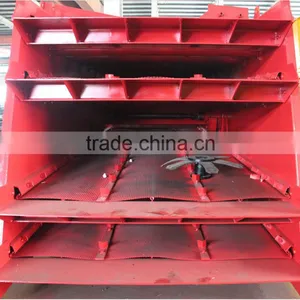

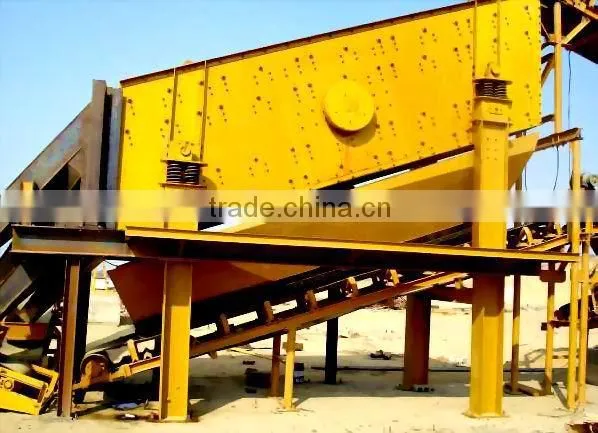

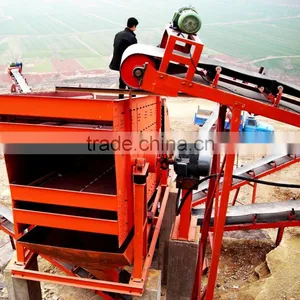

5.Pictures of SANYYO CC series Vibrating Screen
