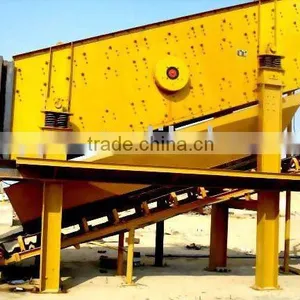

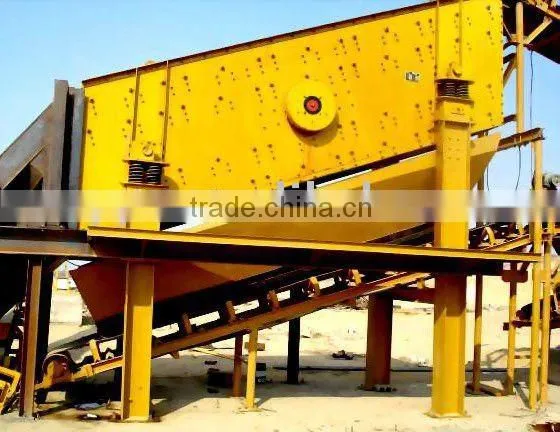

Help CenterLong Screening Area Vibrating Screen
Related Products
Specifications
muti-layers vibrating screen,1.long screening area with high capacity and even product 2.spring steel mesh,hardly be blockedSANYYO long screening area vibrating screen description
vibration screen equipment is used to separate aggregate. It is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad.
It is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on. (Note: our company can provide vibration screens of different specification and various vibration types according to the requirements of the consumers.)It adjusts the amplitude by tube-shaped violent vibration screen of eccentricshaft and eccentric blocks.
SANYYO long screening area vibration screen features
Shanghai Leiyou complete machinery Co.,Ltd is a specific company for manufacturing mining equipment. The sale prospect of vibration screens is always in the leading place of the same trade. Our vibration screen features with high efficiency round vibration screen and can grade six kinds of materials at the same time with even and high precision product, also can process with closed cycling to return the big size material to crushing machine to further crushing.
1.long screening area can achieve high capacity
2. adjustable amplitude to control the speed and product particle size and uniformity
3.multi-layer screen separation
4.Adopts tire coupling and soft connection makes operation smooth
5.fully closed structure without dust pollution;
6.both used in dry and water washing wet screening
Model |
No.of screen decks |
Screen size(mm) |
Max.feedsize(mm) |
Capacity (t/h) |
Vibrating frequeny (Hz) |
Motor power(kw) |
Weight (kg) |
3YK-1245 |
3 |
1200×4500 |
200 |
15-80 |
16.2 |
11 |
4807 |
3YZ-1548 |
3 |
1500×4800 |
200 |
30-200 |
13-16 |
15 |
6866 |
4YZ-1548 |
4 |
1500×4800 |
200 |
30-250 |
13-16 |
18.5 |
7360 |
2YK-1854 |
2 |
1800×5400 |
250 |
50-300 |
16.2 |
18.5 |
6769 |
3YK-1854 |
3 |
1800×5400 |
250 |
50-300 |
16.2 |
22 |
8285 |
4YK-1854 |
4 |
1800×5400 |
250 |
50-300 |
16.2 |
30 |
9796 |
2YK-2160 |
2 |
2100×6000 |
250 |
100-400 |
16.2 |
30 |
9680 |
3YK-2160 |
3 |
2100×6000 |
250 |
100-400 |
16.2 |
30 |
10206 |
3YK-2460 |
3 |
2400×6000 |
300 |
150-600 |
16.2 |
30 |
12350 |
DF-1230 |
1 |
1200×3000 |
200 |
20-200 |
16.2 |
5.5 |
1540 |
DF-1548 |
1 |
1500×4800 |
250 |
50-450 |
16.2 |
15 |
3750 |
DF-1854 |
1 |
1800×5400 |
300 |
70-600 |
16.2 |
15 |
4590 |
DF-2160 |
1 |
2100×6000 |
300 |
120-750 |
16.2 |
15 |
5423 |
screening sieve
...
