Grizzly Feeder,quarry Feeder,rock Feeder Machine

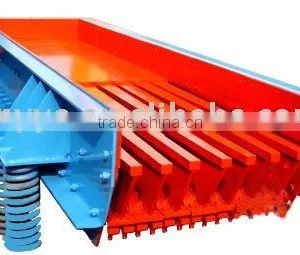

Grizzly Feeder,quarry Feeder,rock Feeder Machine thumbnail-1
Grizzly Feeder,quarry Feeder,rock Feeder Machine photo-1
US$ 1 - 999,999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity(t/h):
100-160 T/H
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Leiyou Complete Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Capacity(t/h) 100-160 T/H
Place of Origin Shanghai, China
Brand Name SANYYO
Model Number ZSW-380*96

Specifications

Vibrating Feeder, raw material feeder
Reliable and precise feed rate adjustment by speed and stroke.
Minimal maintenance



SANYYO Vibrating Feeder

Product introduction

SANYYO Vibrating Feeder design pays off well in spot applications, with coarse feed, up to 1300 mm, and small overall volume. SANYYO feeders are designed for high capacities, from 300 to 800 t/h in primary feeding applications,while the small overall volume makes SANYYO feeders cost-effective to install. Two motors design and an optional second deck for fines removal becomes the other impressive focus of SANYYO feeders. Better fines removal means better crusher performances. The trouble-free design ensured evenly and continiously material delivery from Hopper to Jaw crusher. The vibrating frequency and the slope of feeders can be adjusted easily.



Vibrating Feeder Used in:

It is widely used in Metallurgical Industry, Coal Mining Industry,Mining-selecting,Building Construction etc



Features and values

Reliable and precise feed rate adjustment by speed and stroke.

Minimal maintenance, and high performance

Minimum operating costs

Simple packaged feeding solutions

Vibrating Feeder Operating principle:
Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.

Model

Hopper size

(mm×mm)

Max.feedsize(mm)

Capacity

(t/h)

Rotating speed

(r/min)

Motor

Power

(kw)

weight

(t)

Overall dimensions

(mm×mm×mm)

GZD-750×250

750×250

300

30-80

1000

1.5×2

1.29

2580×1430×600

GZD-300×900

3000×900

500

40-100

1000

3.0×2

2.96

3050×1430×1550

GZD-370×1000

3700×1000

700

100-150

1000

3.7×2

3.70

3980×1878×866

GZD-490×110

4900×1100

900

120-300

350-800

5.5×2

4

5200×1900×950

GZD-500×120

5000×1200

1000

200-400

350-800

5.5×2

5.2

5450×2000×950

ZSW-380×96

3800×960

700

100-160

350-800

11

4.21

3882×1684×1340

ZSW-490×110

4900×1100

800

150-350

350-800

15

5.41

4957×1841×1365

ZSW-590×110

5900×1100

900

200-400

350-800

22

6.05

6000×1841×1365

ZSW-600×130

6000×1300

1000

400-580

350-800

22

7.50

6082×2580×2083

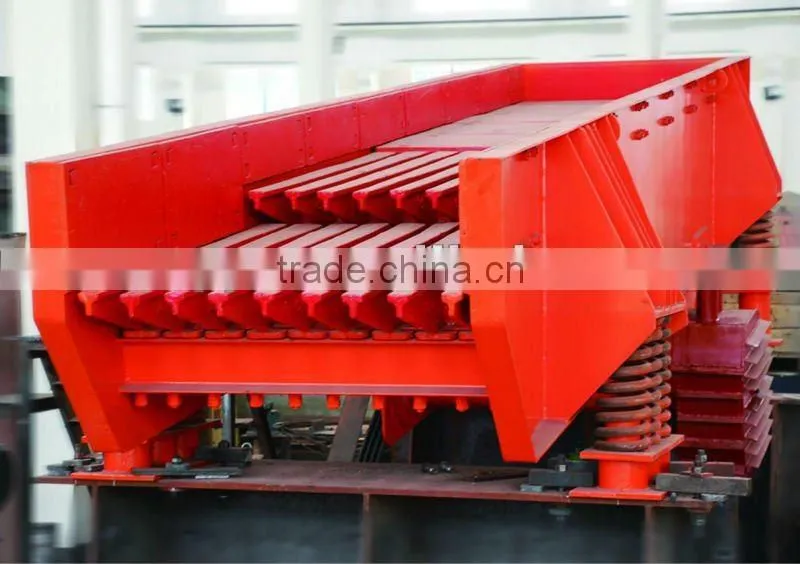

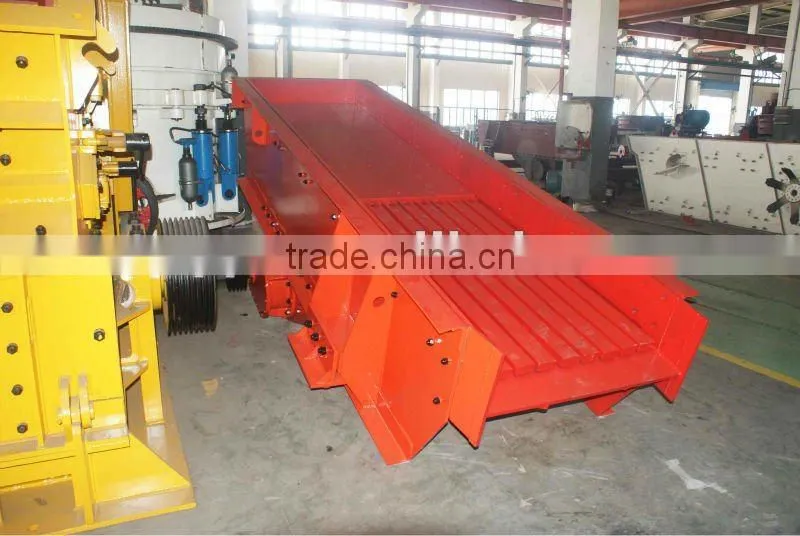

Grizzly feeder,quarry feeder,rock feeder machineGrizzly feeder,quarry feeder,rock feeder machine
