Home > Products > 10. Bottle blowing machine > semi automatic bottle blowing machine
semi automatic bottle blowing machine
- 20 Set / Sets per Month
- ningbo
- Credit Card PayPal
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Bottle | Plastic Processed: | PET |
Blow Moulding Type: | Injection Blow Moulding | Automatic: | No | Place of Origin: | Zhejiang, China |
Brand Name: | T&D | Model Number: | TD-2L | Voltage: | 380V/50HZ |
Power(W): | 0.2kw | Dimension(L*W*H): | 1720*610*1400mm | Weight: | 250kg |
Certification: | CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

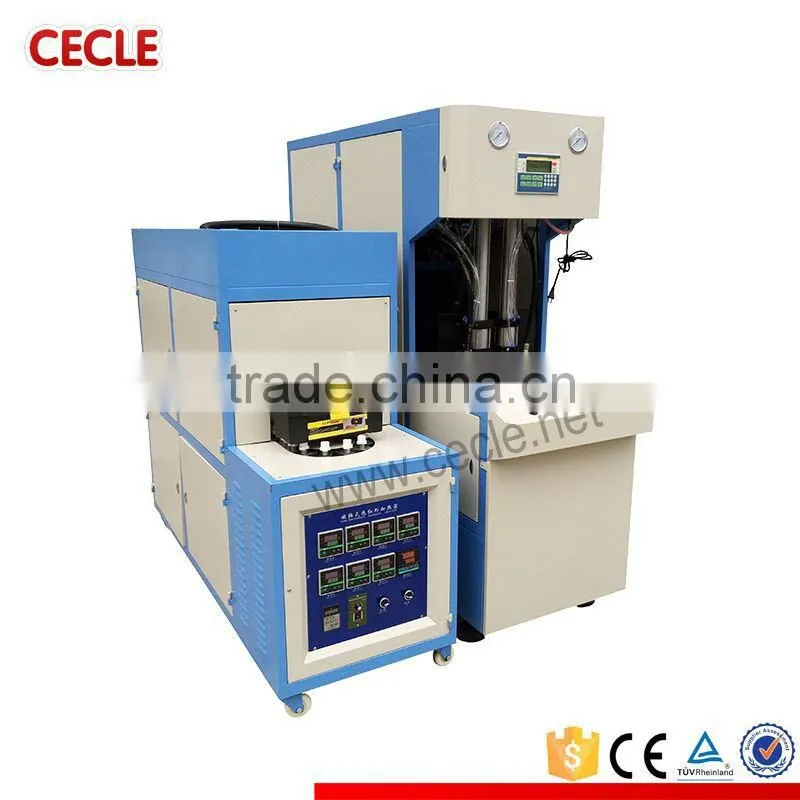

semi automatic bottle blowing machine
CJH-2L model of multi-functional plastic bottle blowing machine is controlled by digital instrument(computer type), can more accurately control technology parameters, very easy operation, safe, only need one operator operation, the operator don’t need special training;
CJH-2L model of multi-functional plastic bottle blowing machine are suitable for blowing carbonic acid beverage bottle, mineral water bottles, cosmetic bottle, oil bottle, space cup, etc hollow container;
Feature:
Blowing 0.1 to 2 liters of PET bottles;
Two die cavity, a pair of mold, blowing 500ml bottle production capacity can reach 600-1100 per hour;
By (computer) digital instrument control system, control of time can be accurate to 0.01 seconds;
Inside the machine with special high and low pressure air storage device;
The heating oven is adopted infrared light tube, heating control device, strong penetrating power, heat evenly, Fast and reliable, to ensure that the bottle preform has ideal heating effect;
The location of the heating tube can be adjusted according to different bottle preform, make product scrap rate is reduced greatly;
Only one operator, do not need special training;
Machine installation is very simple, the operator operation and maintenance easy.
Parameters:
One with one Instrument control system of blowing machine
One with one computer control system of blowing machine
| ||
Instrument control
or
computer control | Model | TD-2L |
Voltage | 380V/50HZ | |
Power | 0.2kw | |
Speed | 700-800 piece/h | |
Maximum capacity | ≤1500mL | |
Bottle preform diameter | Ø15-Ø35mm | |
Bottle diameter | Ø 90mm | |
Bottle height | 350mm | |
Die cavity | Two sets | |
Blowing pressure | 3Mpa | |
Dimension(L*W*L) | 1550*650*1600mm | |
Weight | 450kg | |
Over power | 13kw | |
Over dimension(L*W*H) | 1720*610*1400mm | |
Over weight | 250kg | |
Packaging | Plywood case packing |
Accessories:
| Parts name | Quantity | Other |
1 | Digital indicator | 1 piece | Computer type except |
2 | Clamping cylinder seal ring | 1 set |
|
3 | Sealing, Stretching cylinder seal ring | 1 set |
|
4 | Adjust the mould wrench | 1 set |
|
5 | Over temperature control table | 1 set |
|
6 | Oven heating tube | 5 set |
|
7 | Manual in English | 1 copy |
|

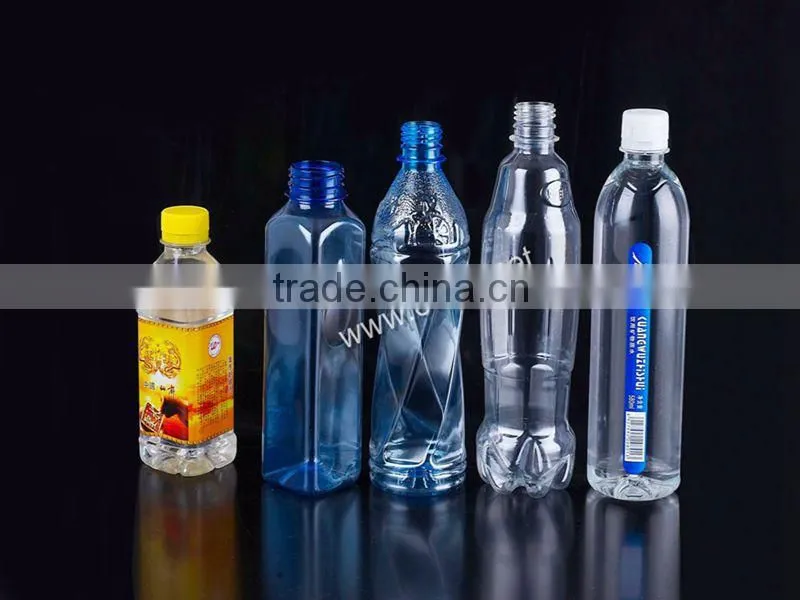

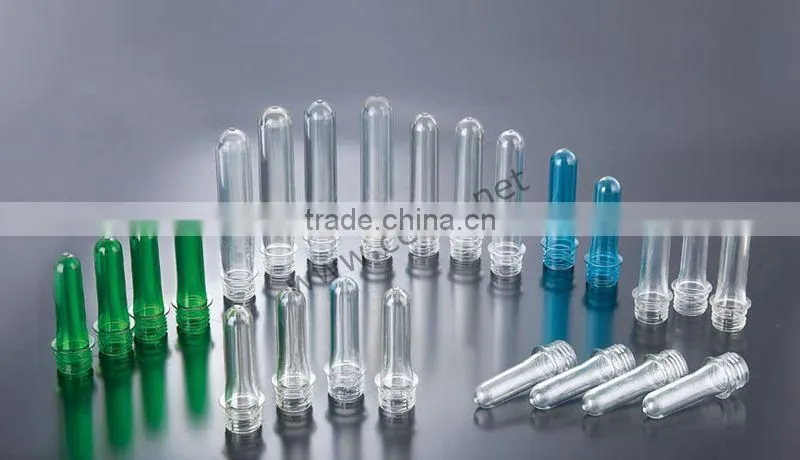

samples:
Packaging details: | Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety; |
Shipping methods: | 1. Shipping by sea(recommend big product or a lot of goods of the order) |
2. By air | |
3. By express: TNT, EMS, DHL, Fedex, UPS etc |
1. Each machine is manufactured by our professional staff production and manufacturing;

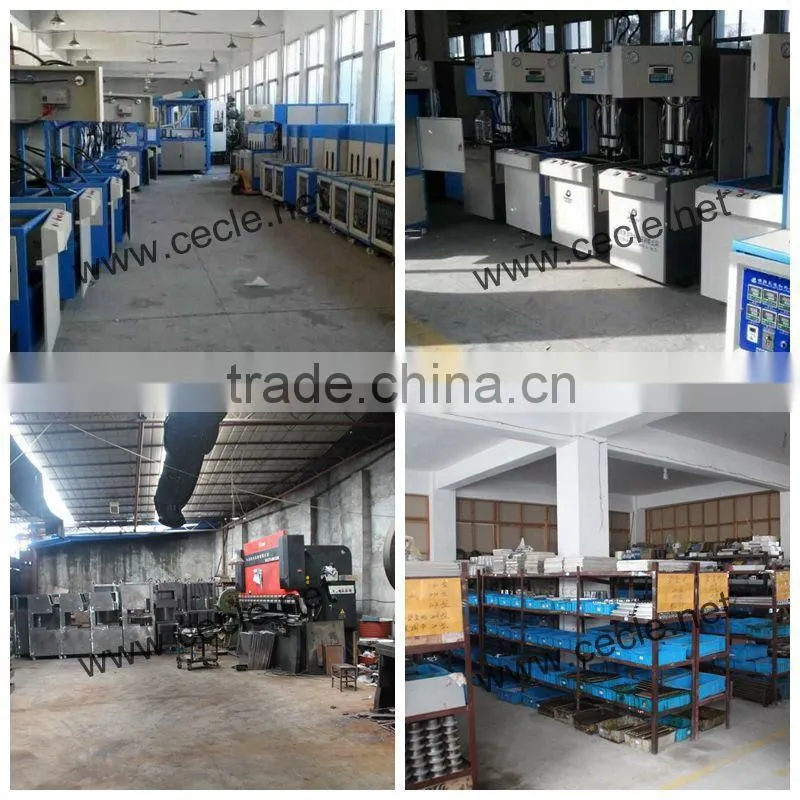

Factory picture
1) Do you have manual or operation video for us to know more about the machine?
Answer: Yes, we will send the video link of the operating the machine to the customer, we have put all of the video on youtube website, convenience of our customers to see. After customers to buy the machine, we will configuration instructions in English to customer, together with the machine packaging.
2) If the machine some spare parts damaged, how to solve the problem?
Answer: Under warranty, first of all please send pictures or shoot video tell us machine damaged parts, after the two sides confirmed, we can send the spare parts of the machine to you for free, the freight shall be the responsibility of the buyer, or send to you with next order from us.
