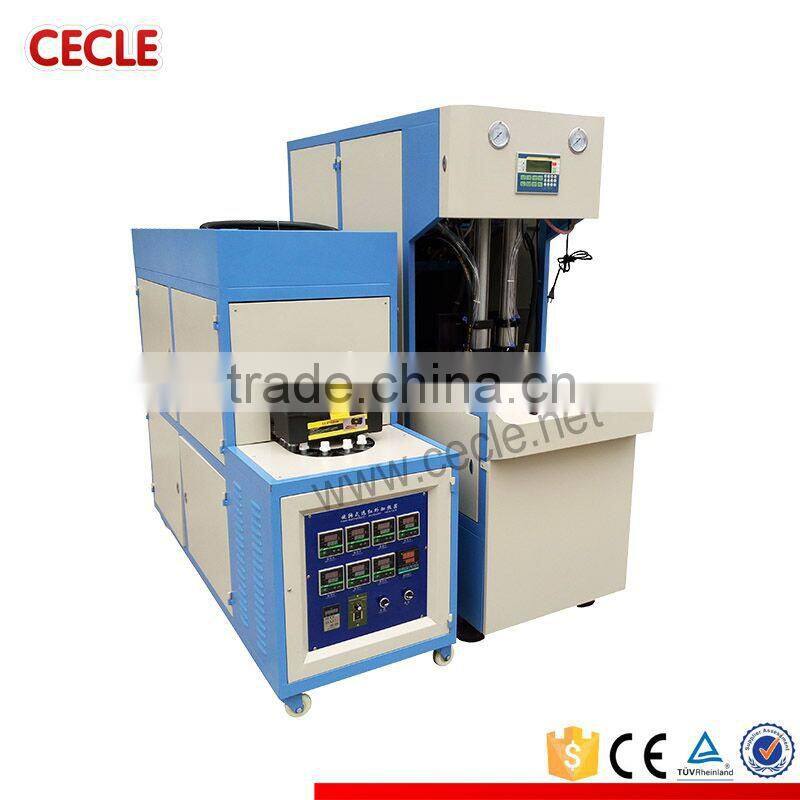

semi auto plastic PET bottle blowing machine
CJH-2L model of multi-functional plastic bottle blowing machine is controlled by digital instrument(computer type), can more accurately control technology parameters, very easy operation, safe, only need one operator operation, the operator don’t need special training;
CJH-2L model of multi-functional plastic bottle blowing machine are suitable for blowing carbonic acid beverage bottle, mineral water bottles, cosmetic bottle, oil bottle, space cup, etc hollow container;
Feature:
Blowing 0.1 to 2 liters of PET bottles;
Two die cavity, a pair of mold, blowing 500ml bottle production capacity can reach 600-1100 per hour;
By (computer) digital instrument control system, control of time can be accurate to 0.01 seconds;
Inside the machine with special high and low pressure air storage device;
The heating oven is adopted infrared light tube, heating control device, strong penetrating power, heat evenly, Fast and reliable, to ensure that the bottle preform has ideal heating effect;
The location of the heating tube can be adjusted according to different bottle preform, make product scrap rate is reduced greatly;
Only one operator, do not need special training;
Machine installation is very simple, the operator operation and maintenance easy.
Parameters
|
One with one Instrument control system of blowing machine
One with one computer control system of blowing machine
| ||
|
Instrument control
or
computer control |
Model |
TD-2L |
Voltage |
380V/50HZ |
|
Power |
0.2kw |
|
Speed |
700-800 piece/h |
|
Maximum capacity |
≤1500mL |
|
Bottle preform diameter |
Ø15-Ø35mm |
|
Bottle diameter |
Ø 90mm |
|
Bottle height |
350mm |
|
Die cavity |
Two sets |
|
Blowing pressure |
3Mpa |
|
Dimension(L*W*L) |
1550*650*1600mm |
|
Weight |
450kg |
|
Over power |
13kw |
|
Over dimension(L*W*H) |
1720*610*1400mm |
|
Over weight |
250kg |
|
Packaging |
Plywood case packing |
|
Accessories List
|
Parts name |
Quantity |
Other |
1 |
Digital indicator |
1 piece |
Computer type except |
2 |
Clamping cylinder seal ring |
1 set |
|
3 |
Sealing, Stretching cylinder seal ring |
1 set |
|
4 |
Adjust the mould wrench |
1 set |
|
5 |
Over temperature control table |
1 set |
|
6 |
Oven heating tube |
5 set |
|
7 |
Manual in English |
1 copy |
|

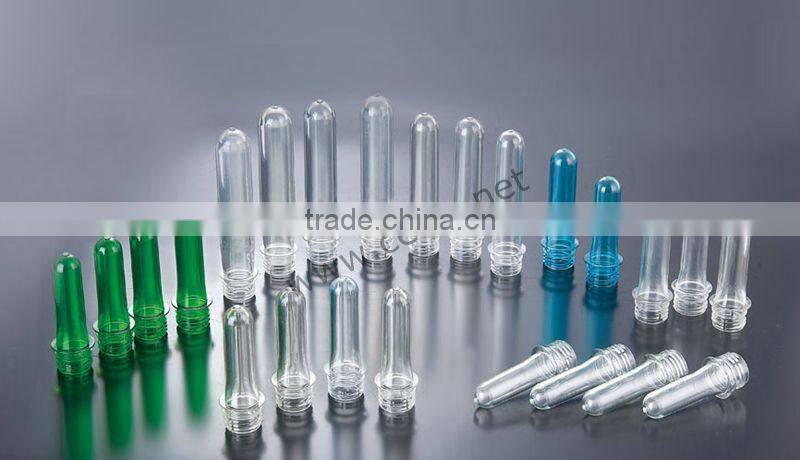

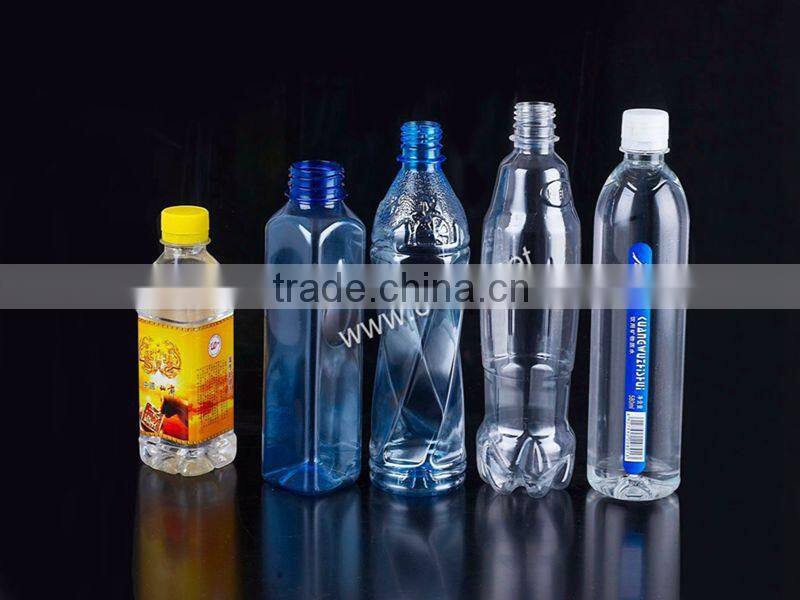

samples:
| Packaging details | Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety; |
| Shipping methods | 1. Shipping by sea(recommend big product or a lot of goods of the order) |
| 2. By air | |
| 3. By express: TNT, EMS, DHL, Fedex, UPS etc |
Shipping Port: Port of Ningbo

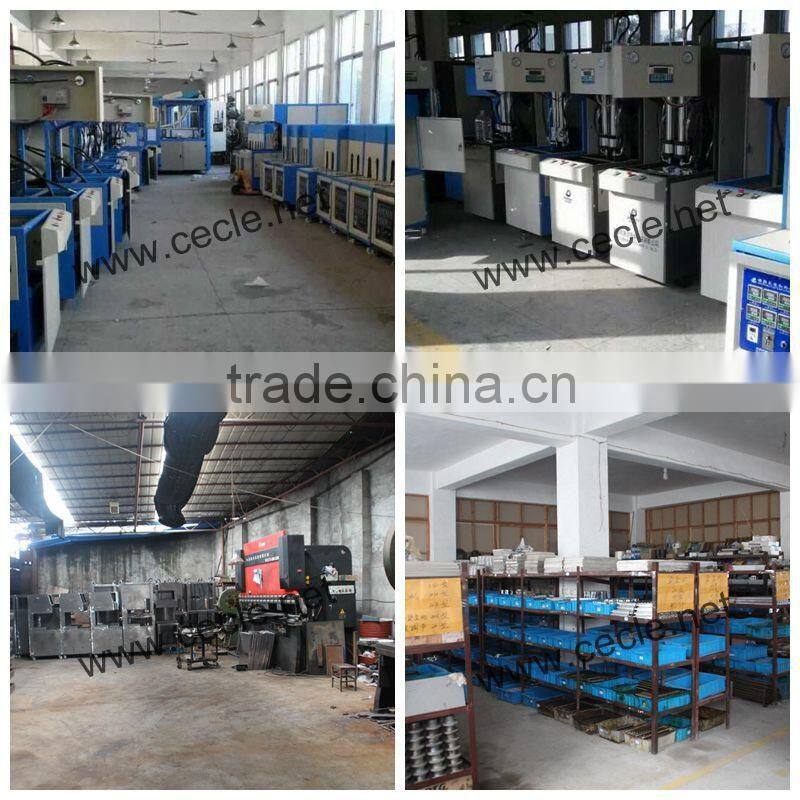

1. Each machine is manufactured by professional experienced staff.
5. We can also offer PVC, PE films, BOPP films, stamping dies, hot foil papers etc.
1. Our company was started in 1992, we can offer the most professional packing schemes to guests all over the globe.
2. We cherish every "contact supplier"click and bend ourselves to quick response to guests all over the globe.
3. We adhere to the philosophy of quality wins and innovation makes success.
4. "One-stop" service system: inquiry, details discussing, order, payment, testing machine,packing, delivery, receiving, after-sale services.
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
