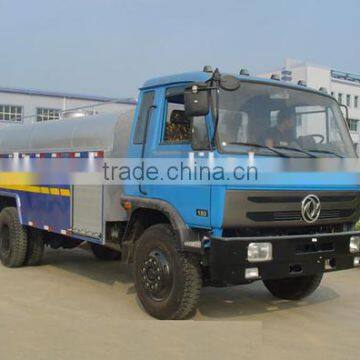

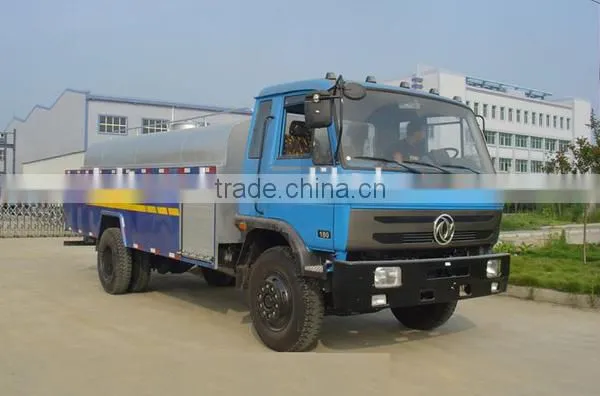

DONGFENG 4x2 6000L Pressure Washing Truck 170hp Cummins Engine Cheap Price

Name: DONGFENG 4x2 6000L Pressure Washing Truck 170hp Cummins Engine Cheap Price
Brand: DONGFENG
SKU: 123362613
Availability: InStock

US$ 25,000 - 29,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

DONGFENG

Model Number:

HLQ5108GQXE pressure washing truck

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name DONGFENG

Model Number HLQ5108GQXE pressure washing truck

Product Description

Vehicle parameters
Vehicle Model		HLQ5108GQXE	Vehicle Brand	HELI
Overall dimensions		7320×2490×2950mm	Curb weight	5800kg
Tank dimensions		3490×2100×1380mm	Tank volume	6000L
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

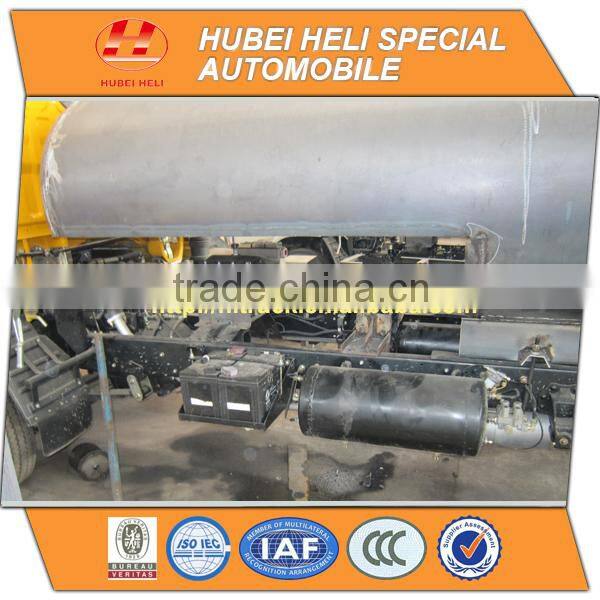

Chassis parameters
Chassis model			EQ1108KJ	Chassis brand	DONGFENG
Overall dimensions			6975X2462X2690mm	Wheel base	3950mm
Front/rear wheel track			1900/1800mm	Front/rear suspension	1205/1820mm
Approach/departure angle			25/18°	Maximum speed	90km/h
Chassis Manufacturer			Dongfeng Motor Company
Cab	Configuration		A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
	Color		Blue,other color is optional
Engine	Model		B170 33
	Emission		Euro 3
	Type		6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
	Rated power		170hp,rated power speed 2500rpm
	Displacement		5900ml
	Max.torque		560N.m
	Bore x stroke		102x120mm
	Manufacturer		Dongfeng Cummins Engine Co., Ltd.
Tire	Size		9.00-20 nylon tire
	Number		6+1 nos
Frame	(250×80×7)mm,parts are double layers.
Fuel tank	160L,steel
Front axle	3.6T
Rear axle	9.0T
Drive form	4X2
Rated voltage	24V,DC
Transmissions	Gearbox DF6S, 6 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration		Air Conditioner,steel wire tire,new driver’s cab
If there is a slight change in the chassis parameters above,please take the actual product as the standard

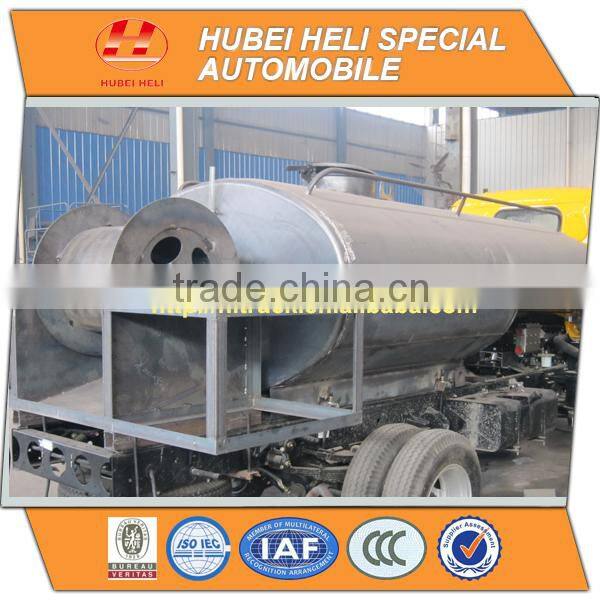

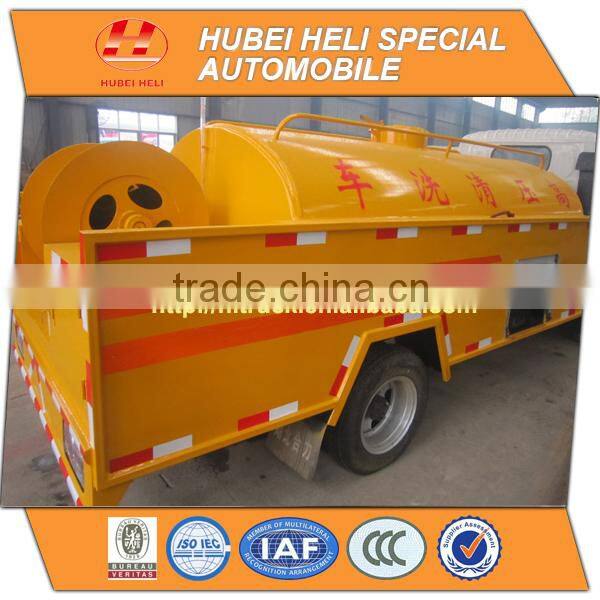

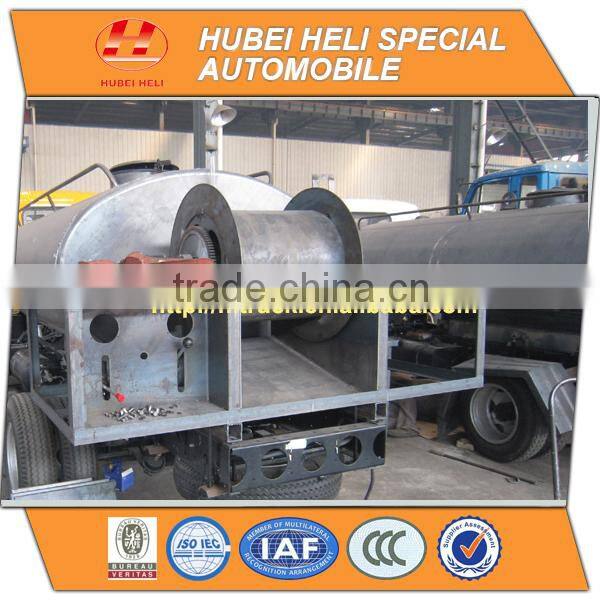

Pressure washing tank structure parameters
Tank dimensions		3490×2100×1380mm	Tank volume	6000L
Tank material		Carbon steel	Tank thickness	4/5mm
Color and Logo		Optional

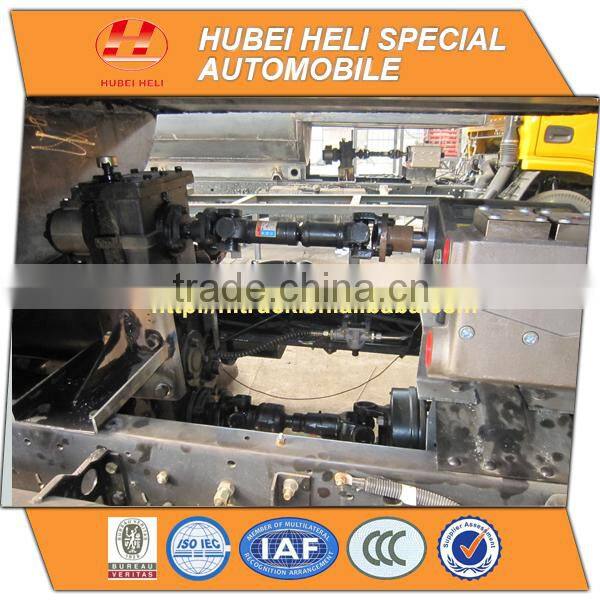

Italy UDOR plunger pump
Model		VX-B 130/160 R-L	RPM	1000r/min
Flow		124L/min	Pressure	16Mpa
Power		37.4kw	Weight	57kg
Standard configuration	Chassis,sub frame,pressure washing tank,Italy UDOR plunger pump VX-B 130/160 R-L,reel with 60 meters pressure hose,10 units stainless steel high pressure nozzles,tool box.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and pressure washing tank structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
