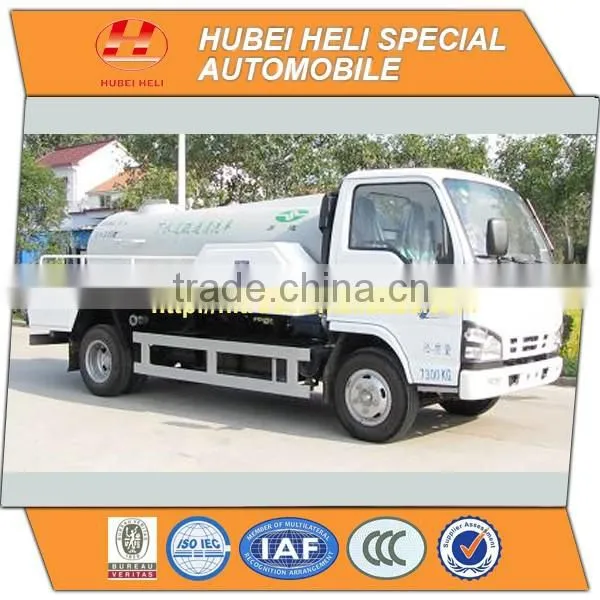

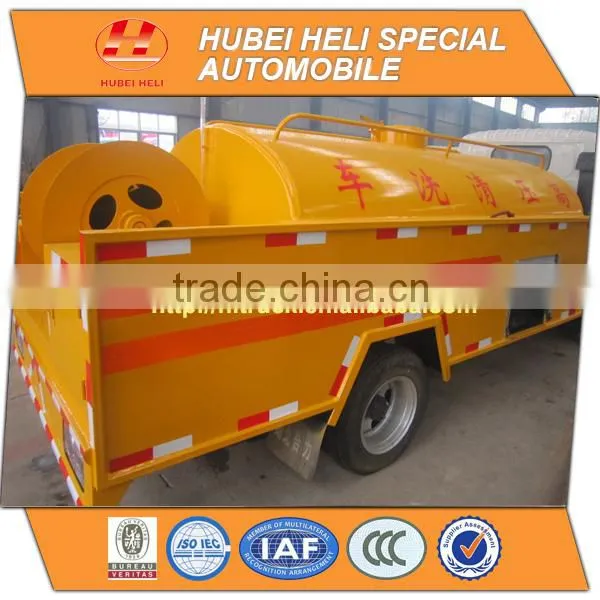

Japan Technology 4x2 4000L Sewer Dredge Truck 120hp Engine Good Quality

Name: Japan Technology 4x2 4000L Sewer Dredge Truck 120hp Engine Good Quality
Brand: ISUZU
SKU: 123362631

US$ 26,000 - 33,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

ISUZU

Model Number:

HLQ5070GQXQ sewer dredge truck

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name ISUZU

Model Number HLQ5070GQXQ sewer dredge truck

Product Description

Vehicle parameters
Vehicle Model		HLQ5070GQXQ	Vehicle Brand	HELI
Overall dimensions		5900X1880X2180mm	Curb weight	4020kg
Tank dimensions		3420×1280×1060mm	Tank volume	4000L
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model			QL1070A1HAY	Chassis brand	ISUZU
Overall dimensions			5900X1880X2160mm	Wheel base	3360mm
Front/rear wheel track			1504/1425mm	Front/rear suspension	1015/1525mm
Approach/departure angle			24/16°	Maximum speed	105km/h
Chassis Manufacturer			QingLing Motors (Group) Co., Ltd.
Cab	Configuration		600P,single row cab,allowable 3 passengers, air conditioner, USB radio interface,car interior
	Color		White,other color is optional
Engine	Model		4KH1-TCG40
	Emission		Euro 4
	Type		4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve, diesel engine
	Rated power		120hp,rated power speed 3400rpm
	Displacement		2999ml
	Manufacturer		Isuzu (chongqing) engine Co., Ltd.
Tire	Size		7.00-16 14PR nylon tire
	Number		6+1 nos
Frame	172X65(4+3)mm
Front axle	2.5 tons
Rear axle	4.8 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	Isuzu MSB five speed transmission,5 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration		Tire options of small tonnage:650R16 and big tonnage 700R16
If there is a slight change in the chassis parameters above,please take the actual product as the standard

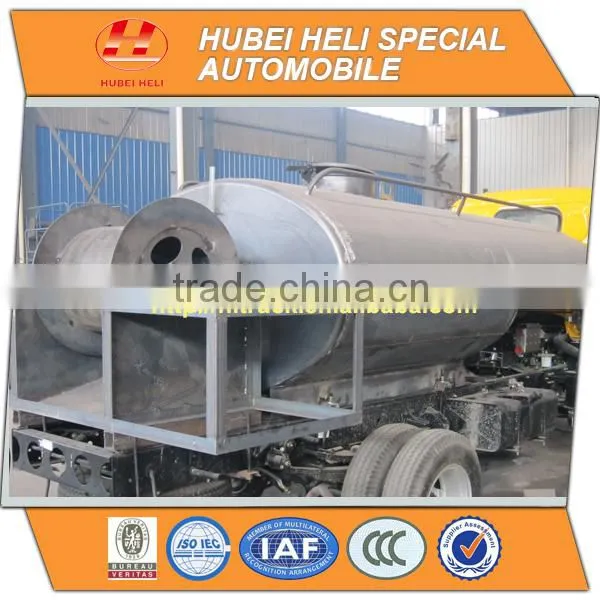

Pressure washing tank structure parameters
Tank dimensions		3420×1280×1060mm	Tank volume	4000L
Tank material		Carbon steel	Tank thickness	4/5mm
Color and Logo		Optional
Italy UDOR plunger pump
Model		VX-B 130/160 R-L	RPM	1000r/min
Flow		124L/min	Pressure	16Mpa
Power		37.4kw	Weight	57kg
Standard configuration	Chassis,sub frame,pressure washing tank,Italy UDOR plunger pump VX-B 130/160 R-L,reel with 60 meters pressure hose,10 units stainless steel high pressure nozzles,tool box.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and pressure washing tank structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
