Help CenterSound Console Slide Potentiometer Stereo Volume Control Slide Potentiometer
Related Products
-
60 mm Slide Potentiometer B10k Slide PotentiometerUS$ 0.1 - 1MOQ: 1000 Pieces -
B503 Slide Potentiometer 15mm Travel Length Slide PotentiometerUS$ 0.1 - 1MOQ: 1000 Pieces
-
Volume Control A200k Potentiometer 45mm Slide PotentiometerUS$ 0.1 - 1MOQ: 1000 Pieces
-
Low Cost Slide Potentiometer Slide Potentiometer 15mm TravelUS$ 0.1 - 1MOQ: 1000 Pieces
-
Linear Slide Potentiometer With 6 Pins ,B500 Slide PotentiometerUS$ 0.1 - 1MOQ: 1000 Pieces

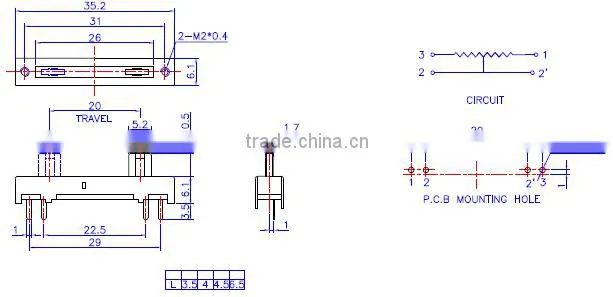

Outline drawing :
| Electric characteristics: | |
| Total resistance : | 500Ω-1MΩ |
| Total resistance tolerance: | ±20% |

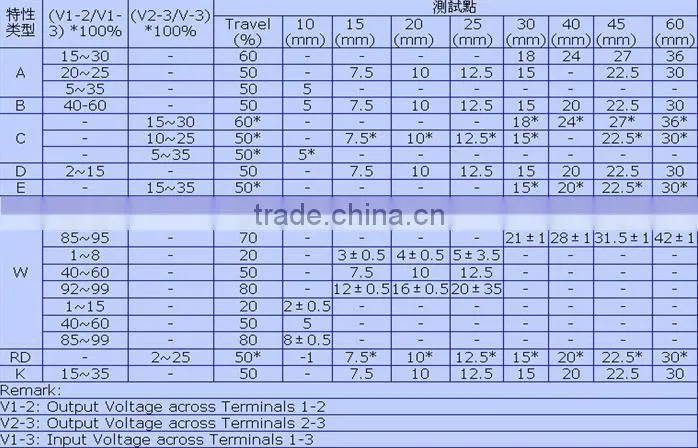

| Resistance taper: | A,B,C,D |
| Sliding noise: | Less than 100mV |
| Insulation resistance : | 5~15mm:More than 50MΩat DC 100V 20mm:More than 50MΩat DC 250V |
| Withstand voltage : | 5~15mm:1 minute at AC 100V 20mm:1 minute at AC 250V |
| Residual resistance: | Term.1~2:Less than 10Ω Term.2~3:Less than 10Ω |
| Tracking error(dual unit): | :-40dB~0dB±3dB |
| Rated power: | |
| B taper : | 15mm:AC 100V 20mm 30mm 45mm 60mm:AC 200V |
| The other taper: | 15mm:AC 50V 20mm 30mm 45mm 60mm:AC 150V |
| Rated power(single unit/dual unit) | |
| B taper: | 4mm,5mm:AC 50V 10mm 15mm:AC 100V 20mm:AC 200V |
| The other taper: : | 4mm,5mm:0.025W/0.012W 10mm:0.015W/0.01W 15mm:0.025W/0.01W 20mm:0.05W/- |
| Mechanical characteristics: | |
| Operating force: | 20~200 gf.cmgf.cm |
| Click slip-out force (only Center Click) | |
| Operating force : | 30~300 gf.cm |
| Lever stop strength: | 2.5Kgf.cm(from the base level to a point of 2mm) |
| Lever wobble: | 2(2xL)/25mm Max.(L:Level length both sides) |
| Push-pull strength: | 1.0 Kgf Min. at 10sec. |
| Endurance characteristics: | |
| Rotary life: | 10000 Cycles |
1. PACKING METHOD:(only for reference,different product using different packaging)
Company introduction
HongKong HongYu Electronics(technology)Co.,Ltd was established in 1996.With the rapid development of electronic industry in domestic of China ,HongYu Innovation Electronic Co.,Ltd.was set up in Huizhou in 2009.It is specialized in development,manufacture and selling products of potentiometer,encoder,and switch which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets ,the main clients are Siemens,Electrolux,A.O Smith, Budweiser and other famous international enterprises..
Viewing photos
Honours&certificates
What is the application of this part ?
Hongyu sliding potentiometer is Applied to :sound console,electronic musical instrument,car audio,industrial control,other instruments .
How to understand more of Hongyu products ?
Please check with our website of and two dimensional code as below.
