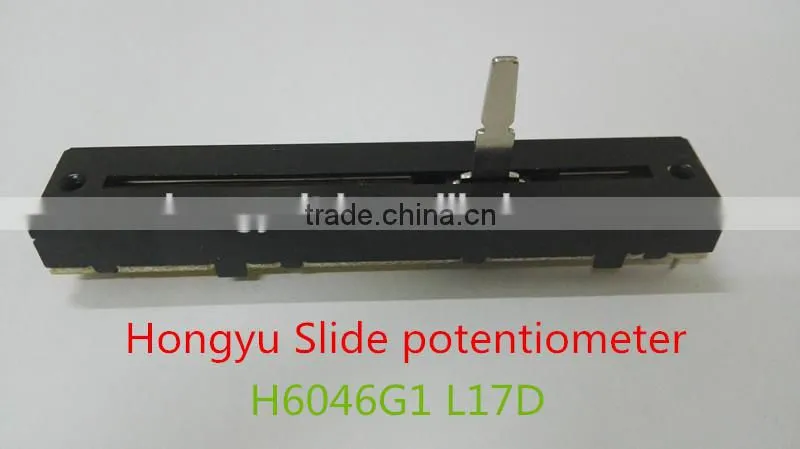

60 mm slide potentiometer b10k slide potentiometer
Outline drawing :
Electrical characteristics:
| Total Resistance: | 10KΩ-1MΩ | |||
| Total Resistance Tolerance: | ±20% | |||
| Resistance Taper: | A,B,C,D | |||
| Sliding Noise: | Less than 100mV | |||
| Insulation Resistance: | More than 10MΩat DC 250V | |||
| Withstand Voltage: | 1 minute at AC 300V | |||
| Residual Resistance: | Term.1~2:Less than 1Ω Term.2~3:Less than 1Ω | |||
| Gang Error(Dual Unit): | -40dB~0dB±3dB | |||
| Max.Operation Voltage: | DC300V | |||
Mechanical characteristics:
1.Total sliding travel:60mm±0.5mm
2.Operation torque:20~100gf.cm.
3. Push-pull strength: 3Kgf/cm,10 sec.
4.Sliding stopper strength: 5Kgf/cm .
5. Number of click: 1C
6.Torque of click: 30~200gf.cm
(5,6 is used for click only)
Endurance characteristics:
1.Sliding life: More than 10,000 cycles.
Others
1.Operating temperature range: -10℃~+70℃
2.Storage temperature range:-20℃~+80℃
1. PACKING METHOD:(only for reference,different product using different packaging)
1.1. Let the V.R be placed into plastic box and cover the case, and the plastic boxes be superposed one by one and use adhesive tape them together.
1.2. Let the packed plastic boxes be placed into two row (altogether fourteen plastic boxes) of the carton and use adhesive tape to seal.
2. MEASUREMENT AND QUANTITY:
2.1. Plastic box (length x width×high): 300mm×185mm×40mm
2.2. A plastic box contain 6×8=48pcs of V.R (every lattice contain 1pcs of V.R)
2.3. A group of plastic box contain 48×7=336pcs of V.R.
2.4. Carton (length x width×high): 380mm×315mm×230mm.
2.5. A carton contain 336×2=672pcs of V.R(2 group of plastic boxCan be placed on).
3. WEIGHT:
3.1. N.W:5.8kg
3.2. G.W:6kg
Company introduction
HongKong HongYu Electronics(technology)Co.,Ltd was established in 1996.With the rapid development of electronic industry in domestic of China ,HongYu Innovation Electronic Co.,Ltd.was set up in Huizhou in 2009.It is specialized in development,manufacture and selling products of potentiometer,encoder,and switch which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets ,the main clients are Siemens,Electrolux,A.O Smith, Budweiser and other famous international enterprises..

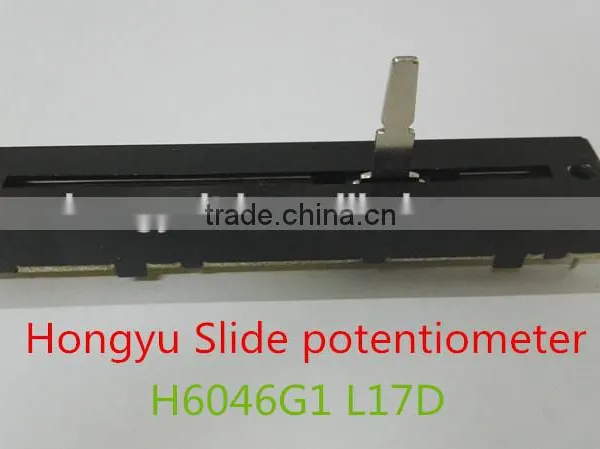

Viewing photos
What is the application of this part ?
Hongyu slide potentiometer is Applied to :sound console,electronic musical instrument,car audio,industrial control,other instruments .
How to understand more of Hongyu products ?
Please check with our website of and two dimensional code as below.
