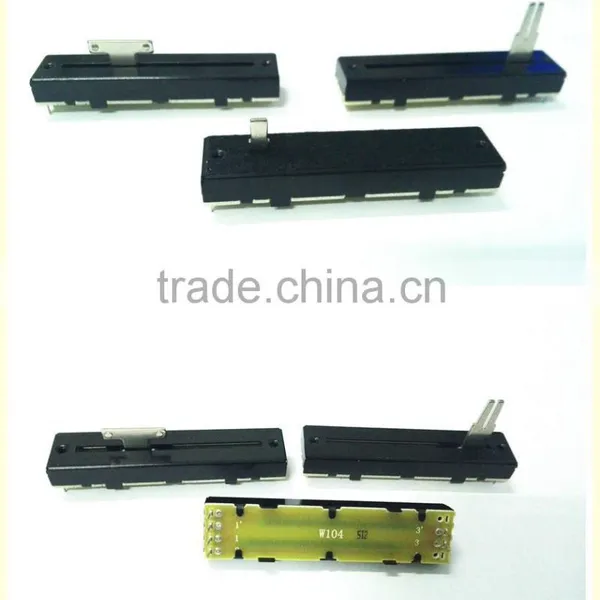

volume control A 200k potentiometer 45mm slide potentiometer
Outline drawing :
Electrical characteristics:
| Total Resistance: | 500Ω-1MΩ | |||
| Total Resistance Tolerance: | ±20% | |||
| Resistance Taper: | A,B,C,D | |||
| Sliding Noise: | Less than 100mV | |||
| Insulation Resistance: | More than 10MΩat DC 250V | |||
| Withstand Voltage: | 1 minute at AC 300V | |||
| Residual Resistance: | Term.1~2:Less than 1Ω Term.2~3:Less than 1Ω | |||
| Gang Error(Dual Unit): | -40dB~0dB±3dB | |||
| Max.Operation Voltage: | DC300V | |||
Mechanical characteristics:
1.Total sliding travel:45mm±0.5mm
2.Operation torque:30~250gf.cm.
3. Push-pull strength: 5Kgf/cm,10 sec.
4.Sliding stopper strength: 5Kgf/cm .
5. Number of click: 1C
6.Torque of click: 40~300gf.cm
(5,6 is used for click only)
Endurance characteristics:
1.Sliding life: More than 10,000 cycles.
Others
1.Operating temperature range: -10℃~+70℃
2.Storage temperature range:-20℃~+80℃
Bright points:
(1)1 ~ 2 pole, PCB terminals
(2)Excellently stable contact ability. Taiwan quality.
(3) High quality, competitive price , it is suitable for high-fashion musical & other electric products.
(4)Low minimum order, fastest lead time,continual after-sale service.
(5),There are five series potentiometers:rotary potentiometer/slide potentiometer/trimmer potentiometer/wire-wound potentiometer/preset potentiometer
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation,
we have greatest experience in new mould customized and OEM.
Company introduction
HongKong HongYu Electronics(technology)Co.,Ltd was established in 1996.With the rapid development of electronic industry in domestic of China ,HongYu Innovation Electronic Co.,Ltd.was set up in Huizhou in 2009.It is specialized in development,manufacture and selling products of potentiometer,encoder,and switch which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets ,the main clients are Siemens,Electrolux,A.O Smith, Budweiser and other famous international enterprises..
Viewing photos
Honours&certificates
What is the application of this part ?
Hongyu slide potentiometer is Applied to :sound console,electronic musical instrument,car audio,industrial control,other instruments .
How to understand more of Hongyu products ?
Please check with our website of and two dimensional code as below.
