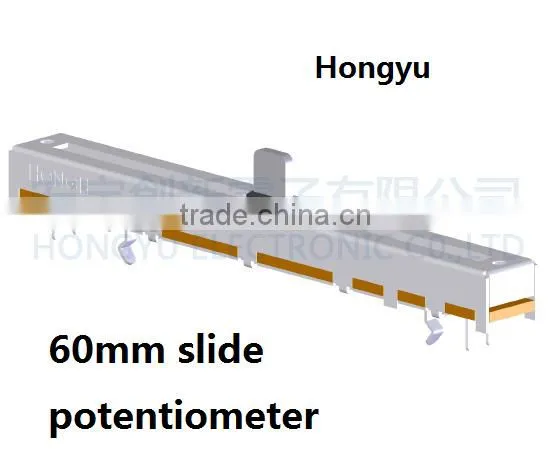

straight sliding potentiometer 60mm 6pins straight sliding potentiometer
Outline drawing :
| Electric characteristics: | |
| Total resistance : | 500Ω-1MΩ |
| Total resistance tolerance: | ±20% |

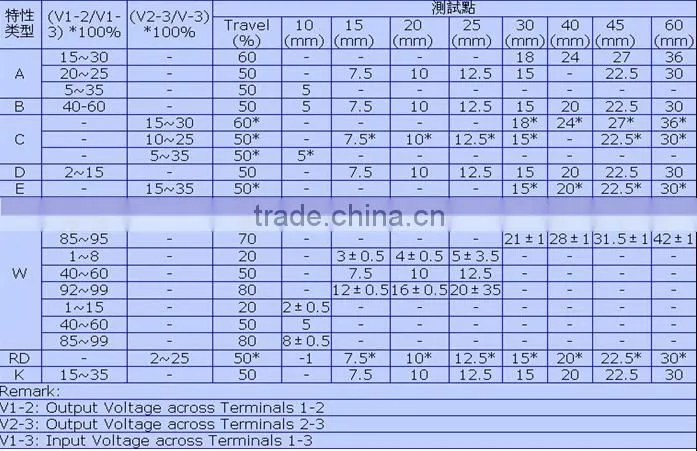

| Resistance taper: | A,B,C,D |
| Sliding noise: | Less than 100mV |
| Insulation resistance : | More than 10MΩat DC 250V |
| Withstand voltage : | 1 minute at AC 300V |
| Residual resistance: | Term.1~2:Less than 10Ω Term.2~3:Less than 30Ω |
| Tracking error(dual unit): | -40dB~0dB±3dB |
| Rated power: | |
| B taper : | 15mm:AC 100V 20mm 30mm 45mm 60mm:AC 200V |
| The other taper: | 15mm:AC 50V 20mm 30mm 45mm 60mm:AC 150V |
| Rated power(single unit/dual unit) | |
| B taper: | 15mm:0.05W/0.025W 20mm:0.1W/0.05W 30mm:0.2W/0.1W 45mm:0.25W/0.125W 60mm:0.2W/0.2W |
| The other taper: | 15mm:0.025W/0.012W 20mm:0.05W/0.025W 30mm:0.1W/0.05W 45mm:0.125W/0.06W 60mm:0.1W/0.1W |
| Mechanical characteristics: | |
| Operating force: | 30~250 gf.cmgf.cm |
| Click slip-out force (only Center Click) | |
| Operating force : | 40~300 gf.cm |
| Lever stop strength: | 5.0Kgf.cm(from the base level to a point of 2mm) |
| Lever wobble: | 2(2xL)/20mm Max.(L:Level length both sides) |
| Push-pull strength: | 3.0 Kgf Min. at 10sec. |
| Endurance characteristics: | |
| Rotary life: | 10000 Cycles |
1.Operating temperature range: -10℃~+7
2.Storage temperature
Company introduction
HongKong HongYu Electronics(technology)Co.,Ltd was established in 1996.With the rapid development of electronic industry in domestic of China ,HongYu Innovation Electronic Co.,Ltd.was set up in Huizhou in 2009.It is specialized in development,manufacture and selling products of potentiometer,encoder,and switch which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets ,the main clients are Siemens,Electrolux,A.O Smith, Budweiser and other famous international enterprises.
Viewing photos
Honours&certificates
What is the application of this part ?
Hongyu sliding potentiometer is Applied to :sound console,electronic musical instrument,car audio,industrial control,other instruments .
How to understand more of Hongyu products ?
Please check with our website of and two dimensional code as below.
